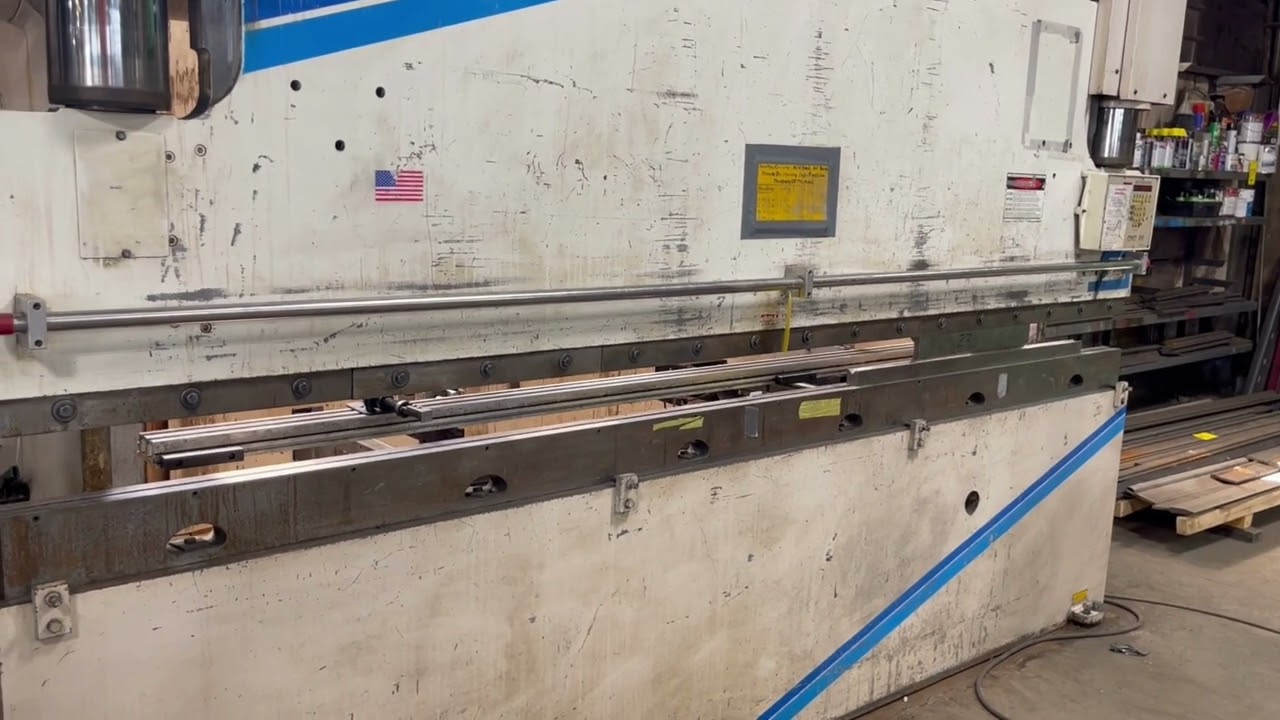

140 TON WYSONG #MTH 140-144 HYDRAULIC PRESS BRAKE

Request Quote Share Listing | Print Specs
Model: #MTH 140-144
Year: Not Specified
Stock #: 115818

Type: Brakes, Press

Manufacturer: WYSONG

Highlights: S/N MT5-1171997 SPECS AS PER NA,YYY +18% BP PO# EWR-7048 6/8/23 RA/BQ LOT#363 PRICE $36,500 FROM QUAKER CITY AUCTIONEERS LOCATION: GOING TO MANSFIELD

Specifications

Request Quote Share Listing | Print Specs

Equipped With

SERIAL: #MT5-117
MODEL: MTH140-144

CAPACITY: 140 TONS
OVERALL LENGTH OF BED & RAM: 144"
WIDTH OF BED: 5.5
DISTANCE BETWEEN HOUSING: 120"
STROKE: 8"
ADJUSTMENT: 9"
MAX DIE SPACE: 17"
THROAT: 7"

RAM SPEED APPROACH (HIGH SPEED): 300 IPM
RAM SPEED RETURN: 225 IPM
RAM PRESS DISTANCE (ADJUSTABLE): 1" TO 3"
BED TO FLOOR DISTANCE: 34"

OPERATING MODELS: SINGLE, INCH, AUTO
CENTRAL LUBE SYSTEM: YES, BIJUR
TONNAGE INDICATOR: YES
DUAL PLAM BUTTON CONTROL/FOOT OPERATING: YES
MOTOR: 15 HP
CNC99 AUTOGAUGE
2-AXIS
