Type: Slitters & Slitting Lines
Manufacturer: STAMCO
Highlights: BEMC S/N N/A AUCT LOT 33/34/35/37 SPECS PER GALAXIE/BE/MC 12/14/21 REVISED SPECS PER BE/BQ EMAIL 4/5/22 WARYYY (18%BP) J/V PO #EWR-6953 12/03/21 BEMC PRICE: $175,000 FROM : MILLER COMPANY THRU : GALAXIE CORP J/V : GALAXIE CORP
|
Stock #: 115153

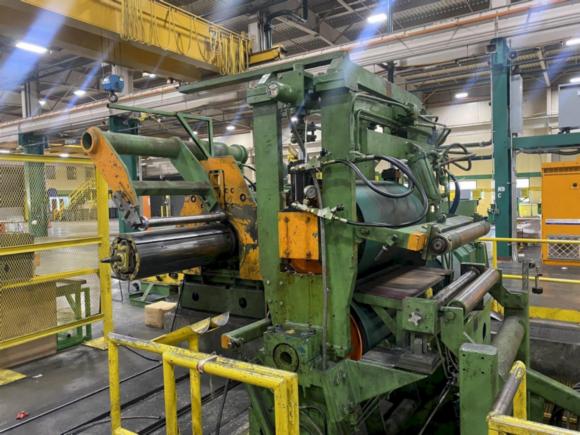

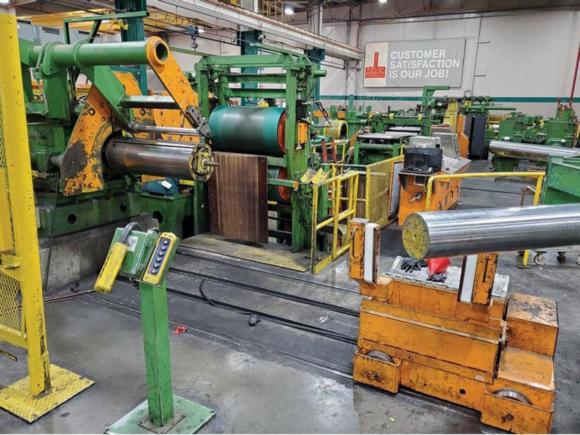

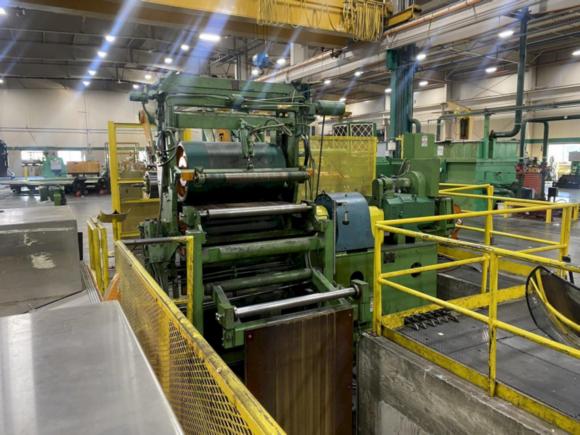

30" X 0.188" X 15,000 STAMCO INJECTOR HEAD SLITTING LINE
MANUFACTURER - STAMCO
COIL WIDTH - 7" - 30" (32" UNTRIMMED)
COIL WEIGHT - 15,000 LBS
ARBOR SIZE - 6.5"
COIL OD - 54" ENTRY/EXIT
SLITTING LINE GAUGE RANGE - 0.010" - 0.188"
BUTECH CHOPPER GAUGE RANGE - 0.070" - 0.150"
LINE SPEED - 1500 FPM
LINE DIRECTION - RIGHT HAND (EXCEPT FOR UNCOILER LEFT HAND)
ENTRY ID - 16"-20"
Exit ID - 12" & 20"
Entry Four Arm Turnstile
Entry L-Type Coil Car
Pro Eco Mandrel Uncoiler with Sliding Base & DC Drag Generator For Dynamic
Braking
Hold Down Roll Peeler
Crop Shear

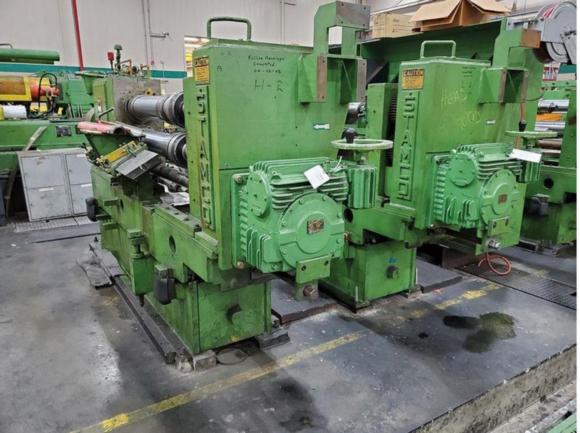

Two Injector Slitting Heads, 6.5" Arbor 100 HP DC Drive
Butech Rotary Scrap Choppers with Scrap Conveyor- 50 HP DC Drive (1999)
Goose Neck Conveyor
Shuttle Car for Slitter Head Extraction
Pit Cross Over Table
Looping Pit
Rotary Bridle Tension Stand
Recoiler, With 2 Interchangeable Drums
200 HP DC Drive
Overarm Separator
Exit Coil Car
8 Arm Exit Turnstile
Full Complement of Tooling, Knives, and Rubbers
