400 TON BLISS/MINSTER SL1-400-48 X 42 STRAIGHT SIDE LINK DRIVE PRESS

Request Quote Share Listing | Print Specs

Model: SL1-400-48 X 42

Year: Not Specified

Stock #: 115555

Type: Presses, Straight Side, Double Crank (Single Action)

Manufacturer: BLISS

Highlights: S/N EERY AUCT LOT 224 18% BP SPECS PER PO #EWR-7016 10/28/22 BE/MC PRICE: FROM : JLO METAL THRU : PERFECTION MACHINERY SALES J/V : G 2000 LOC : ONSITE

400 TON BLISS/MINSTER SL1-400-48 X 42 STRAIGHT SIDE LINK DRIVE PRESS

Specifications

Request Quote Share Listing | Print Specs

Equipped With

MANUFACTURER – BLISS (REBUILT BY MINSTER)

TYPE – LINK DRIVE W/ HYDRAULIC OVERLOAD

SERIAL NUMBER – B1-30145-1

TONNAGE – 400 TON

TONNAGE 4” UP – 350 TON

TONANGE 1” UP – 400 TON

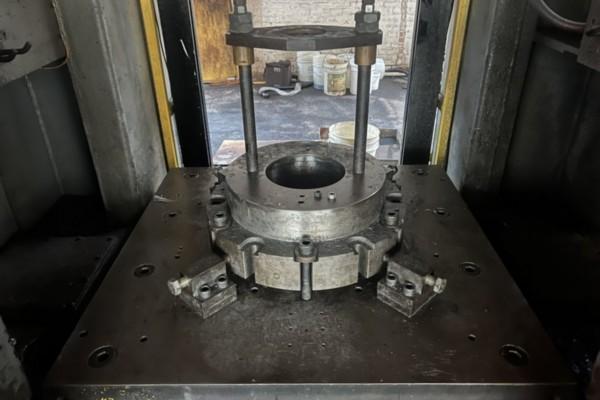

BED AREA – 48” X 42”

STROKE – 28”

SHUTHEIGHT – 54”

WORK STROKE – 4”

ADJUSTMENT- 10”

SPM – 14 - 20

SLIDE VELOCITY – 50 FPM @ 4” UP

MAIN MOTOR – 200 HP, 1200 RPM,

SLIDE ADJMENT MOTOR – 5 HP, 1800 RPM

TOTAL PRESS WEIGHT – 169,000#

APPROX. PRESS DIMENSIONS

OVERALL HEIGHT FROM FLOOR– 312” (26’)

DISTANCE TO BOTTOM OF EQUIPMENT- 101 ¾”

OVERALL WIDTH – 136”

INCLUDES:

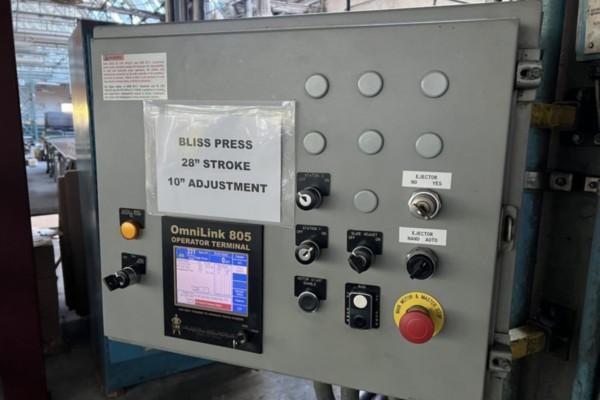

OMNI LINK 805 OPERATOR CONTROLS

OPERATORS STAND

30 HP HYDRAULIC POWER SUPPLY

AIR COUNTER BALANCE TANK
