Type: Slitters & Slitting Lines
Manufacturer: PRO-ECO
Highlights:
MANUFACTURER – PRO-ECO

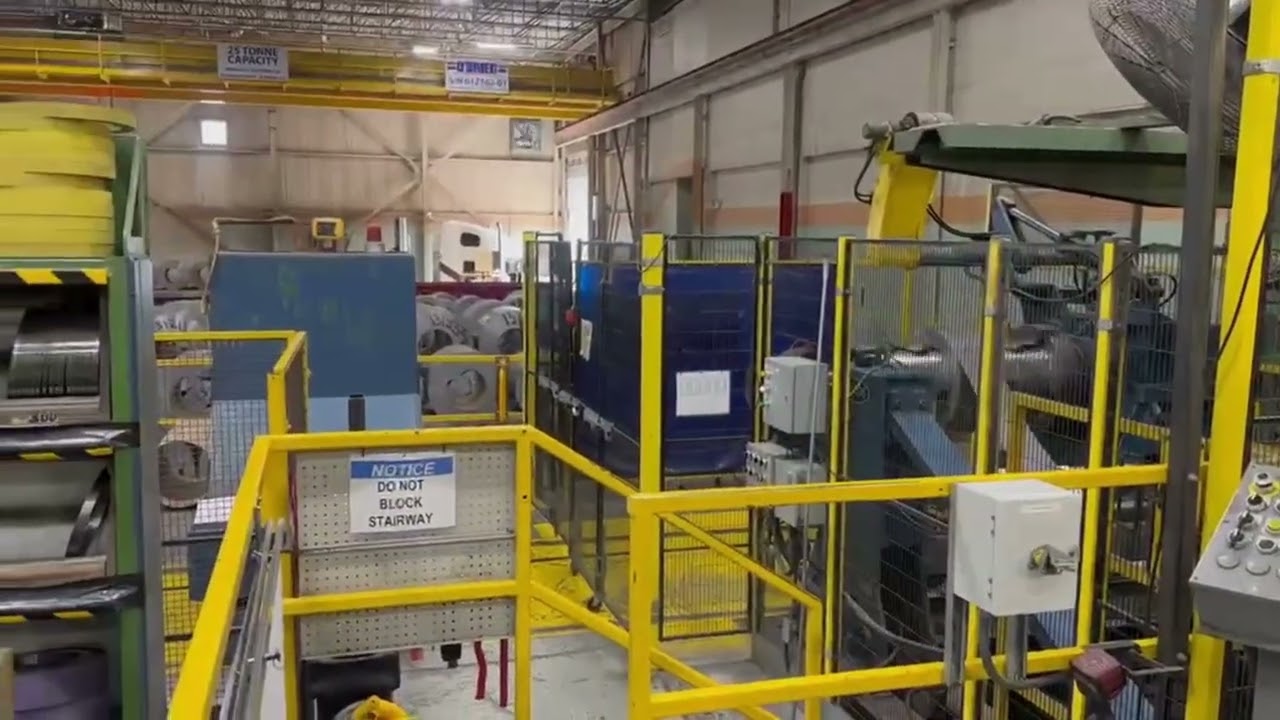

TYPE – PRECISION DOUBLE LOOP INJECTOR HEAD SLITTING LINE
MATERIAL – GRAIN ORIENTED, NON-GRAIN ORIENTED, SILICON STEEL, COLD ROLLED STEEL
SHEAR STRESS – 100,000 PSI – SILICON STEEL | 60,000 COLD ROLLED STEEL
MAX YIELD STRESS – 80,000 PSI
MIN YIELD STRESS – 30,000 PSI
MAX COIL WEIGHT – 50,000 LBS ENTRY/EXIT
MAX COIL WIDTH – 48” NOMIMAL (50” MAXIMUM) ENTRY/EXIT
MIN COIL WIDTH – 8” ENTRY / 1” EXIT
MAX COIL OD – 72” ENTRY / EXIT
MIN COIL OD - 36” ENTRY / EXIT
ENTRY COIL ID – 16” – 20”
EXIT COIL ID – 20”
MAX STRIP THICKNESS – 0.025” IN – SILICON STEEL / 0.050” CRS
MIN STRIP THICKNESS – 0.010”
ARBOR DIAMETER – 6.5”
NUMBER OF HEADS – TWO (2)
KNIFE DIAMETER – 10.5” MAX – 8.5” MIN
SHIMLESS TOOLING – YES
MAX CUTS - 32
LINE SPEED – 1200 FPM
UNCOILER MOTOR – 125 HP DC
SLITTER HEAD MOTOR – 100 HP DC
RECOILER MOTOR – 150 HP DC
ELECTRICAL – 575 V, 3 PH, 60 CYCLE
AIR SUPPLY – 80 PSI
LINE DIRECTION – LEFT TO RIGHT
MODE OF OPERATION – FULL LOOP DRIVE-SLIT, DOUBLE LOOP
LINE COMPONENTS:
L-TYPE ENTRY COIL CAR
MANDREL UNCOILER W/ OUTBOARD COIL SUPPORT & 8” HOLD-DOWN ROLL
AUTOMATIC CENTER GUIDE CONTROL UNIT
ENTRY PIT
PEELER TABLE
6” PINCH ROLL & SIDE GUIDE UNIT
ENTRY CROP SHEAR
SIDE GUIDES
INJECTOR SLITTING HEAD
BUTECH DUAL ARBOR MDL. SC135-1 SCRAP CHOPPERS
LOOPING PIT
PIT THREADING TABLE
TENSION PADS & 16” POLYURETHANE TENSION ROLLS STAND
SEPARATOR SHAFTS
EXIT CROP SHEAR
RECOILER WITH OVERARM SEPARATOR
L-TYPE EXIT COIL CAR
ALSO AVAILABLE:
INTEGRATED 10,000# X 72” PRO-ECO PACKAGAING LINE, INCLUDING:
EXIT 4-ARM TURNSTILE
10,000# DOWNENDER
WEIGHT SCALE UNDER SEMI-AUTOMATED BANDING LINE
5/8” STEEL BANDING
PICK AND PLACE STACKER
MAX CAPACITY 6000 LBS PER SLIT COIL
6-POSITION ROTATING TURNTABLE ASSEMBLY
EXIT CONVEYOR
SEMI-AUTOMATIC STRETCH WRAPPING MACHINE
WEIGHT STATION
CONTROLS, HYDRAULICS AND ELECTRICS FOR LINE
TOOLING, SPACERS, KNIVES
ELECTRICS
HYDRAULIC UNIT
OPERATORS CONTROL
|
Stock #: 117291
