Machine Information

60" (1650mm) x .250" (6mm) x 32 Ton Fagor Loop Slitting Line with 4 Arm Tooling Capstan (2008

Stock #: 116897

Equipped With

Manufacturer: Fagor Arrasate (Spain)
Year: 2008
Line Direction: Left to Right

Line Speed Range:
From 1mm (0.039") to 3mm ( .118").... 200mpm (656fpm)
From 3mm (.118") to 6mm (.250")......100pmp (328fpm)

Coil Width Range: 20" to 64"
Thickness Range 0.031" to .250"

Material Specifications:
Col Rolled Steel, Hot Rolled Steel, Pickled and Oiled Steel
Yield Strength: 600N/mm2
Shear Strength: : 450 N/mm2

Complete Line with the Following Components:

Entry Pit Type Coil Car
32 Ton Max Coil Weight

Mandrel Uncoiler
Coil ID: 24" to 29"
Coil OD: 31" to 82"
32 Ton Max Coil Weight
Hydraulic Expansion
Slidding Base
Powered Feed Up Drive

Peeler Table with Deflector Roll

Entry Crop Shear

Entry Double Sided Powered Edge Guides

Pinch Roll

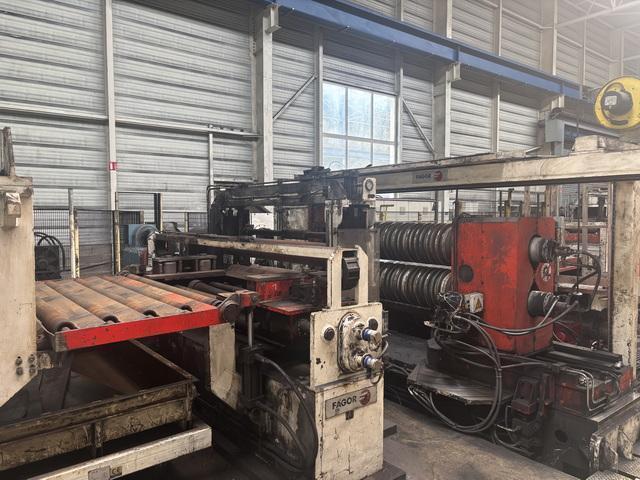

Slitting Head

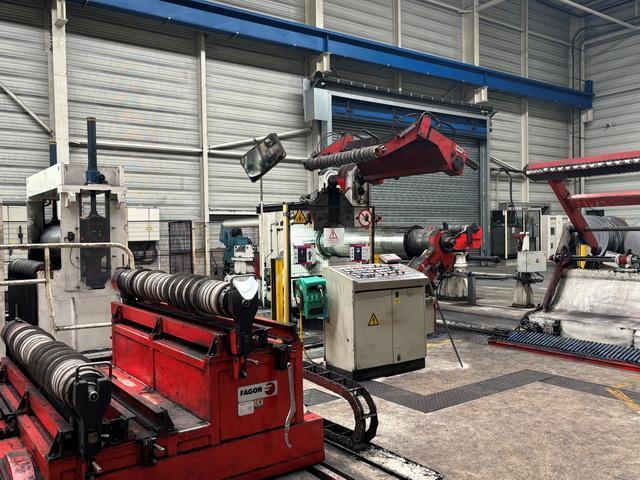

Four Arm Tooling Capstan
Hydraulic Tooling Push Off System
4 Arm Tooling Capstan

Cutting Chart:

Thickness.....No Cuts.....Speed
0.8mm................30.............200mpm
1mm...................28.............200mpm
1.5mm................24.............200mpm
2mm...................20.............200mpm
2.5mm................17.............200mpm
3mm...................14.............200mpm
4mm...................12.............100mpm
5mm...................10.............100mpm
6mm....................8..............100mpm

Scrap Choppers with Scrap Conveyors

Entry and Exit Cascade Rolls

Pit Cross Over Table

Exit Pass Line Roll

Exit Crop Shear

Tension Stand

Recoiler
32 Ton Max Coil Weight
Coil ID: 24" to 29"
Coil OD: 31" to 82"
Over Arm Separator
Full Hydraulic Drum
Outboard Bearing Support
Push Off Plate

Exit L-Type Coil Car
32 Ton Max Coil Weight
Coil Separators

Exit 4 Arm Turnstile
Motorized Rotation
Hydraulic Push Off Plate

Total Installed Power: 850KW approx.

Complete Line with Hydraulics, Electrics , Controls, Drawings

Installed. Video of Machine running available!!
