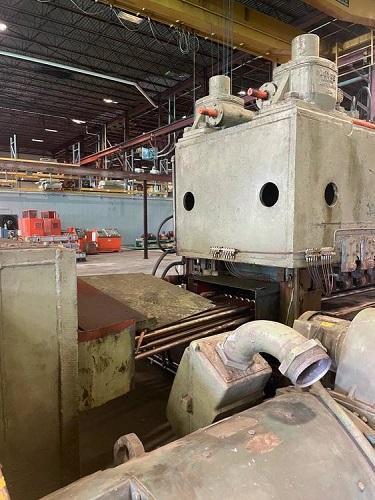

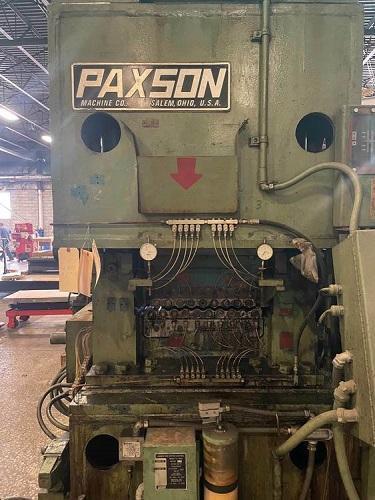

60" x 19 ROLL PAXSON 6HI PRECISION LEVELER

Request Quote Share Listing | Print Specs

Model: Not Specified

Year: Not Specified

Stock #: 116084

Manufacturer: PAXSON

Highlights: VX-LLC SILENT PARTNER 25% ASK BE S/N SPECS BE/BQ EMAIL 10/3/23 K,YYY JV PO# EWR-7072 10/3/23 PRICE$ FROM THRU MIDWEST MACHINERY J/V : MIDWEST 50% SILENT PARTNER VX-LLC

60" x 19 ROLL PAXSON 6HI PRECISION LEVELER

Specifications

Request Quote Share Listing | Print Specs

Equipped With

60" x 19 ROLL PAXSON 6HI PRECISION LEVELER

Make: Paxson
Material Width: 12" - 60"
Material Thickness: .015" - .075"
Work Rolls Width: 72"
Type: 6-Hi Precision Leveler
Number of Work Rolls: 19
Work Roll Diameter: 1.500"
Eight (8) Flights of Back Ups
Driven Entry Pinch Rolls
Motorized Open / Close
Adjustable Back Up Flights

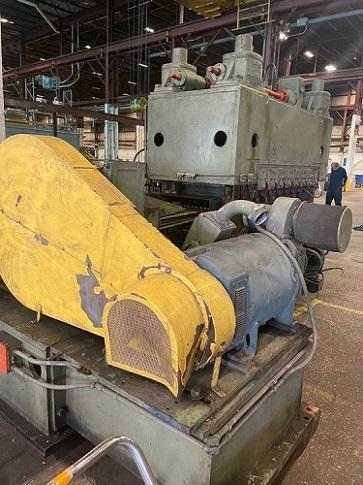

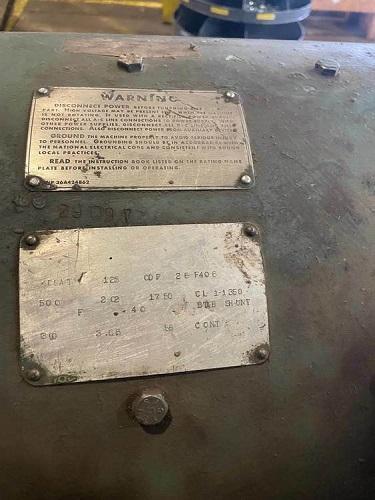

500 VDC, 125 HP, 1750 RPM DC Motor / Variable Speed
Gear Box with Universals

General Dimensions – 13’ 4” L x 7’ 10” W x 8’ 7” H

Approximate Weight – 37,990 lbs

Machine Information

60" x 19 ROLL PAXSON 6HI PRECISION LEVELER

Stock #: 116084

Equipped With

60" x 19 ROLL PAXSON 6HI PRECISION LEVELER


Make: Paxson
Material Width: 12" - 60"
Material Thickness: .015" - .075"
Work Rolls Width: 72"
Type: 6-Hi Precision Leveler
Number of Work Rolls: 19
Work Roll Diameter: 1.500"
Eight (8) Flights of Back Ups
Driven Entry Pinch Rolls
Motorized Open / Close
Adjustable Back Up Flights
500 VDC, 125 HP, 1750 RPM DC Motor / Variable Speed
Gear Box with Universals
General Dimensions – 13’ 4” L x 7’ 10” W x 8’ 7” H
Approximate Weight – 37,990 lbs
