Machine Information

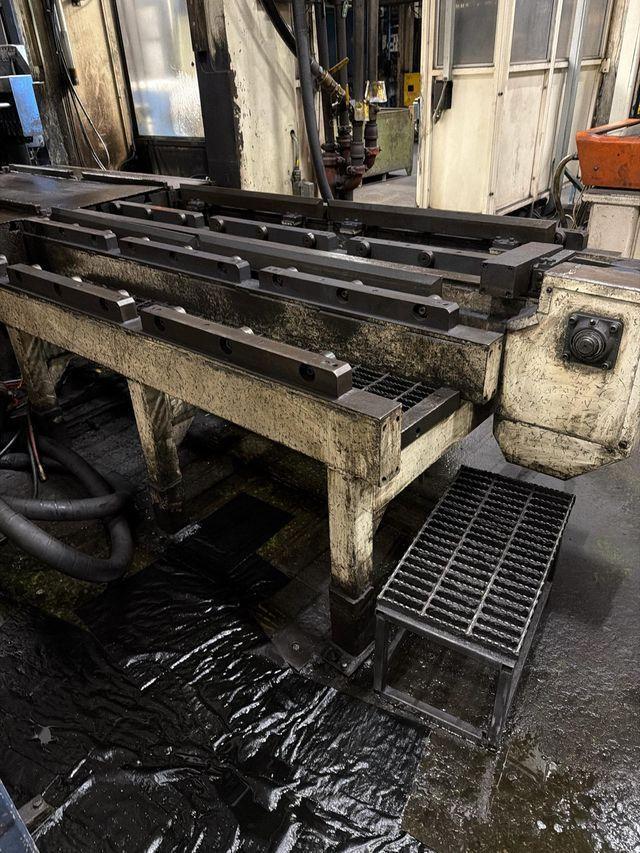

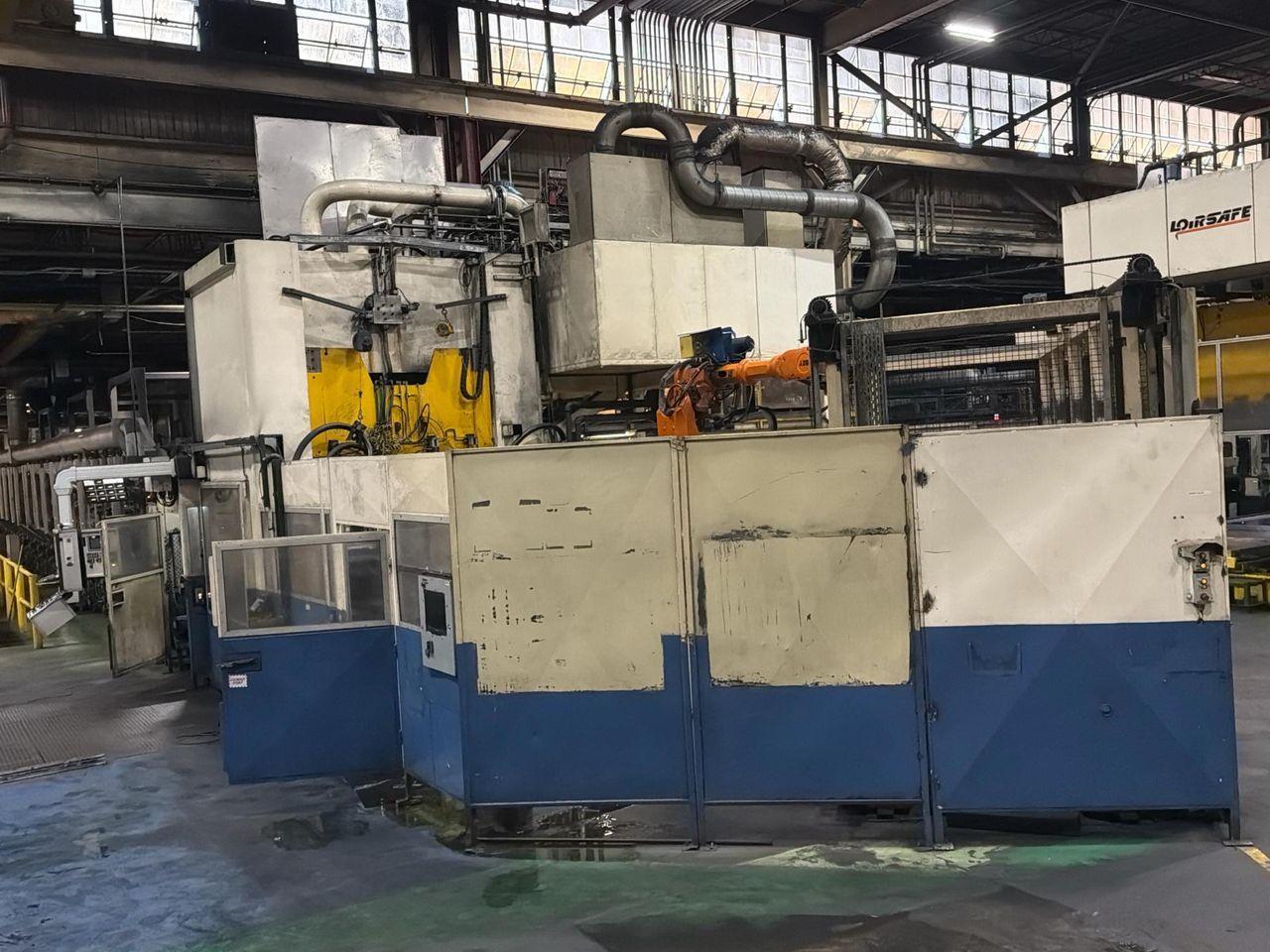

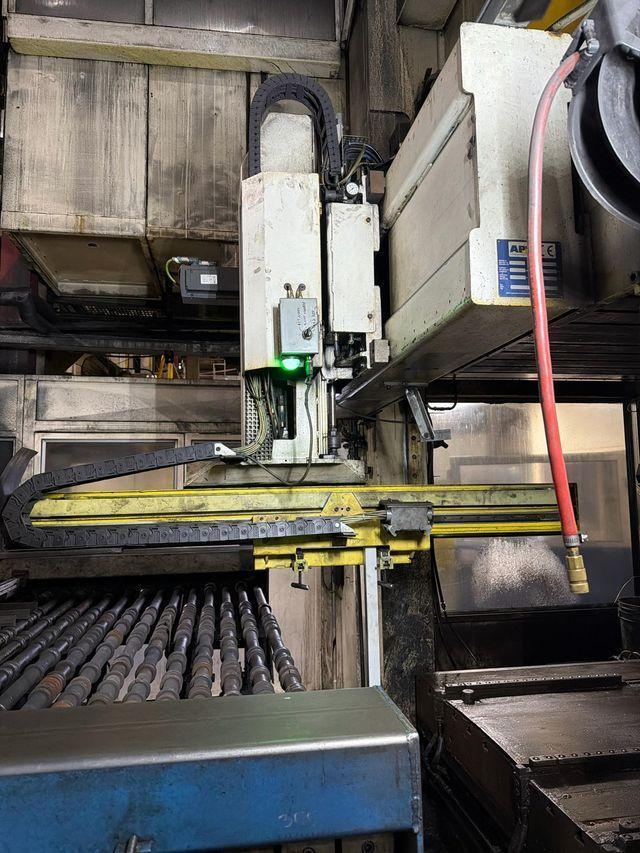

630 Ton, AP&T HOT STAMPING HYDRAULIC PRESS LINE w/SCHWARTZ ROLLER HEARTH FURNACE

Stock #: 117240

Equipped With

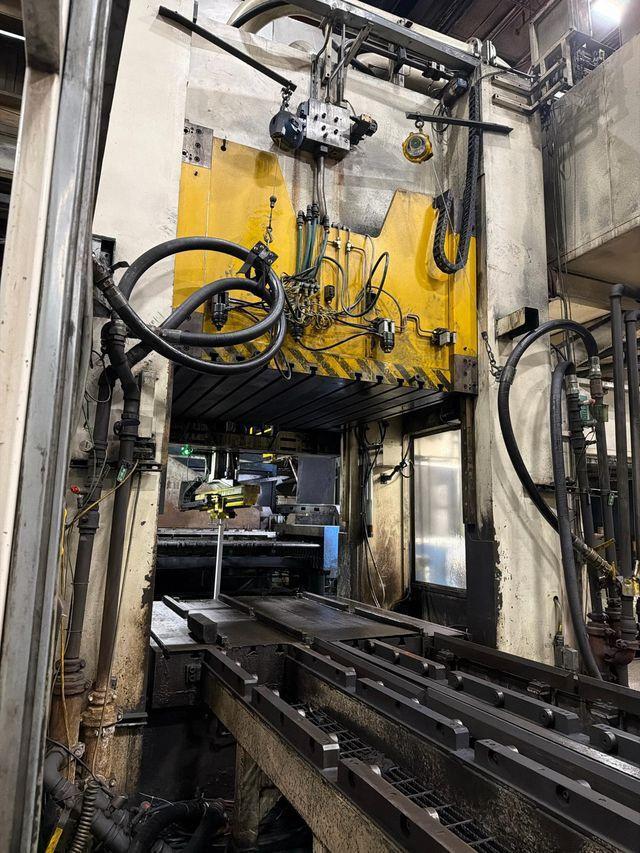

PRESS MANUFACTURER - AP&T

YEAR - 2005
MODEL NUMBER - ZL-63000-19/19
MFG NUMBER - P10895-1
TYPE - HOT STAMPING PRESS
CAPABILITY - DRAWING, COINING, STAMPING, & FORMING
PRESS FORCE - 6300 KN (630 TON)
PRESSURE ADJUSTMENT SAFETY VALVE - 34000 KPA
PRESSURE ADJUSTMENT COUNTER PRESSURE VALVE - 107000 KPA
PRESS SPEED - 27MM/S MIN - 230MM/S MAX
CLOSING SPEED - 600MM/S

RAM STROKE - 800MM
POWER SUPPLY INTERMITTENT - 206 KW
POWER SUPPLY RMS - 174 KW
MAX WEIGHT OF UPPER TOOL - 11000 KG
MAX OUT DIMENSION OF TOOL - 1900MM X 1900MM
STOPPING SPEED - 210 MS
BED - 28MM T-SLOTTS
APPROXIMATE PRESS WEIGHT - 57,500

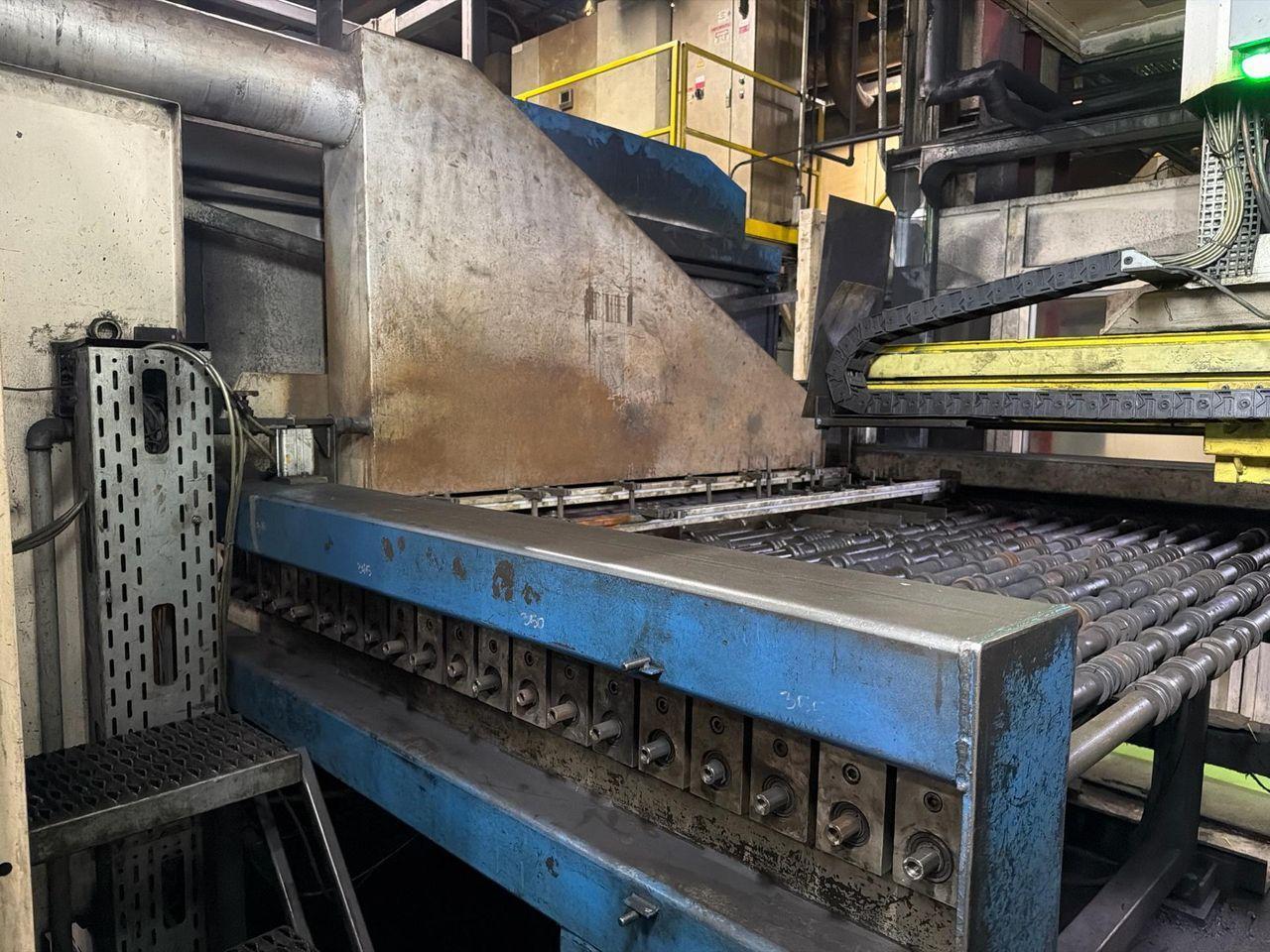

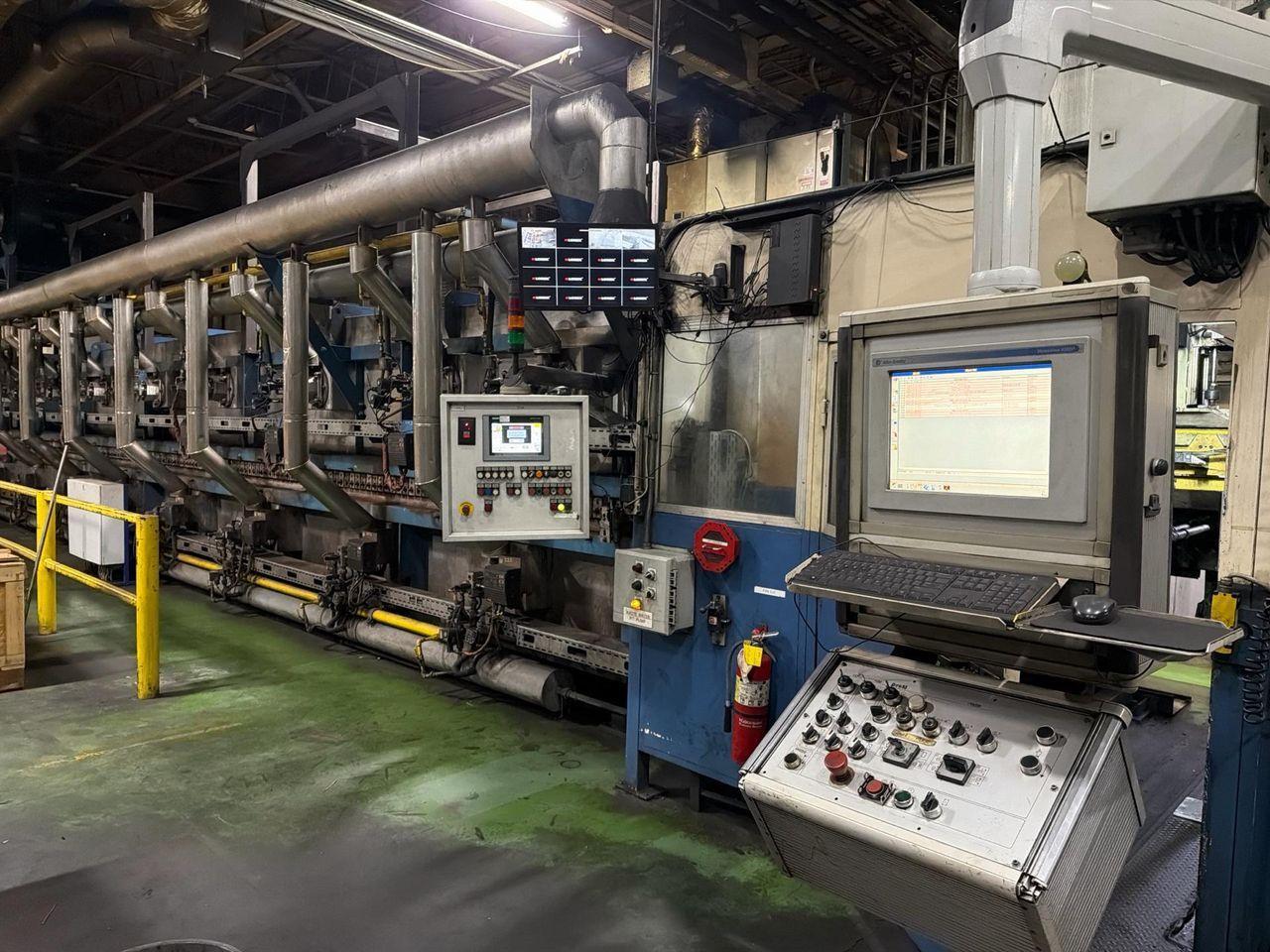

SCHWARTZ ROLLER HEARTH FURNACE

SERIAL NUMBER - GA-1596
MAXIMUM DEPARATURE - 950 DEGREES CELCIUS
ATMOSPHERE - NITROGEN/NATURAL GAS
HEATING ZONES - 11
TOTAL BURNERS - 32


FURANCE TEMPERATURE CONTROL - 7 ZONES
ROLLE TYPE (IN FURNACE) - HOLLOW CERAMIC TYPE
ROLLER TYPE (TRANSFER SECTION) -SOLID CERAMIC TYPE
APPROXIMATE NUMBER OF ROLLERS - 355
DIAMETER OF ROLLS - 60MM
PITCH OF ROLLS - 80MM
INSIDE FURNACE DIMENSIONS (APPROXIMATELY)
                LENGTH - 23,640MM (GAS FIRED SECTION)
                WIDTH - 1600MM
                HEIGHT - 130MM
OUTSIDE FURNACE DIMENSIONS (APPROXIMATELY)
                LENGTH - 28,600MM
                WIDTH - 3,880MM
                HEIGHT - 3,9880MM
HEATING SYSTEM - 32 BURNERS
                GAS BURNER 1x - 62 KW


                GAS BURNER 11x - 46 KW
                GAS BURNER 15x - 38 KW
                GAS BURNER 5x - 20 KW
VOLTAGE - 480 V, 3 PH, 60 CYCLE

ABB LOAD ROBOT - 6650/3.2-125 W/ S4C+M2000 CONTROL
ABB LOADOUT ROBOT - 6650/3.2-125 W/ S4C+M2000 CONTROL
