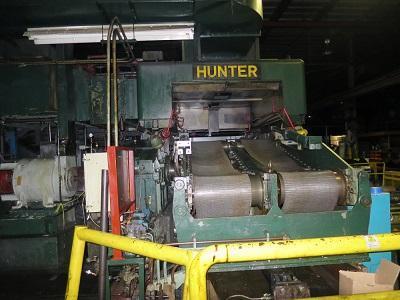

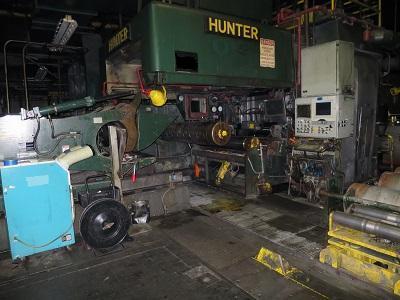

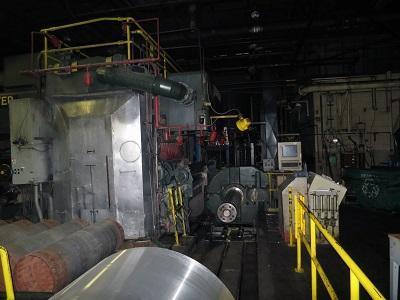

Type: Rolling Mills, 4-HI
Manufacturer: Not Specified
Highlights:
|
Stock #: 113236
GENERAL SPECIFICATIONS:
MANUFACTURER - HUNTER ENGINEERING
PRODUCT - ALUMINUM
GAUGE RANGE - .250" (6MM) - .006" (.15MM)
COIL WIDTH - 66" (1676MM) - 33" (838MM)
COIL DIAMETER - 55" (1,397MM) - 20" (508MM)
WORK ROLL DIAMETER - 15 _" (400MM)
WORK ROLL FACE - 80" (2032MM)
BACK-UP ROLL DIAMETER - 38" (965MM)
BACK-UP ROLL FACE - 74" (1879MM)
SCREWDOWN - ROLLER WEDGE TYPE
SCREWDOWN SPEED - " (6MM)/MINUTE @ 1800 RPM
MILL POST DIMENSIONS - 17" (431MM) X 21" (533MM)
MILL CONTROLS & OPERATORS CONTROLS - ALLEN BRADLEY
MILL ELECTRICS - EUROTHERM 590 LINK DC DRIVES
SHAPEMETER - REYCAN SHEETFORM 1700 W/ BRONER SHAPEMETER
MILL MOTORS:
MAIN MILL MOTOR - 1250 HP @ 400/1200 RPM
GEAR REDUCER & PINION STANDS - 1750 HP @ 400/1200 RPM
PAYOFF - (1) 100 HP @ 500/1600 RPM, (1) 200 HP @ 500/1600 RPM
REWIND - (1) 100 HP @ 500/1600 RPM, (1) 200 HP @ 500/1600 RPM
MILL SPEED:
0/150/451 FPM IN LOW GEAR RATIOS @ 0% REDUCTION
0/794/2383 FPM IN HIGH SPEED GEAT RATIOS @ 0% REDUCTION
0/157/474 FPM IN LOW SPEED GEAR RATIOS @ 5% EXTRUSION
0/794/2740 FPM IN HIGH SPEED GEAR RATIONS @ 5% EXTRUSION
MILL COMPONENTS
ENTRY INGROUND COIL CAR
240" HORIZONTAL TRAVEL
32" VERTICAL STROKE
MANDREL PAYOFF
18"-20 " ID X 76" FACE
ENTRY BRIDLE
10" X 72 " FACE
5 HP FEED ROLL MOTOR
5 BRIDLE ROLLS
STRIP GAUGE
MILL HOUSING
EXIT BREAKER ROLL
12 " X 73 " FACE
ROTARY EDGE TRIMMER
15 HP MOTOR, 400/2400 RPM
SCRAP CONVEYOR

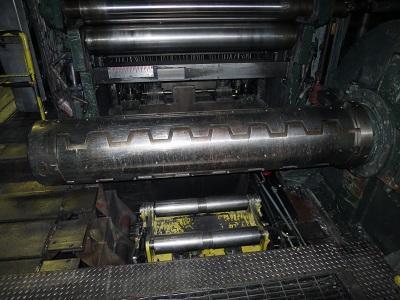

MANDREL REWIND
18"-20" id X 76" FACE
BELT WRAPPER
EXIT INGROUND COIL CAR
156" HORIZONTAL TRAVEL
22" VERTICAL STROKE
MILL COOLANT SYSTEM
MILL HYDRAULIC SYSTEM
MILL EXHAUST SYSTEM
SPARE WORK ROLLS, BACK-UP ROLLS AND SPARE PARTS
