69,000# / 207,000# PRO-ECO CROSS-BAY COIL TRANSFER CAR w/ THREE (3) COIL CAPACITY

Request Quote Share Listing | Print Specs

Model: Not Specified

Year: 1981

Stock #: 116182

Manufacturer: PRO-ECO

Highlights: S/N N/A SPECS BE/KS/MC 12/21/23 NYYYYY PKG P.O #EWR-7079 11/20/23 BE/MC PRICE: FROM : WORTHINGTON STEEL J/V : NONE LOC : ONSITE

69,000# / 207,000# PRO-ECO CROSS-BAY COIL TRANSFER CAR w/ THREE (3) COIL CAPACITY

Specifications

Request Quote Share Listing | Print Specs

Equipped With

Manufacturer: Pro-Eco

Number of Coils: Three (3) coils Max.

Individual Coil Weight: 69,000# (31,298 Kg) Max.

Total Transfer Car Capacity: 207,000# (93,894 Kg) Max.

Coil Width: 72” (1829 mm) Max.

Coil OD: 80” (2,032 mm) Max.

Coil Orientation: “V” Saddle / Coil ID parallel to car travel

Drive: Hydraulic gearmotor driving heavy-duty chain & sprocket - Power output 3 - 19hp
Distance between center of wheels: 40 1/2"
Wheel Diameter: 15"
Wheel width: 4 1/2"

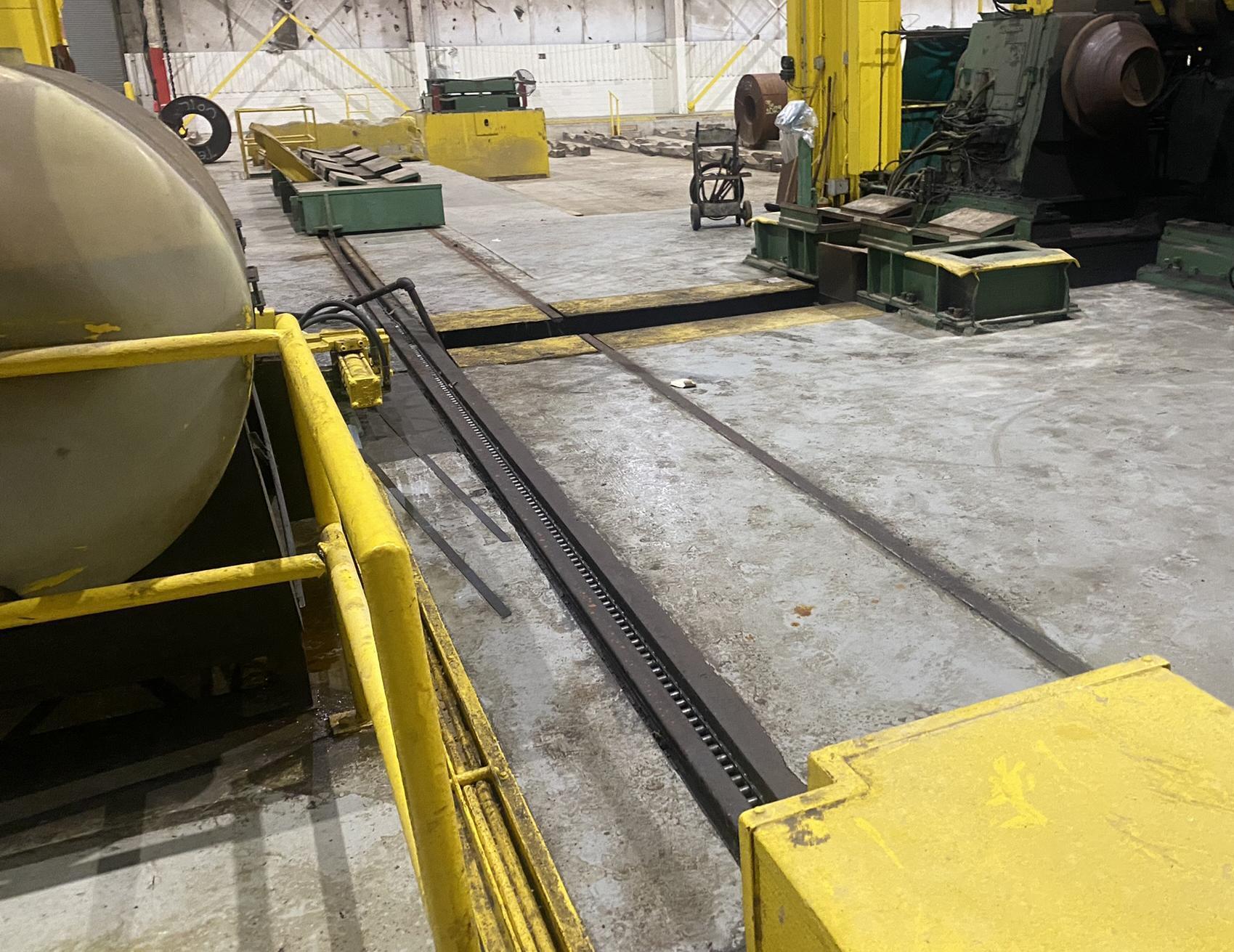

The transfer car moves coils from one bay to another

Structural steel frame supports coils on “V” shaped saddles

Car is positioned by hydraulic gearmotor driving a chain and sprocket assembly.

Embedded rails are not included and must be supplied by customer.

Machine Information

69,000# / 207,000# PRO-ECO CROSS-BAY COIL TRANSFER CAR w/ THREE (3) COIL CAPACITY

Stock #: 116182

Equipped With

Manufacturer:         Pro-Eco
Number of Coils: Three (3) coils Max.
Individual Coil Weight: 69,000# (31,298 Kg) Max.
Total Transfer Car Capacity: 207,000# (93,894 Kg) Max.
Coil Width:    72” (1829 mm) Max.
Coil OD:         80” (2,032 mm) Max.
Coil Orientation: “V” Saddle / Coil ID parallel to car travel
Drive: Hydraulic gearmotor driving heavy-duty chain & sprocket - Power output 3 - 19hp
Distance between center of wheels: 40 1/2"
Wheel Diameter: 15"
Wheel width:       4 1/2"

The transfer car moves coils from one bay to another
Structural steel frame supports coils on “V” shaped saddles
Car is positioned by hydraulic gearmotor driving a chain and sprocket assembly.

Embedded rails are not included and must be supplied by customer.
