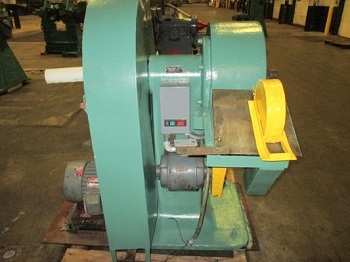

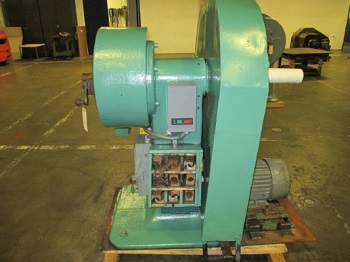

7/8" TORRINGTON # 6 2 DIE SWAGER

Request Quote Share Listing | Print Specs

Model: 6

Year: Not Specified

Stock #: 110088

Highlights: S/N 2045 MAN ST#10683 SPECS PER KARDEX 9/29/09 yo NYY PO#EWR-5972, BE/ch 8/19/09 MAN LOT #5383 PRICE: $ 5,000 FORMER BSP ST#50372/13466 FROM : TERRY PHILLIPS NOTE: LONG DIE MODEL J/V : MACHINERY INTERNATIONAL PER D.R.FAX TO B.E. 7/1/11 LOC : MANSFIELD, OHIO WARREHOUSE THIS IS A TORRINGTON # 6, NOT A MODEL #312.

Specifications

Request Quote Share Listing | Print Specs

Equipped With

MANUFACTURER: TORRINGTON

MODEL: 6 MODIFIED- THE DIE DIMENSIONS FOR THIS MACHINE
DO NOT MATCH THOSE OF A MODEL #6 ALTHOUGH OTHER
INDICATORS SHOW THE MACHINE TO BE A MODEL #6.

CAPACITY LISTED BELOW IS BASED ON THE EXISTING
DIE SIZE AND NOT ON CATALOG DIMESNIONS FOR A
MODEL #6.

CAPACITY: 1 1/4" (31.8mm)

LONGEST TAPER POSSIBLE: 6" (152.4mm)

DIE SIZE:
-WIDTH: 1 7/8" (47.6mm)
-HEIGHT: 1 1/4" (31.8mm)
-LENGTH: 6" (152.4mm)

MOTOR: 7 1/2 HP (5.6Kw) 1745 RPM AC MOTOR
208/230/460 VOLT 3 PHASE 60 HERTZ

NOTE: MACHINE IS EQUIPPED WITH A TRIM SAW

FLOOR SPACE: 45" L-R X 45" F-B X 53" HIGH

Machine Information

7/8" TORRINGTON # 6 2 DIE SWAGER

Stock #: 110088

Equipped With



 MANUFACTURER:                TORRINGTON



 MODEL:                       6 MODIFIED- THE DIE DIMENSIONS FOR THIS MACHINE

                              DO NOT MATCH THOSE OF A MODEL #6 ALTHOUGH OTHER

                              INDICATORS SHOW THE MACHINE TO BE A MODEL #6.



                              CAPACITY LISTED BELOW IS BASED ON THE EXISTING

                              DIE SIZE AND NOT ON CATALOG DIMESNIONS FOR A

                              MODEL #6.



 CAPACITY:                    1 1/4" (31.8mm)



 LONGEST TAPER POSSIBLE:      6" (152.4mm)



 DIE SIZE:

  -WIDTH:                     1 7/8" (47.6mm)

  -HEIGHT:                    1 1/4" (31.8mm)

  -LENGTH:                    6" (152.4mm)



 MOTOR:                        7 1/2 HP (5.6Kw) 1745 RPM AC MOTOR

                              208/230/460 VOLT 3 PHASE 60 HERTZ



 NOTE: MACHINE IS EQUIPPED WITH A TRIM SAW



 FLOOR SPACE:                 45" L-R X 45" F-B X 53" HIGH
