Machine Information

72" x .135" x 40,000# WYSONG/HERR VOSS CUT TO LENGTH LINE

Stock #: 116321

Equipped With

72" x .135" x 40,000# WYSONG/HERR VOSS CUT TO LENGTH LINE


Make: Herr Voss - Wysong
Material: CR, HR, Stainless, Aluminum
Material Width: 12" - 72"
Material Thickness: .030" - .135" (-030 - .187" @ 60")
Weight Capacity: 40,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Direction: L-R
Speed: 200 feet per minute

Entry L-Type Coil Car
Make: Sauer
Hydraulic Lift & Traverse
Self Contained Hydraulics
Control Panel

Mandrel Uncoiler
Make: Wean
Powered Hold Down Roll
Sliding Base
Pneumatic Brake
Feed Up Motor

Hydraulic Peeling Table
Driven Entry Pinch Rolls


Herr Voss 6-Hi Precision Leveler
Year New: 1999
Model: VKL-84/2.187/19/7/6-Hi
Work Rolls Width: 84"


Work Rolls Diameter: 2.187"
Number of Work Rolls: 19
Motor: 150HP DC Drive
Inc Jet Coder

Adjustable Hump Table
Size: 75" x 12'
PVC Paper with Static Charge Bar

Wysong High Speed Shear
Model: HS-625-RKB
Capacity: 72" x .250"
Air Clutch & Brake
40HP AC Motor

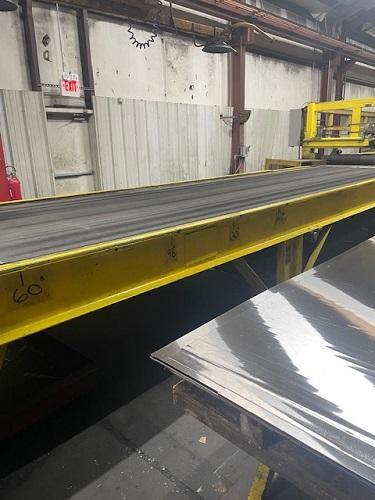

Driven 25' Belt Conveyor


Sheet Stacker
72" x 25' Capacity
Weight: 4,000Lbs
Portable Scissor Table
Two (2) Run Out Chain Pallet Conveyors
Side Discharge Chaine Pallet Conveyor

Electrics, Hydraulics, Controls, Spare Parts
