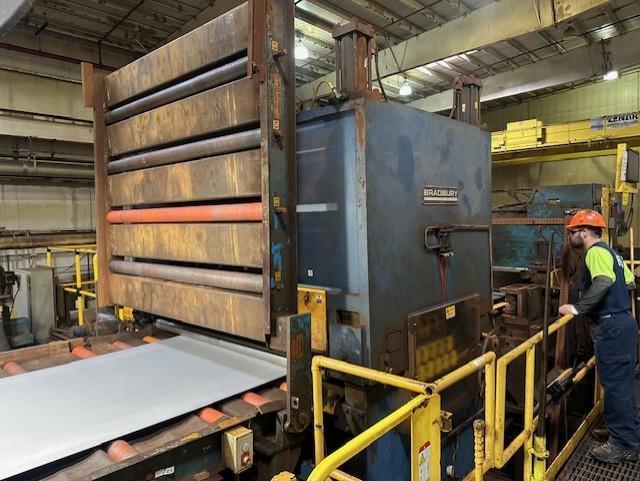

72" x .250" BRADBURY 11 ROLL, 4HI AUTO-SELECTIVE PULL-THRU LEVELER

Request Quote Share Listing | Print Specs

Model: Not Specified

Year: 2011

Stock #: 117123

Type: Levelers

Manufacturer: Not Specified

Highlights:

72" x .250" BRADBURY 11 ROLL, 4HI AUTO-SELECTIVE PULL-THRU LEVELER

Specifications

Request Quote Share Listing | Print Specs

Equipped With

MANUFACTURER - BRADBURY

YEAR - 2011

TYPE - PULL THRU HYDRAULIC LEVELER

MATERIAL - HOT ROLLED PICKLED

MAX CAPACITY - 72" X 0.250" @ 65,000 PSI - GRADE 50

MIN CAPACITY - 36" X 0.105" @ 65,000 PSI, 36" X 0.075" @ 50,000 PSI

NUMBER OF WORK ROLLS - 11

WORK ROLL CONFIGURATION - 5 OVER 6

WORK ROLL SIZES - 4" DIAMETER X 96" FACE

BACK UP FLIGHTS - 7 TOP, 7 BOTTOM

TOTAL LEVELING FORCE - 1,050,000 LBS

DRIVE - PULL THRU

PASS LINE HEIGHT - 60"

INTERMEDIATE ROLLS - 4HI

LINE DIRECTION - LEFT TO RIGHT

INCLUDES:

TRAVERSING BASE ALLOWS OFFLINE STORAGE WHEN NOT IN USE

Hydraulic Unit
