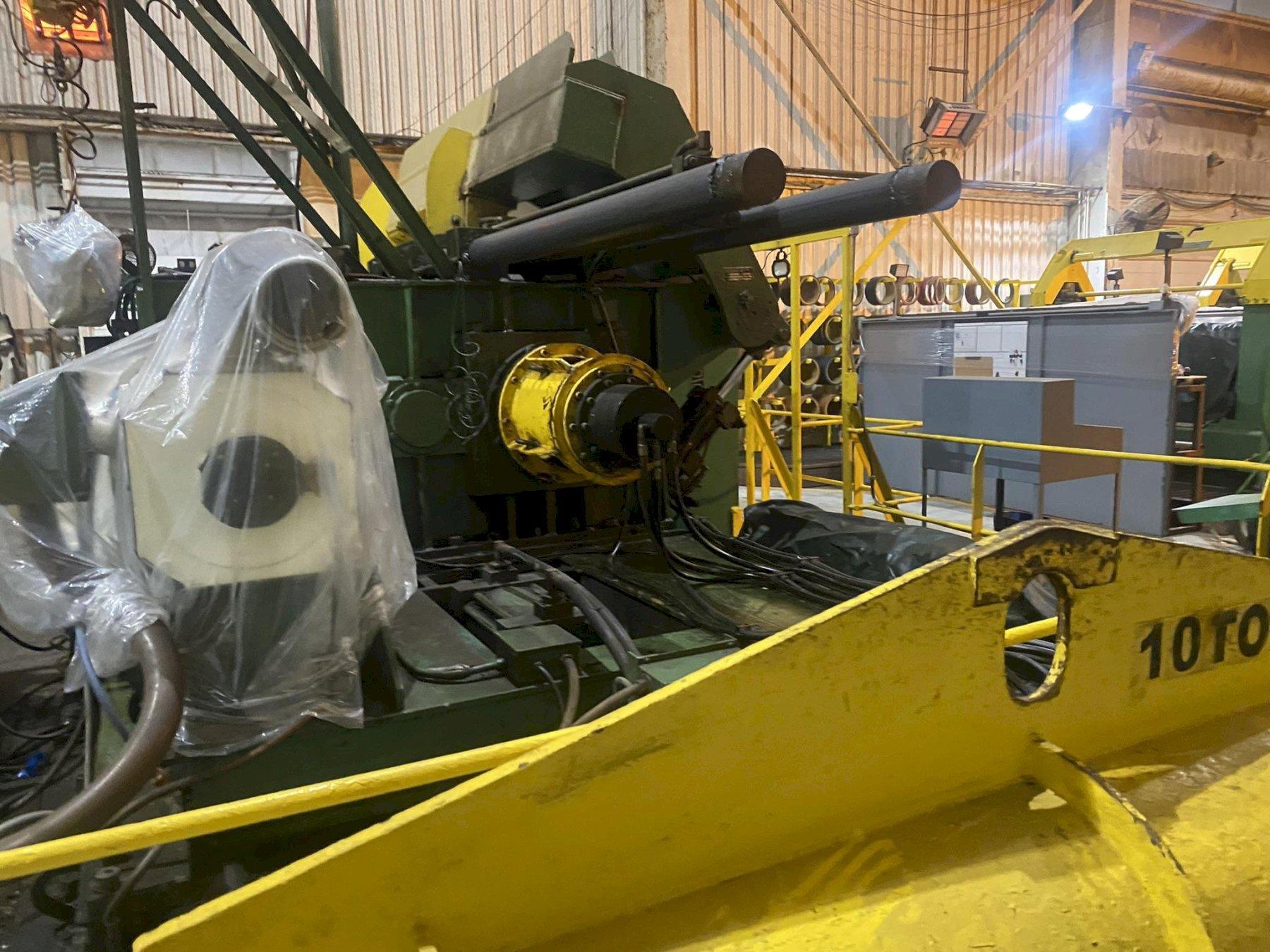

72" x .500" x 69,000# PRO-ECO RECOILER WITH SLIDE BASE, TWO (2) QUICK-CHANGE "QUILL-TYPE" DRUMS, OVERARM SEPARATOR & COIL PUSHER ASSEMBLY

Request Quote Share Listing | Print Specs
Model: Not Specified
Year: Not Specified
Stock #: 116221

Type: Recoilers

Manufacturer: PRO-ECO

Highlights: S/N N/A SPECS BE/KS/MC 12/21/23 NYYYYY PKG P.O #EWR-7079 11/20/23 BE/MC PRICE: FROM : WORTHINGTON STEEL J/V : NONE LOC : ONSITE

72" x .500" x 69,000# PRO-ECO RECOILER WITH SLIDE BASE, TWO (2) QUICK-CHANGE "QUILL-TYPE" DRUMS, OVERARM SEPARATOR & COIL PUSHER ASSEMBLY
72" x .500" x 69,000# PRO-ECO RECOILER WITH SLIDE BASE, TWO (2) QUICK-CHANGE "QUILL-TYPE" DRUMS, OVERARM SEPARATOR & COIL PUSHER ASSEMBLY
  • 72" x .500" x 69,000# PRO-ECO RECOILER WITH SLIDE BASE, TWO (2) QUICK-CHANGE "QUILL-TYPE" DRUMS, OVERARM SEPARATOR & COIL PUSHER ASSEMBLY
  • 72" x .500" x 69,000# PRO-ECO RECOILER WITH SLIDE BASE, TWO (2) QUICK-CHANGE "QUILL-TYPE" DRUMS, OVERARM SEPARATOR & COIL PUSHER ASSEMBLY

Specifications

Request Quote Share Listing | Print Specs

Equipped With

Manufacturer: Pro-Eco
Line Direction: Right to Left
Recoiler Drive:  200 HP (147 Kw) DC, w/ Two Speed Gearbox
Line Speed: 150 FPM (46 MPM) Max. in Low Gear
300 FPM (91 MPM) Max. in High Gear
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)

Coil Width: 72" (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.
Coil Weight: 69,000# (31,298 Kg) Max. on 24" (610 mm) drum
50,000# (22,680 Kg) Max. on 20" (508 mm) drum
Coil OD: 76" (1930 mm) Max.
Coil ID: 20" (508 mm) and 24" (610 mm) Quill Type Drums

The recoiler grips and recoils multiple strips of material
Heavy duty slide base supports a two-speed, parallel shaft gearbox

Gearbox includes a hollow bore, tapered sleeve riding in precision bearings

Tapered sleeve supports quick-change "quill-type" drum and shaft assemblies

Drums expand and collapse by rotating hydraulic cylinder

Heavy-duty overarm separator assembly guides slit strands winding on the recoiler drum

Overarm spindles are supported in a cantilever frame

Heavy-duty coil pusher assists pushing coils off the recoiler

The recoiler motor and gearbox are included.
