Type: Coil Feed Lines
Manufacturer: SESCO
Highlights: S/N SPECS AS PER BE/BQ EMAIL 6/09/25 AR,YYY JV PO#EWR-7193 BE/BQ 6/10/25 PRICE FROM: PRODUCTION PRODUCTS INC. THRU: NIDEC CHS J/V NID 33% & TOL 33%
|
Stock #: 116906

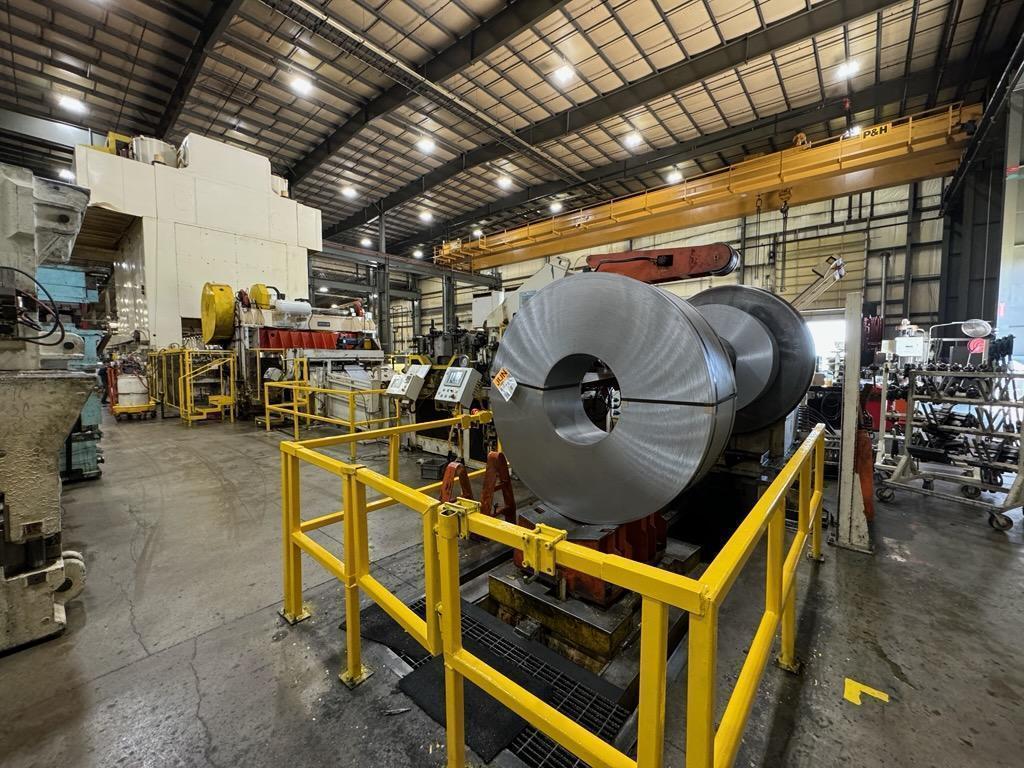

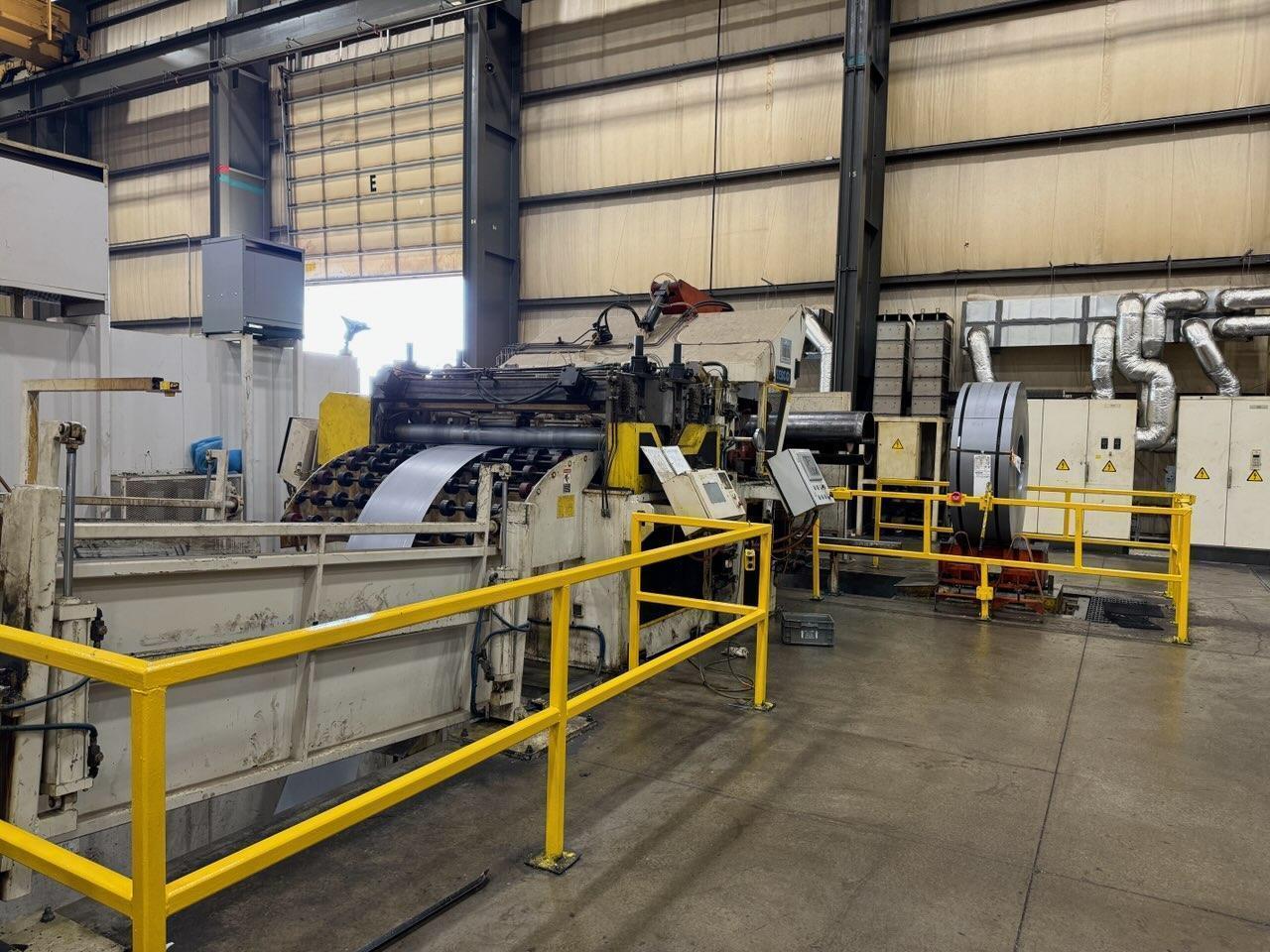

72" x 60,000 SESCO COIL FEED LINESESCO CONVENTIONAL COMPLETE COIL FEED LINE SPECIFICATIONS:COIL WEIGHT CAPACITY: 60,000 LBCOIL WIDTH CAPACITY: 72"STOCK THICKNESS CAPACITY: .125" X 72" WIDEEXPANSION RANGE: 22" - 26"COIL O.D. CAPACITY: 72"SESCO CONVENTIONAL COMPLETE COIL FEED LINE EQUIPMENT AND FEATURES:SESCO TRAVELING COIL REEL AND TRAVELING COIL LOAD CARTRAVERSING COIL REEL BASETHREE LEAF MANDREL WITH COIL KEEPER ARMSHYDRAULIC MANDREL EXPANSIONAIR BRAKE MOUNTED ON MAIN SPINDLEADJUSTABLE TENSIONINGTHREADING DRIVE FOR JOG FORWARD AND REVERSETRAVERSING COIL LOAD CARPOWER LIFT AND TRAVELNARROW COIL SUPPORTSCOIL STORAGE RACKSESCO PEELER, THREADER, HOLD DOWN ARM STATIONSTAND ALONE PTH STATIONHYDRAULIC HOLD DOWN ARM RAISE AND LOWERHYDRAULIC HOLD DOWN ARM MOTORIZED END WHEELHYDRAULIC PEELER TABLE RAISE AND LOWERHYDRAULIC PEELER TABLE SPADE EXTENSIONSESCO POWERED COIL STRAIGHTENERENTRY AND EXIT PINCH ROLL ASSEMBLIES X 6" DIAMETERAIR OPERATED UPPER PINCH ROLL ADJUSTMENTSEVEN POWERED STRAIGHTENER ROLLS X 3" DIAMETERBANK TYPE UPPER STRAIGHTENING ROLL ADJUSTMENTS VIA SCREW JACKSADJUSTABLE STOCK WIDTH EDGE GUIDESDUAL FLIGHTS OF UPPER AND LOWER STRAIGHTENER ROLL BACK UPSEXIT CASCADE LOOP SUPPORT ROLLERSVARIABLE SPEED DRIVEOPERATOR'S CONTROL STATIONAUTO / RUN CYCLESESCO DUAL EXIT THREADING TABLEBOMB BAY DOOR DESIGNSESCO SERVO ROLL FEEDAIR OPERATED UPPER SERVO FEED ROLL ADJUSTMENT / PILOTENTRY SIDE CASCADE MATERIAL SUPPORT SECTIONSELF CENTERING DUAL ROLL STOCK WIDTH EDGE GUIDESSOLENOID CONTROLLED PILOT RELEASEAIR PRESSURE/REGULATORCABINET BASE MOUNTED W/ ADJUSTABLE PASS LINE HEIGHT
