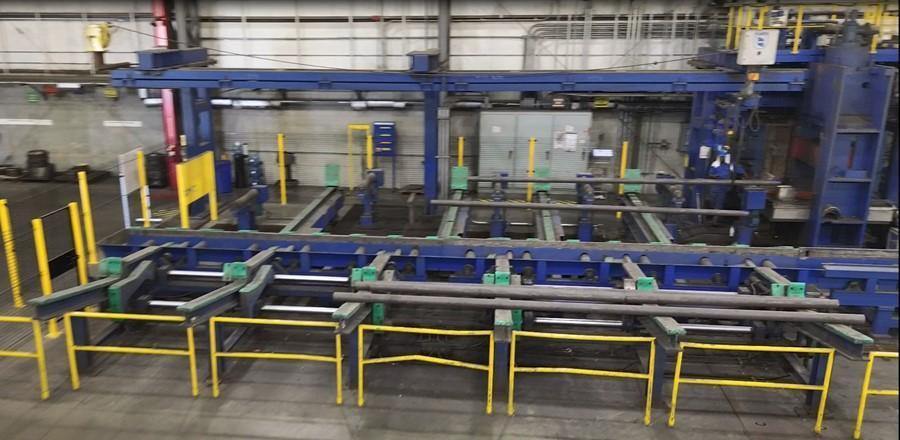

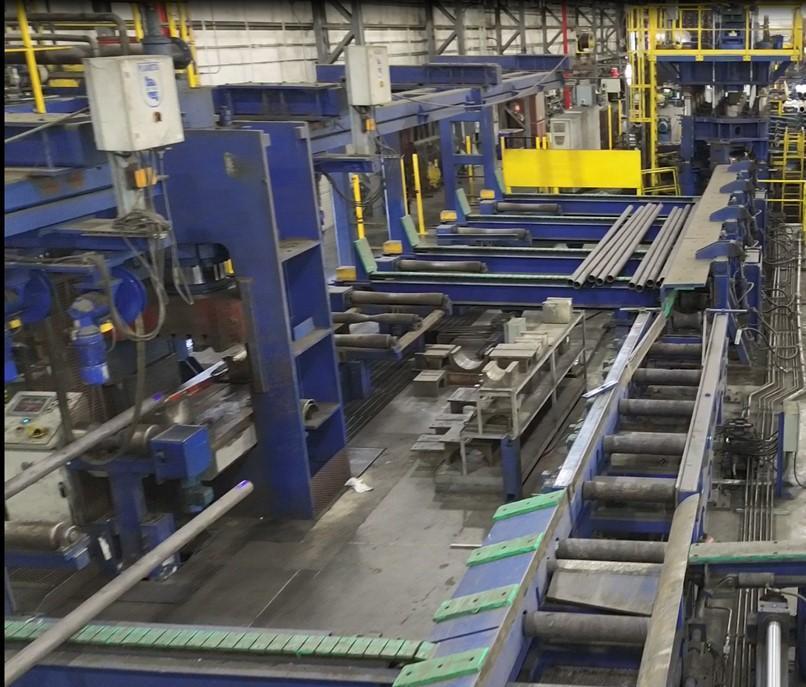

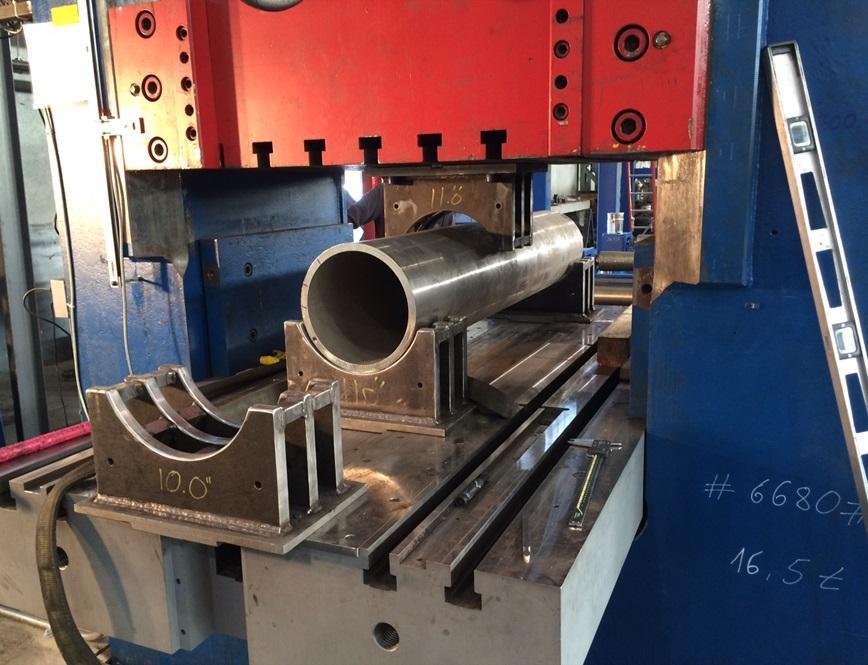

800 TON SXP HYDRAULIC STRAIGHTENING PRESS

Request Quote Share Listing | Print Specs

Model: Not Specified

Year: Not Specified

Stock #: 116534

Type: Presses, Straightening

Manufacturer: Not Specified

Highlights:

800 TON SXP HYDRAULIC STRAIGHTENING PRESS

Specifications

Request Quote Share Listing | Print Specs

Equipped With

MANUFACTURER - SXP

TYPE - HYDRAULIC STRAIGHTENING PRESS

INSTALLED - 2013

TONNAGE - 800 TON

PISTON BORE DIAMETER - 570MM

ROD DIAMETER - 510MM

STROKE - 670MM

PRESSURE - 315 BAR

OIL FLOW - 440 IPM

BORE SIDE TIME - 23 SECONDS

TIME ROD SIDE - 4.6 SECONDS

BORE SIDE VELOCITY - 0.0287 M/S

RODE SIDE VELOCITY - 0.144 M/S

Machine Information

800 TON SXP HYDRAULIC STRAIGHTENING PRESS

Stock #: 116534

Equipped With

MANUFACTURER - SXP
TYPE - HYDRAULIC STRAIGHTENING PRESS
INSTALLED - 2013

TONNAGE - 800 TON
PISTON BORE DIAMETER - 570MM
ROD DIAMETER - 510MM
STROKE - 670MM
PRESSURE - 315 BAR
OIL FLOW - 440 IPM
BORE SIDE TIME - 23 SECONDS
TIME ROD SIDE - 4.6 SECONDS
BORE SIDE VELOCITY - 0.0287 M/S
RODE SIDE VELOCITY - 0.144 M/S
