Machine Information

DYNOBEND #DB60SL U-TUBE BENDER

Stock #: 116724

Equipped With

DYNOBEND #DB60SL U-TUBE BENDER

BRAND:               DYNOBEND
MODEL:               DB 60 SL
NEW APPROX.:         2011

TECHNICAL SPECIFICATION
MAX. DIAMETER OF TUBE ( 1.251 ")  31.75 MM
MAX. BENDING RADIUS   ( 47.28 ")   1200 MM

COMPLETE LINE FOR U-TUBES THAT ARE PRIMARILY USED FOR LARGE HEAT EXCHANGERS
THE LINE IS PRODUCING A COMPLETE SET OF U-TUBES OF DIFFERENT RADIUS BENDS FOR A HEAT EXCHANGER, PREPARED AS A BUNDLE.

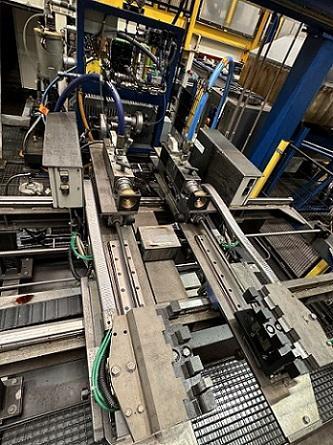

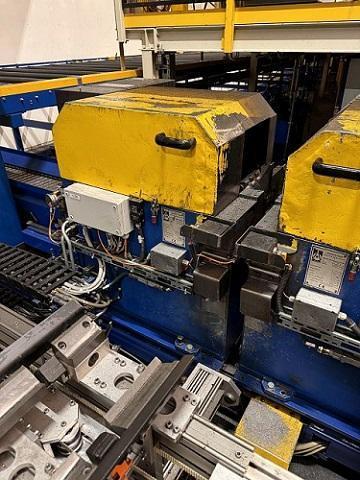

- BENDING MACHINE MANUFACTURER: DYNOBEND DB60SL
MAX. PRIMARY MATERIAL TUBE LENGTH: 25.000 MM
MIN. BENDING RADIUS: 10XD
MAX. BENDING RADIUS: 1.200 MM
MIN. LEG LENGTH: 3.000MM
MAX. LEG LENGTH: 11.600MM
MIN. OD: 15MM
MAX. OD: 31,75MM
CAMERA SEPARATION SYSTEM

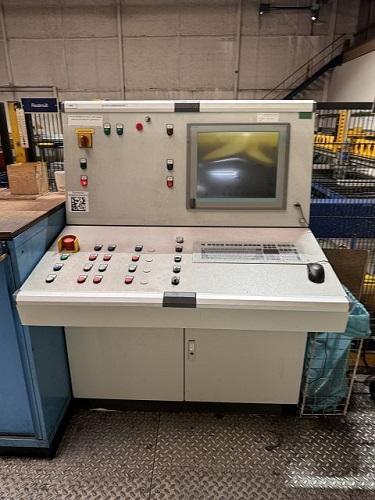

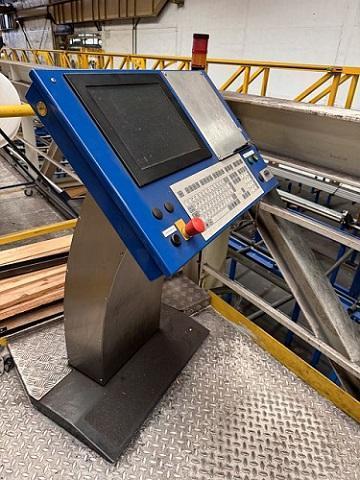

CONTROL SYSTEM: BECKHOFF
BENDING TOOL SET: 8 BENDING ROLLS
AVAILABLE TOOL SETS FOR OD: 15 MM, 15.88 MM, 16 - 18 MM, 19.05 MM, 20 MM, 22 - 23 MM, 25 MM, 25.4 MM, 31.75 MM
BYPASS SYSTEM FOR BENDING AND ANNEALING SMALLER RADIUS <10XD

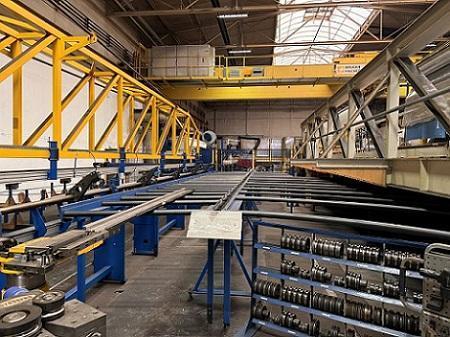

TRANSPORT WITH STROTHMANN PORTAL

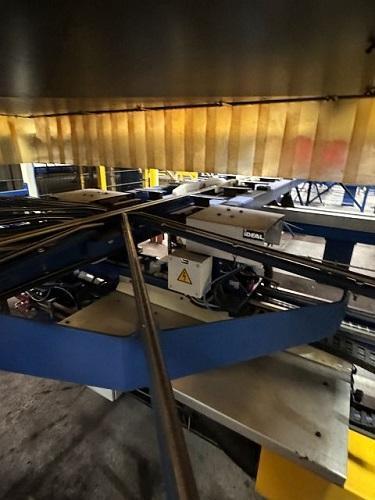

- RESISTANCE ANEALING MACHINE MANUFACTURER IDEAL-WERK WER300
TEMPERATUR CONTROL: PYROMETER
HOLDING TIME: 5 SEC
ANNEALING UNDER PROTECTIVE GAS ATMOSPHERE BY FILLING THE TUBE WITH NITROGEN GAS

- HYDROSTATIC TEST, 2 STATIONS
PRESSURE: MAX. 700 BAR
HIGH PRESSURE PUMPS HAMMELMANN
HOLDING TIME: MAX. 10 SEC
TEST MEDIUM: DEMINERALIZED WATER AND ADDITIVES
FILTERING SYSTEM FOR THE TEST MEDIUM

- CIRCULAR SAWING MACHINE
SAW BLADE: 315 X 2.5 X 50 MM
ROTATING DEBURRING WITH STEEL BRUSHES
