Machine Information

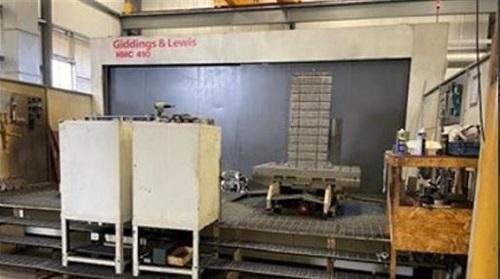

GIDDINGS & LEWIS 410 CNC HORIZONTAL MACHINING CENTER W/ 63" X 49" PALLETS

Stock #: 116938

Equipped With

GIDDINGS & LEWIS 410 CNC HORIZONTAL MACHINING CENTER W/ 63" X 49" PALLETS

FEATURES:
100 STATION AUTOMATIC TOOL CHANGER
2-PALLET SHUTTLE 62.99" X 49.21"
THRU-SPINDLE COOLANT
LINEAR SCALES
FANUC 16M CNC CONTROL

SPECIFICATIONS:
X-AXIS, CROSS TRAVEL OF PALLET 129.92"
Y-AXIS, VERTICAL HEAD TRAVEL 82.67"
Z-AXIS, COLUMN INFEED 78.74"
B-AXIS, PALLET ROTATION 360,000
SPINDLE TAPER ANSI B5.50

PALLET SIZE 62.99" X 49.21"
NUMBER OF PALLETS 2
MAXIMUM SWING OF IN LOAD AREA 118.11"
PALLET WEIGHT CAPACITY 15,430 LBS
FEED RATES ALL AXES .001-630 IPM
RAPID TRAVERSE ALL AXES 1260 IPM
SPINDLE SPEEDS, INFINITELY VARIABLE 30-6000 RPM
MAXIMUM ROTATABLE PART SIZE 118.11"

EQUIPPED WITH:
FANUC 16IM 4-AXIS CNC CONTROL

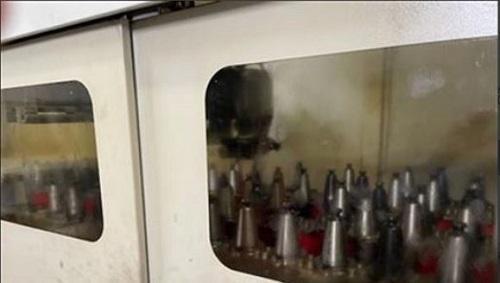

120 STATION AUTOMATIC TOOL CHANGER
PALLET SHUTTLE CHANGER
THRU-SPINDLE COOLANT, 70 BAR,(1015 PSI)
PAPER FILTRATION
LINEAR SCALES ALL AXIS


RENISHAW PART PROBE
CHIP CONVEYER
50 HP/60 HP AC SPINDLE MOTOR
