Machine Information

MCKAY 72" x .187" x 20,000Lbs MCKAY CTL LINE

Stock #: 116818

Equipped With

MCKAY 72" x .187" x 20,000Lbs MCKAY CTL LINE

SPECIFICATIONS:

MAKE: MCKAY
MATERIAL WIDTH: 14" - 72"
MATERIAL THICKNESS: .020" - .187"
COIL WEIGHT: 20,000LBS
COIL ID: 16" - 24"
COIL OD: 72"
LINE SPEED: 150 FEET PER MINUTE
DIRECTION: LEFT TO RIGHT

ENTRY COIL CAR

V-TYPE FLOOR STANDING TYPE

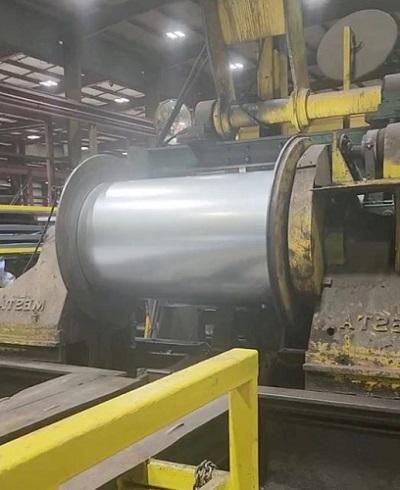

DUAL CONE UNCOILER
MAKE: MESTA
SELF - STANDING POWERED HOLD - DOWN ROLL
HYDRAULIC PEELING TABLE
SLIDING BASE
FEED UP MOTOR

DRIVEN ENTRY PINCH ROLLS
EDGE GUIDING ROLLS

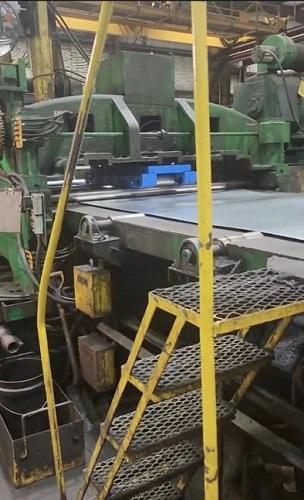

MCKAY 4-HI LEVELER
NUMBER OF WORK ROLLS: 15
WORK ROLLS DIAMETER: 3.750"
ENTRY PINCH ROLLS


EXIT COATED PINCH ROLLS
UP AND DOWN BACK UP FLIGHTS
POWERED ROLLS ADJUSTMENT
MOTOR: 125HP DC

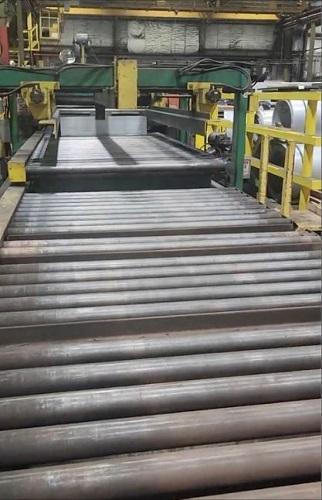

MOTORIZED BELT CONVEYOR
LENGTH MEASURING ROLL

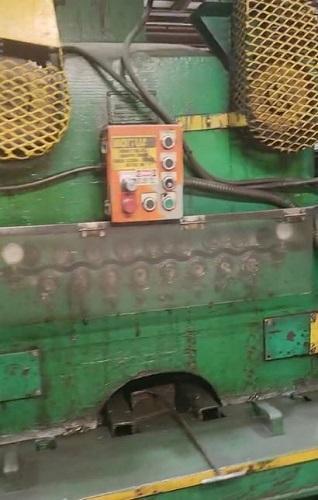

MECHANICAL SHEAR
AIR CLUTCH AND BRAKE
MOTOR: 10HP
THICKNESS CAPACITY: 1/4"
MOTORIZED EXIT BELT CONVEYOR

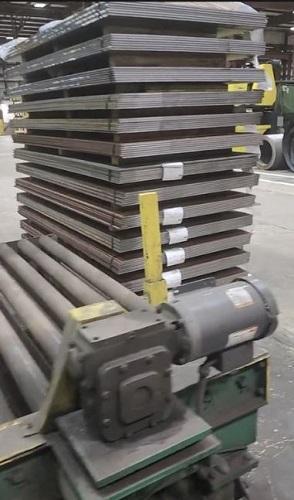

SHEET STACKER
SHEET LENGTH: 14'
AIR STACKING SYSTEM

DRIVEN STACKING CONVEYOR
DRIVEN END CONVEYOR

ELECTRICS, HYDRAULICS, CONTROLS, SPARE PARTS
