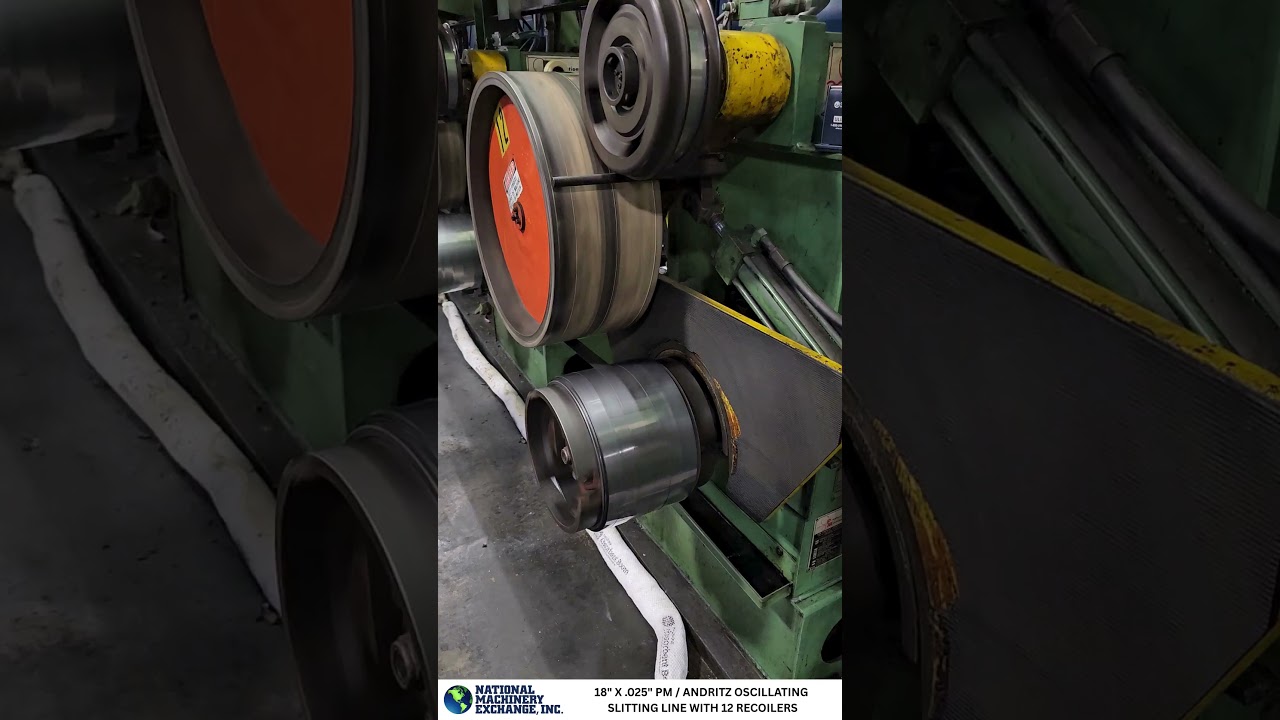

18" X .025" PM / ANDRITZ OSCILLATING SLITTING LINE WITH 12 RECOILERS

Request Quote Share Listing | Print Specs

Model: Not Specified

Year: Not Specified

Stock #: 117238

Highlights: S/N 653230 SPECS PER NYYYYY P.O #EWR-7238 04/16/26 BE/MC PRICE: FROM : STANLEY BLACK & DECKER THRU : DECOSMO INDUSTRIAL AUCT J/V : GALAXIE CORP 50% LOC : ONSITE

18" X .025" PM / ANDRITZ OSCILLATING SLITTING LINE WITH 12 RECOILERS

Equipped With

Material: 1095 High Carbon Steel

Tensile Strength: 120,000 PSI

Shear Strength: 96,000 PSI

Thickness Range: .0045" - .025"

Line Direction: Left to Right

Cut Width & Thickness

.0045" = 1/4" , 3/8" , 1/2" , 3/4" , 1"

.0051" = 3/8" , 1/2" , 5/8" , 7/8"

.0062" = 3/8"

Line Speed: 1500 FPM

Entry Strip Width: 18'

Traverse Wider Coil Width: 8"

Entry Coil ID: 15" - 22"

Traverse Winder Coil ID: 11"

Exit Coil ID: 16"

Entry Coil OD: 54"

Ribbon Wound Coil OD: 39"

Exit Coil OD: 54"

Entry & Exit Coil Weight: 10,000#

Traverse Winder Coil Weight: 2250#`

Complete Line With:

Mandrel Uncoiler

Hold Down Roll

3 Leaf Hydraulic Expansion

15 HP Drive

Disc Drake

Edge Control Unit

Peeler Table / Deflector Roll

Newcor Strip Welder with Planishing

2 Roll Material: 1095 High Carbon Steel

Tensile Strength: 120,000 PSI

Shear Strength: 96,000 PSI

Thickness Range: .0045" - .025"

Line Direction: Left to Right

Cut Width & Thickness

.0045" = 1/4" , 3/8" , 1/2" , 3/4" , 1"

.0051" = 3/8" , 1/2" , 5/8" , 7/8"

.0062" = 3/8"

Line Speed: 1500 FPM

Entry Strip Width: 18'

Traverse Wider Coil Width: 8"

Entry Coil ID: 15" - 22"

Traverse Winder Coil ID: 11"

Exit Coil ID: 16"

Entry Coil OD: 54"

Ribbon Wound Coil OD: 39"

Exit Coil OD: 54"

Entry & Exit Coil Weight: 10,000#

Traverse Winder Coil Weight: 2250#`

Complete Line With:

Mandrel Uncoiler

Hold Down Roll

3 Leaf Hydraulic Expansion

Sliding Base

15 HP Motor

Disc Brake

Edge Control

Peeler Table / Deflector Roll

Newcor Strip Welder with Planishing

2 Roll Bridal Unit for Tension Control

Double Roll Tracking Roll for Strip Alignment

2 Sets of Rubber Coated Deflector Rolls

Edge Guides

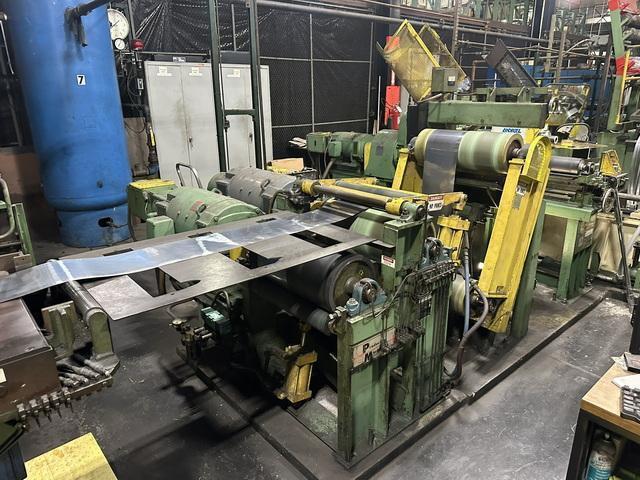

Andritz Slitter Head

New in 2016

5" Diameter Arbors

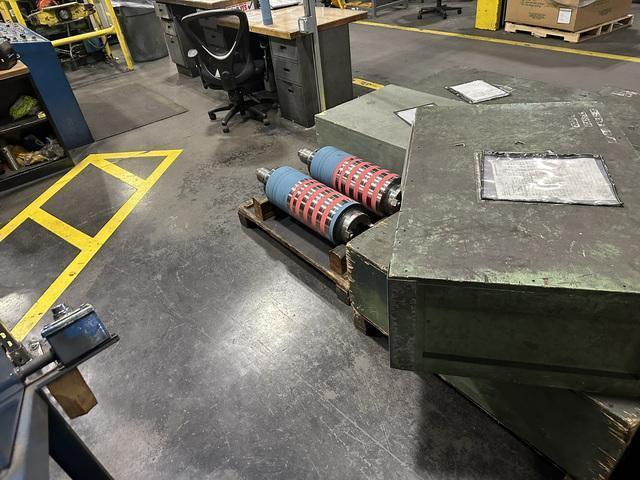

12 Sets of Quick Change Tooling Arbors

Pre-Packed Arbors

Shimless Tooling

Anti Friction Bearings

25 HP DC Drive, 1750/2000 RPM

Scrap Baller

Recoiler

16" Diameter Drum

10,000# Coil Capacity

30 HP DC Drive

Hydraulic Push-Off

Hold Down Roll

21" Drum Face

1 Arm Exit Turnstile

Vertical Strand Separator

Aligns Strips after Exiting the Slitter

Deflector Rolls

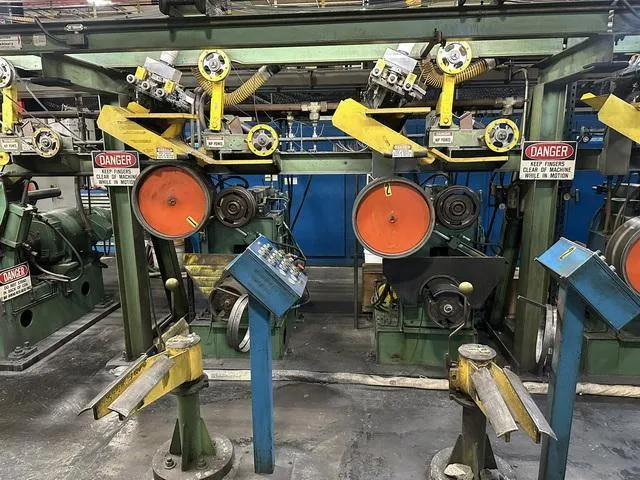

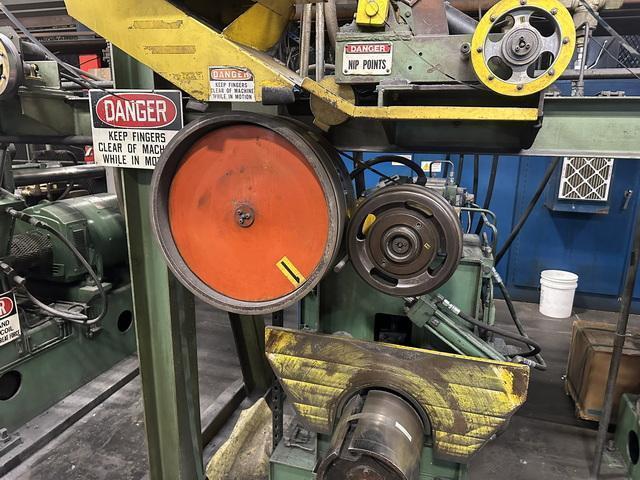

12 Oscillating Recoilers

11" Diameter Drums

Hydraulic Push-Off

Vertical Edge Conditioners

S Bridal Strip Tension Rolls (2)

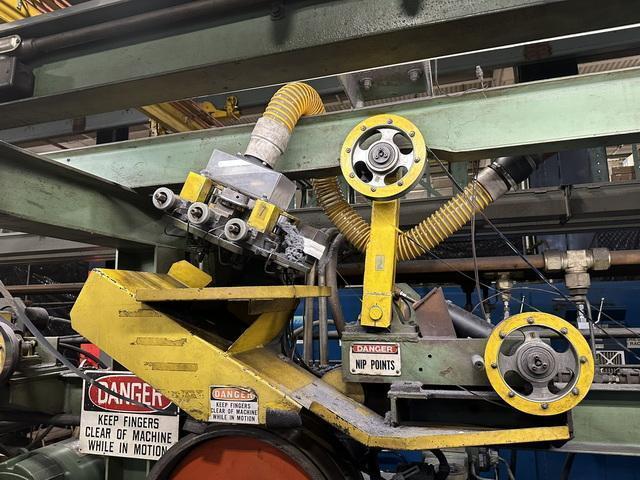

Hydraulic Traversing Oscillating Wheel

7.5 HP Drive

1 Arm Exit Turnstiles

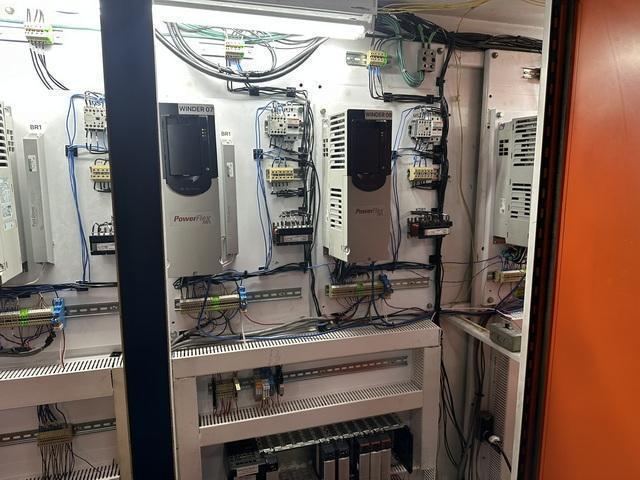

Powerflex Digital Drives 755

Allen Bradley PLC

Digital Drives

Digital Readouts

Central Hydraulic Units

Operator Push Button Stations

Slitter Tooling

Hydraulics & Electrics
