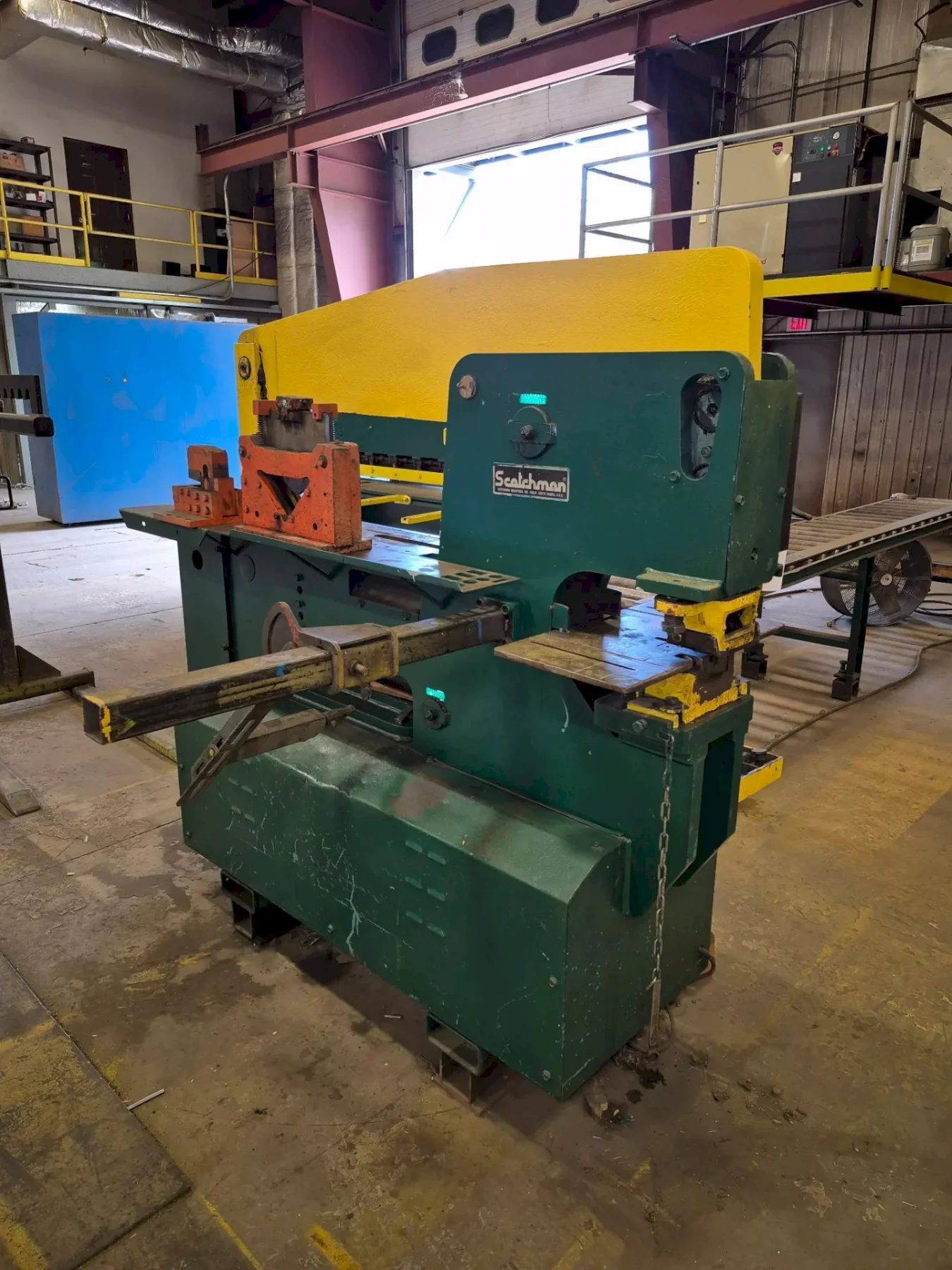

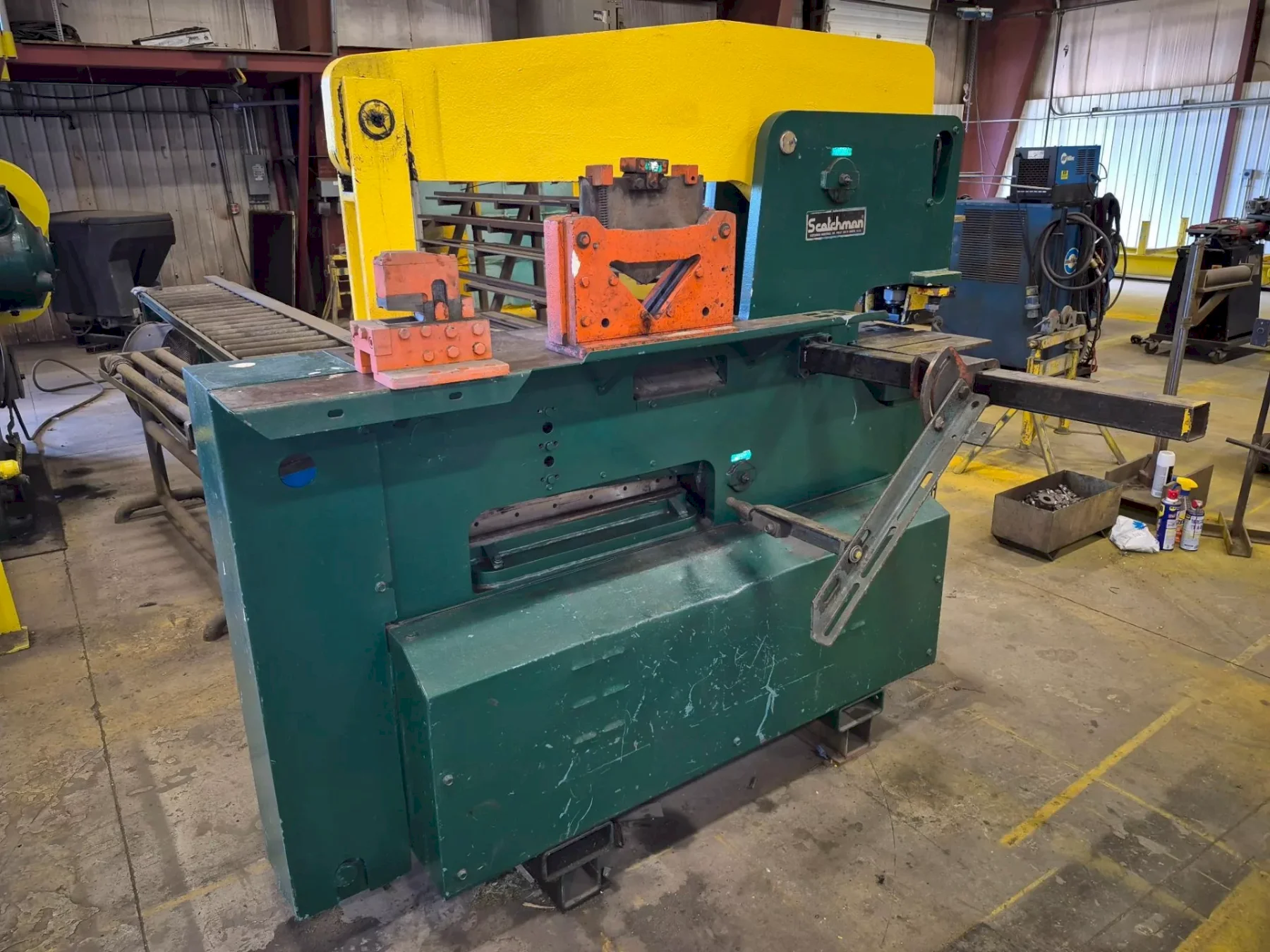

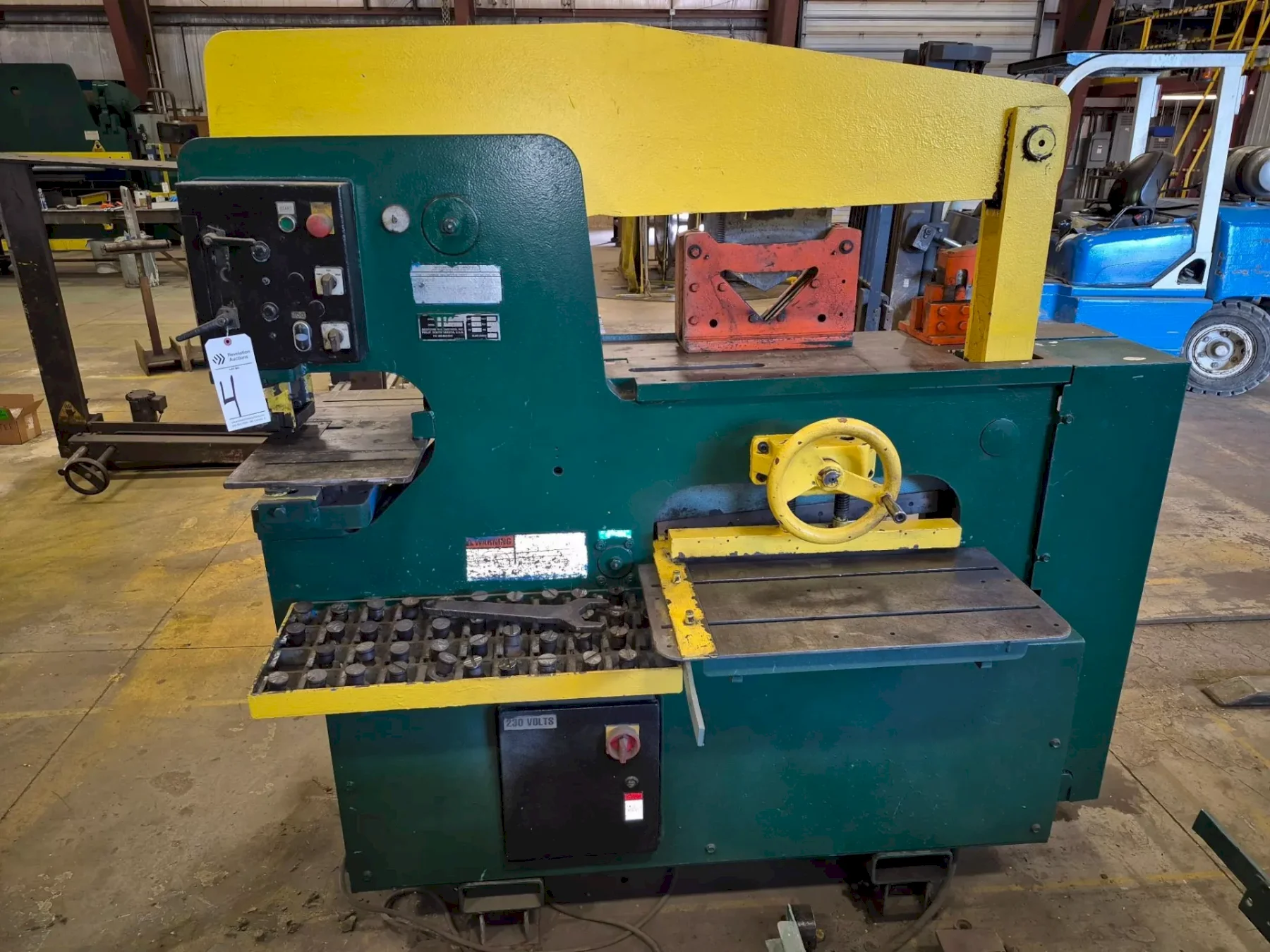

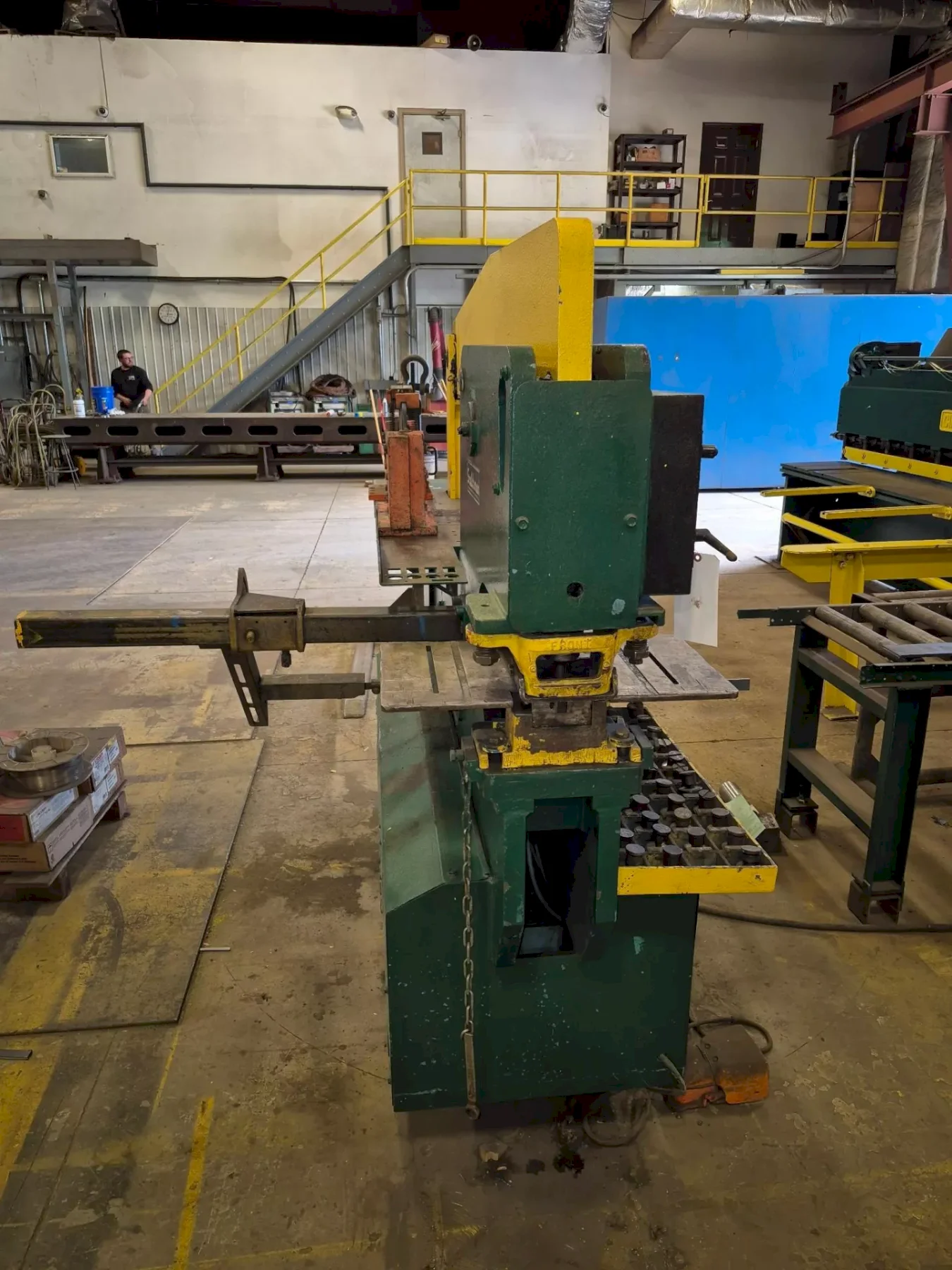

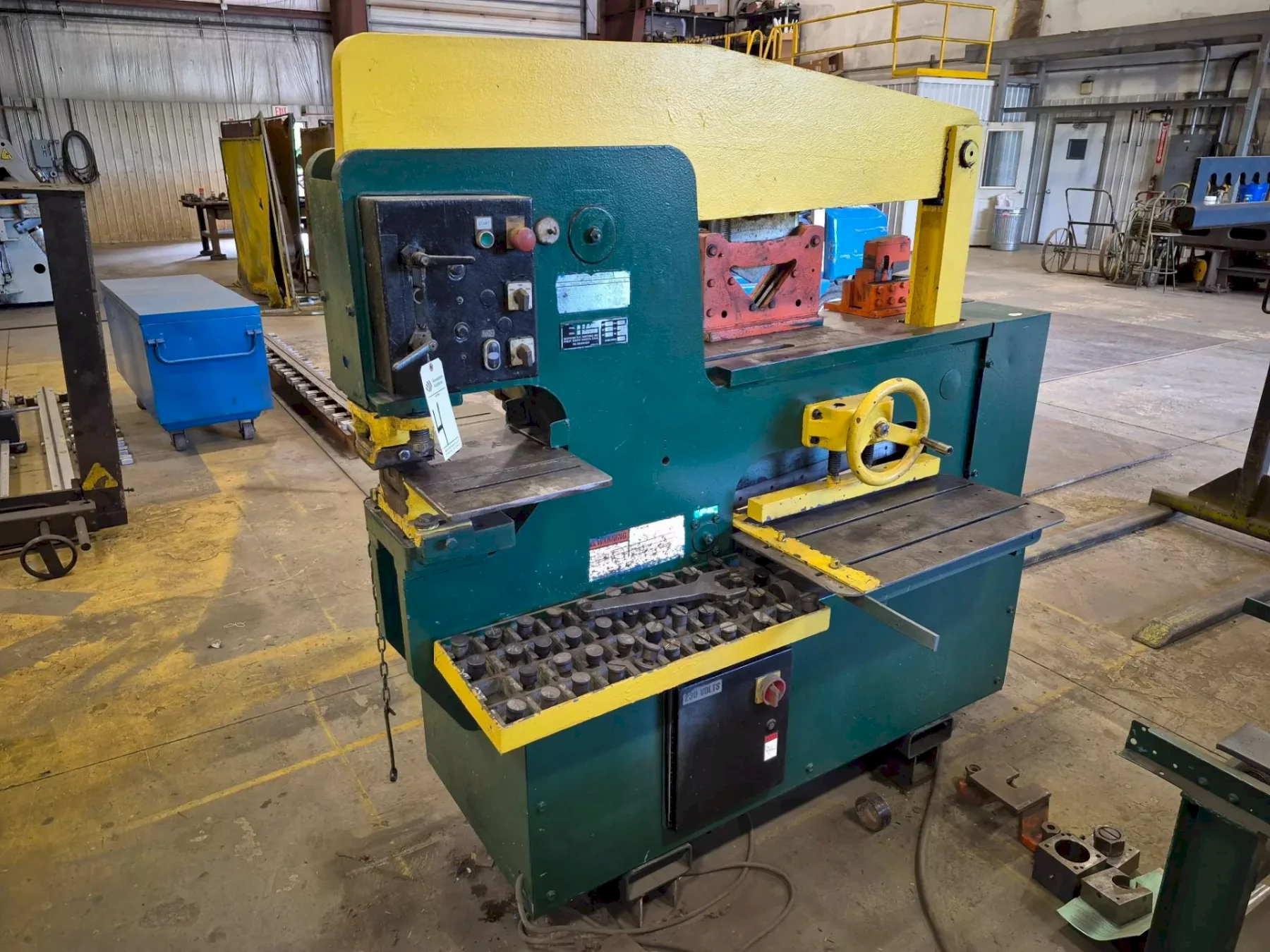

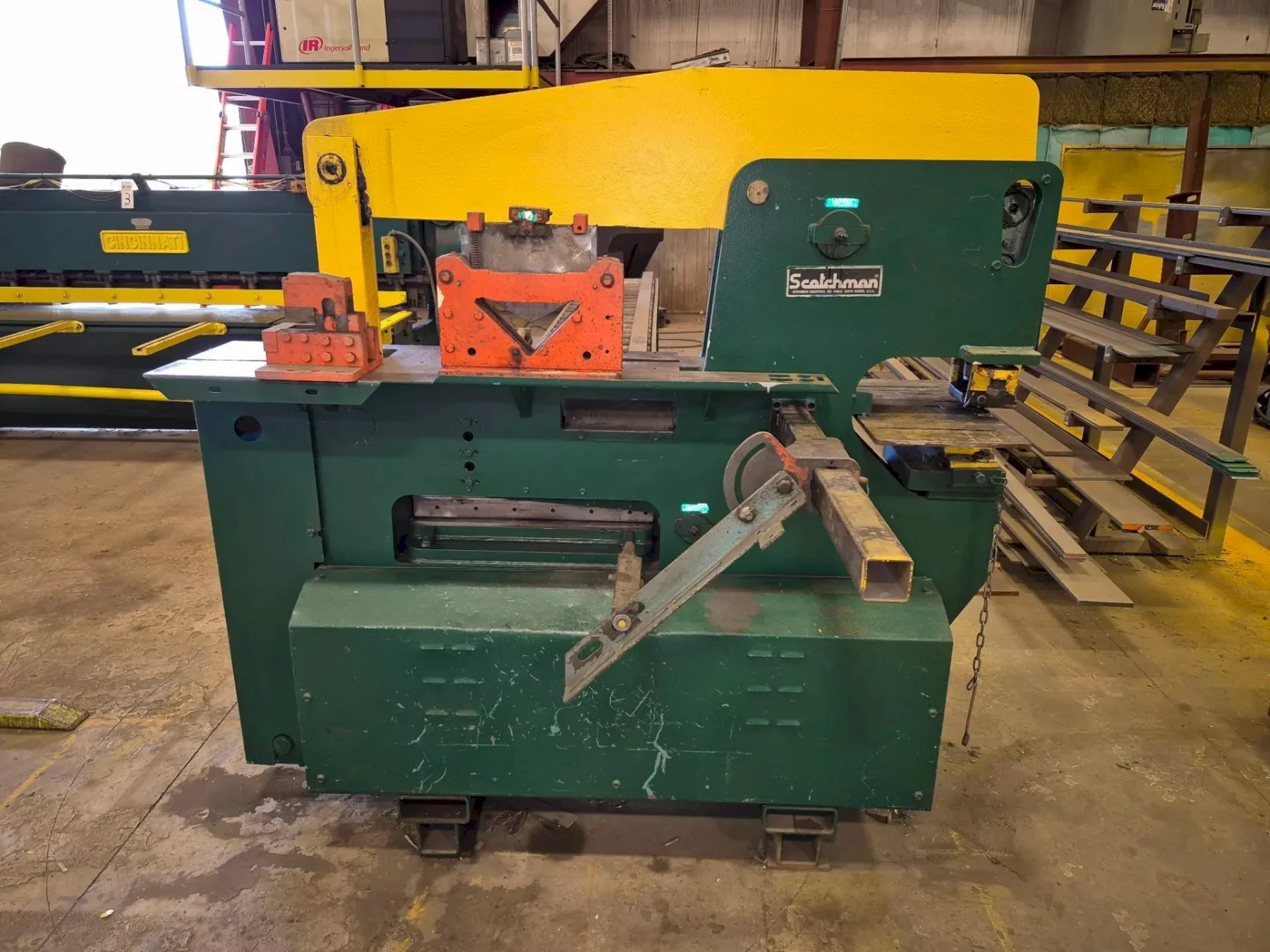

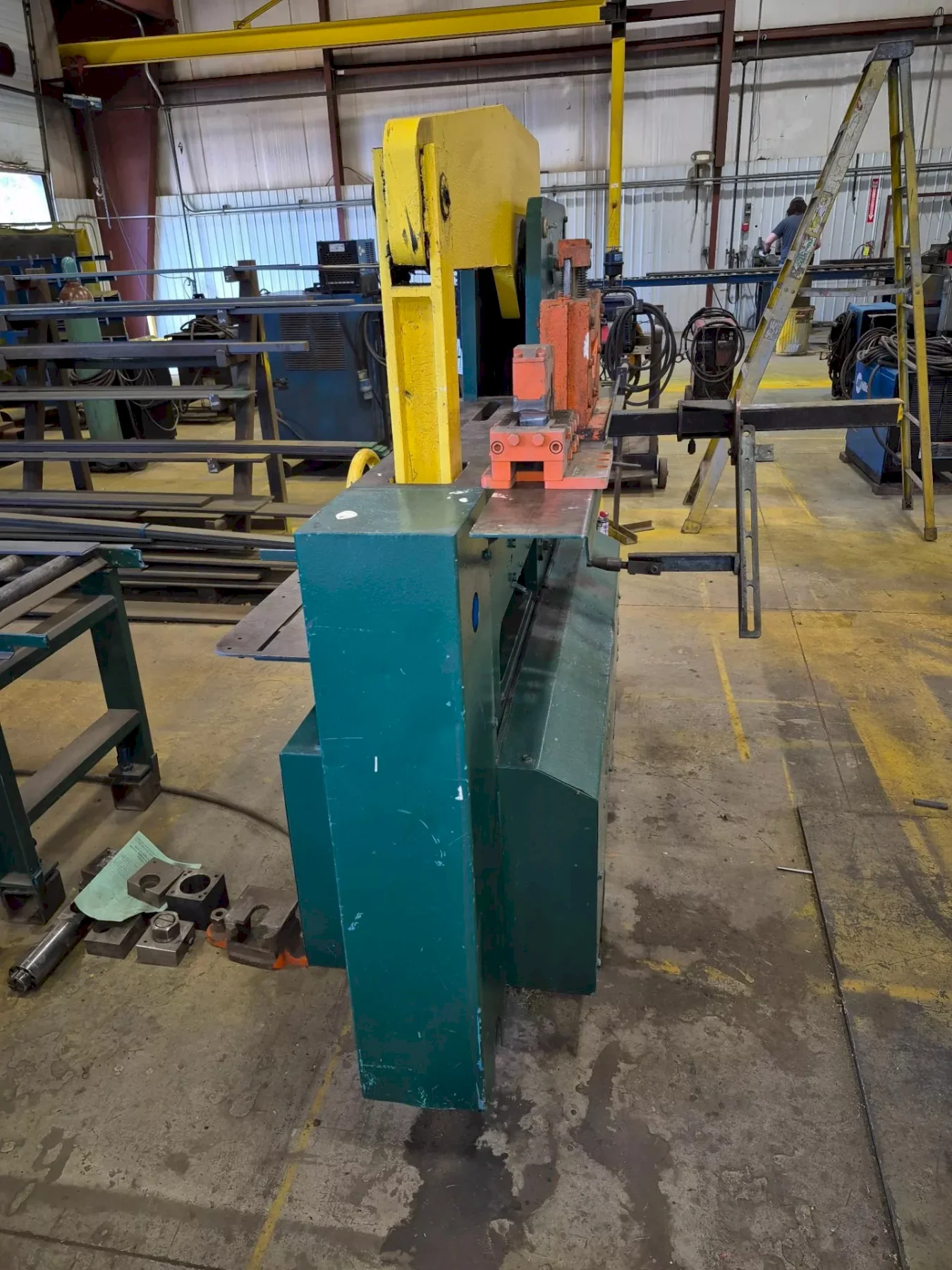

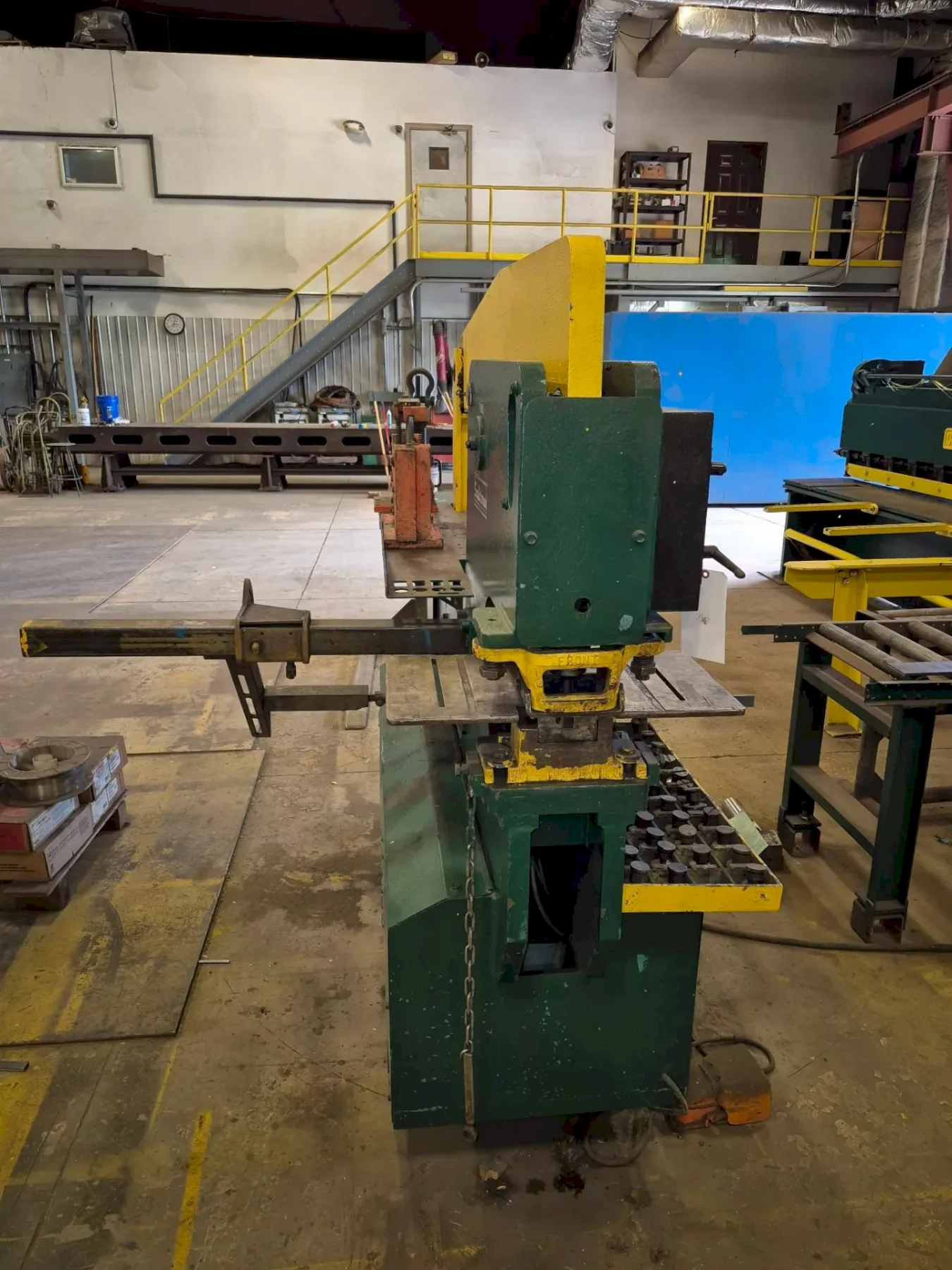

90 TON SCOTCHMAN 9012-24M HYDRAULIC IRONWORKER

Request Quote Share Listing | Print Specs

Model: 9012-24M

Year: 2003

Stock #: 117316

Manufacturer: SCOTCHMAN

Highlights: S/N N/A SPECS PER (RA/JG) (6/18/26) CKCY P.O# (EWR-7248) ( 6/18/26) PRICE: 18,500 FROM: NY CUSTOM METAL FABRICATIONS THRU:RELATION AUCTIONS J/V: MACHINERY VALUES LOC:ONISTE

90 TON SCOTCHMAN 9012-24M HYDRAULIC IRONWORKER

Equipped With

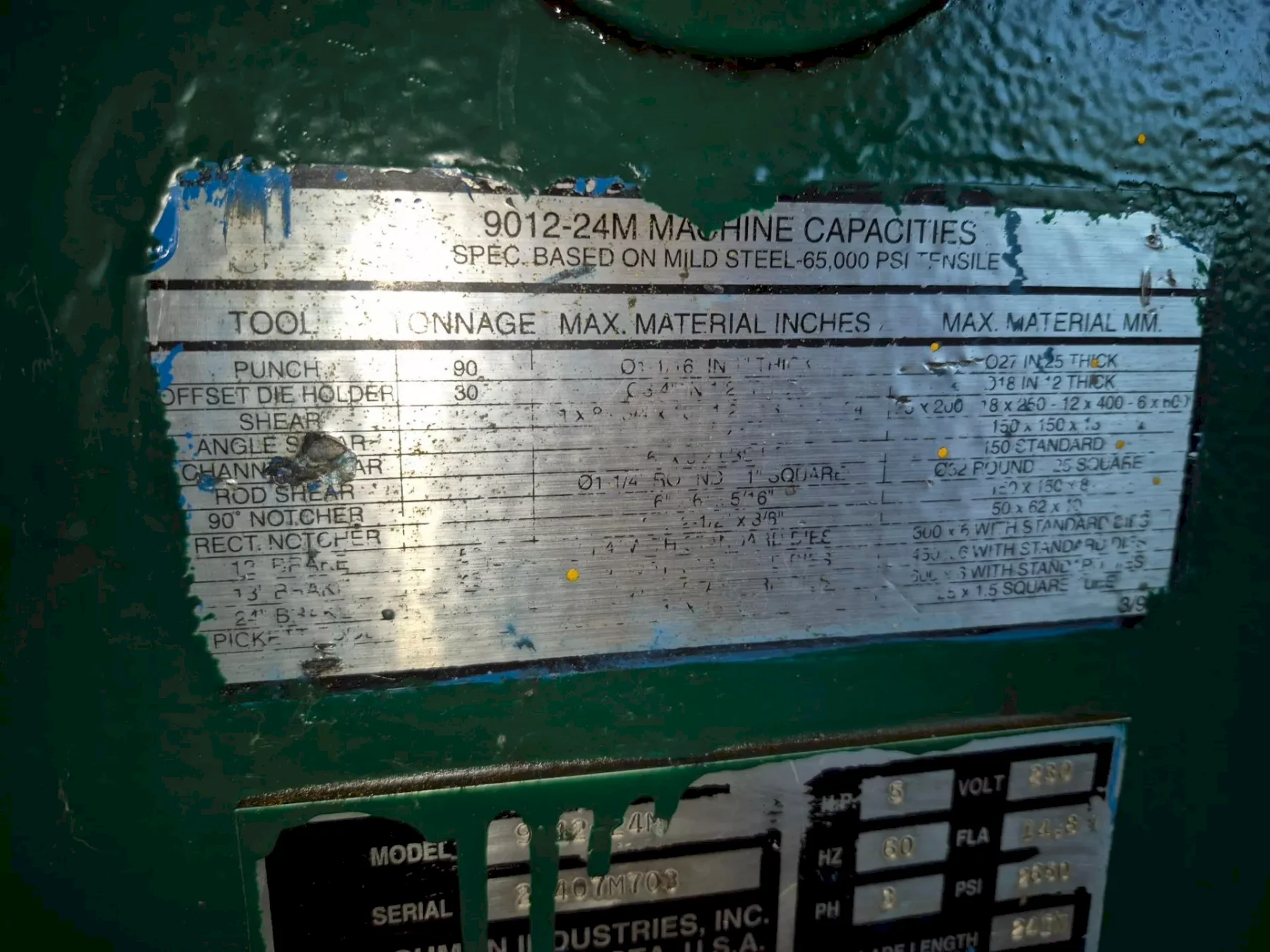

SPECIFICATIONS:

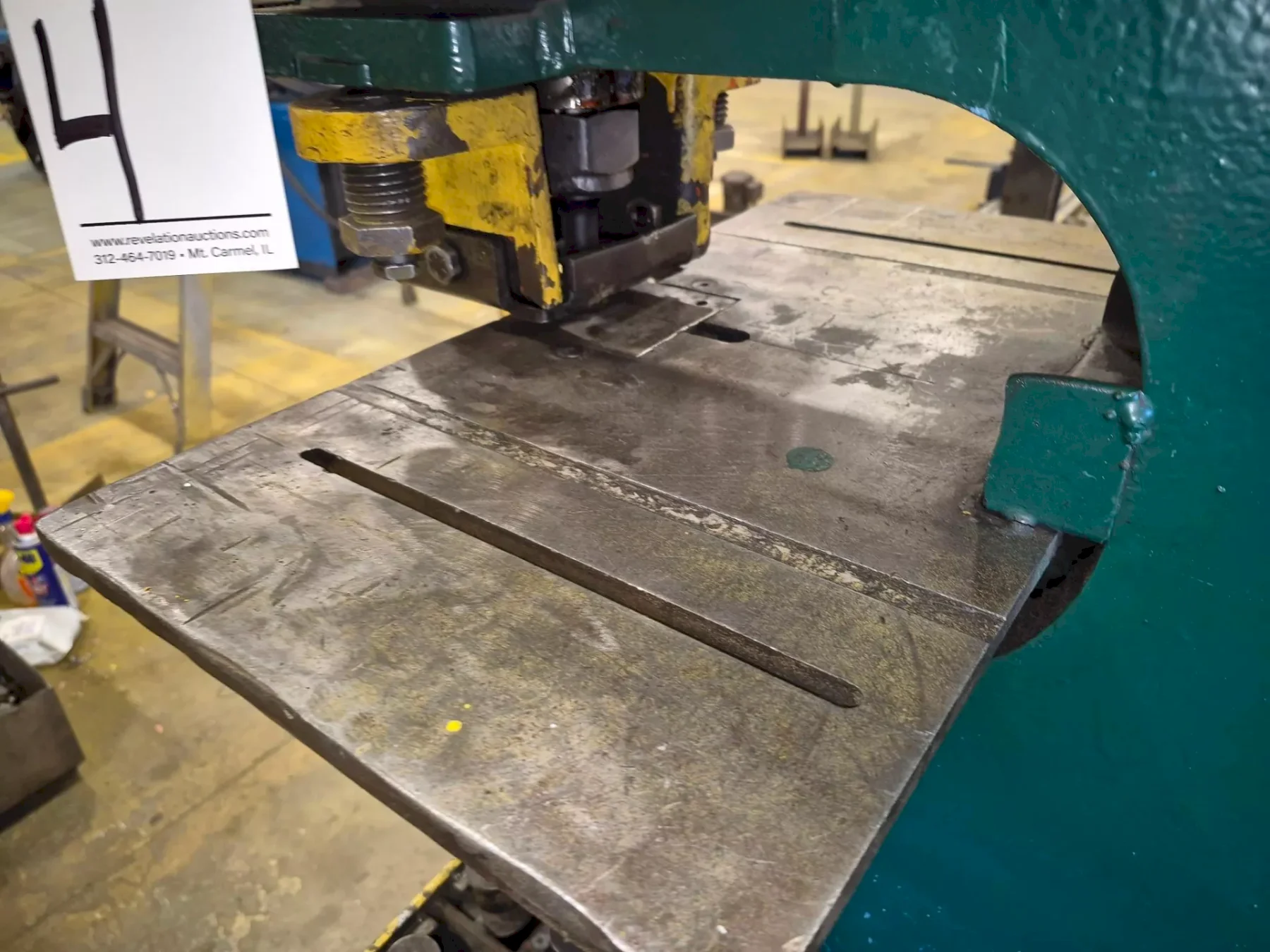

PUNCHING CAPACITY 90 TON

1-1/8"

THROAT DEPTH 12"

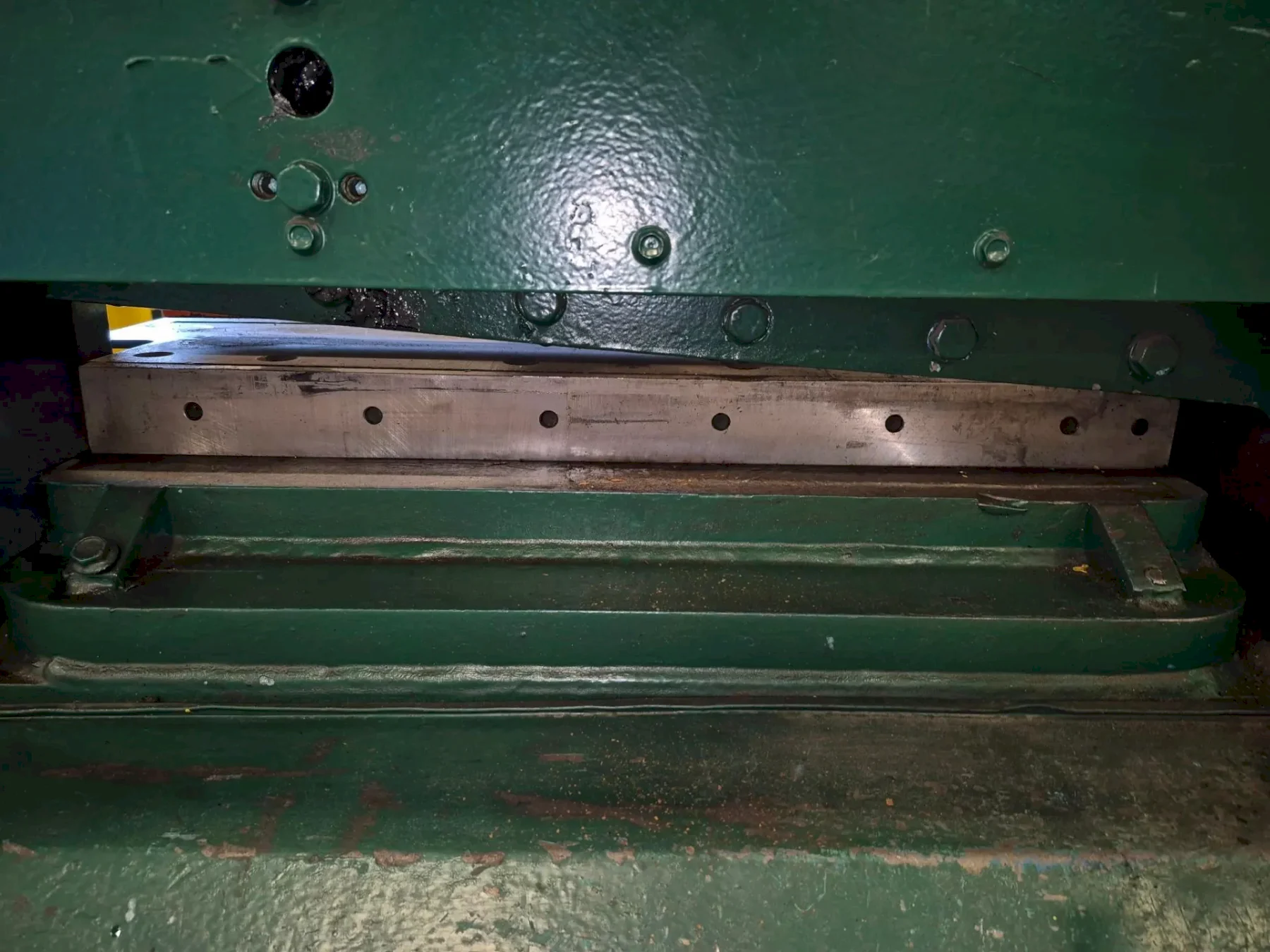

FLAT BAR SHEAR 24" LENGTH

1" X 8"

3/4" x 12"

1/2" x 16"

1/4" x 24"

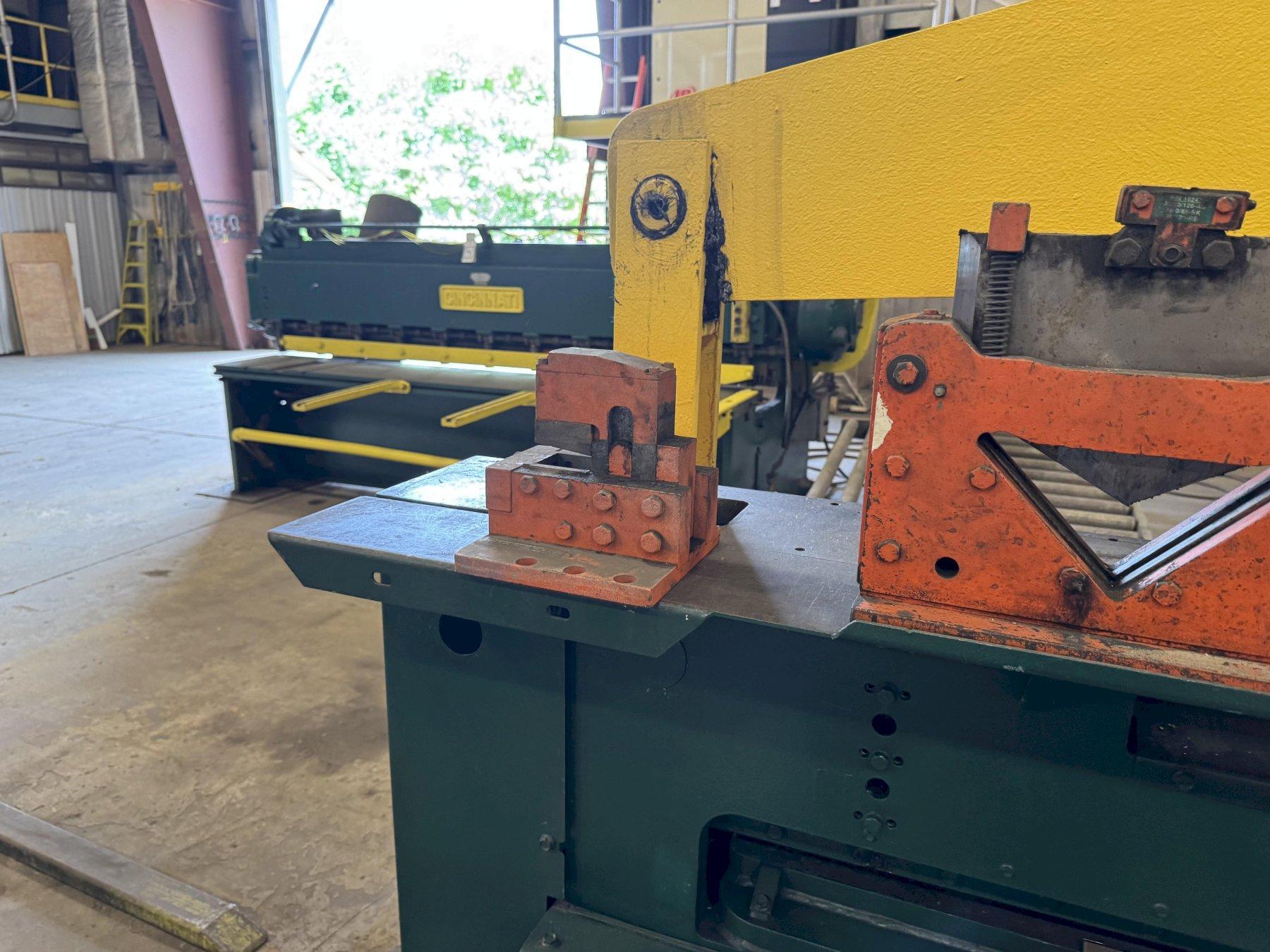

ANGLE SHEAR 90 DEGREE 6" X 6" X 1/2"

ANGLE SHEAR 45 DEGREE W/TOOL 3" X 3" 3/8"

W/BAR SHEAR 4" X 4" X 1/2"

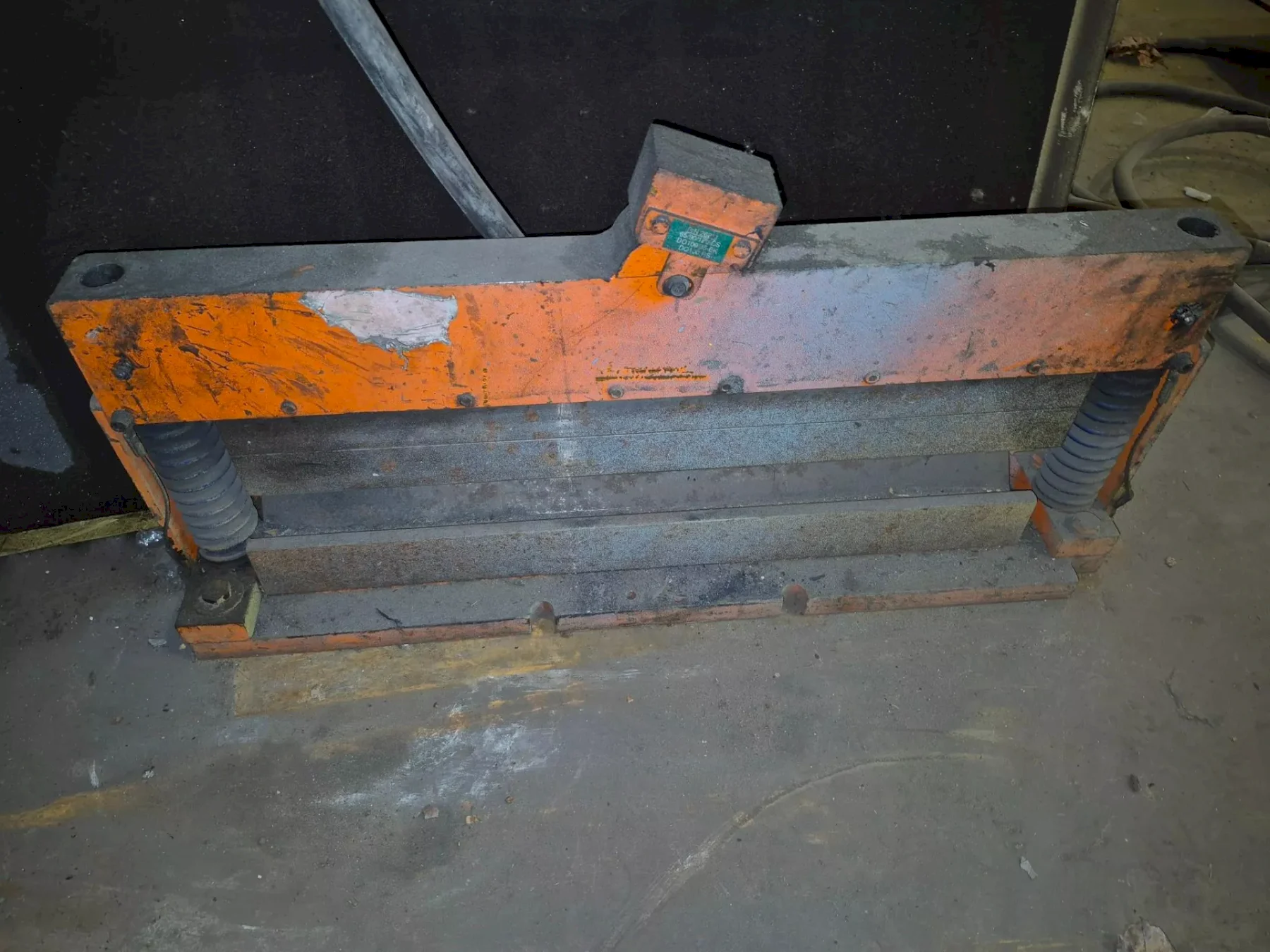

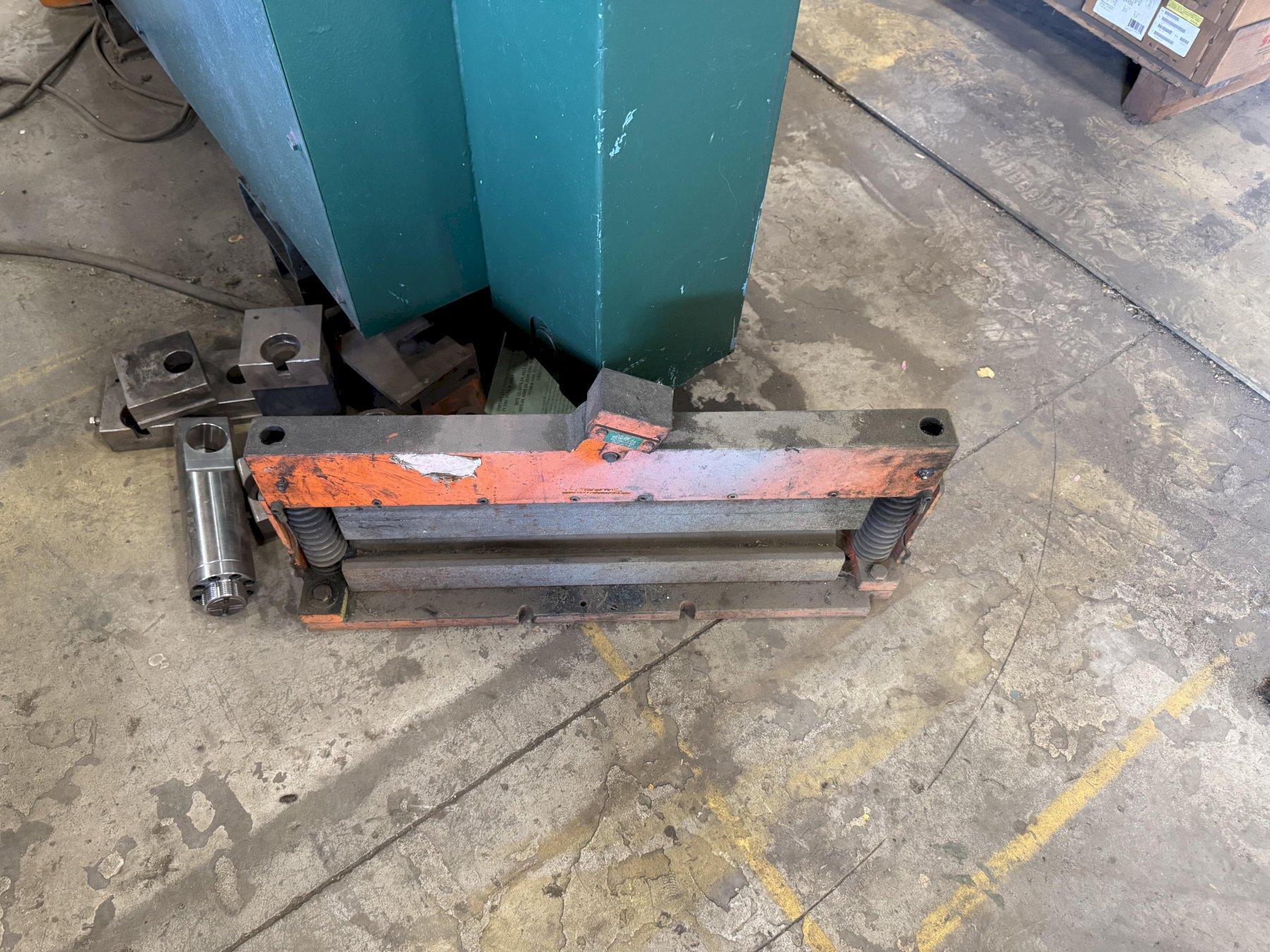

BRAKE 12" 50 TON

BRAKE 24" 40 TON

OPEN END BRAKE MAX. 1/4" X 5

PIPE NOTCHER 3/4", 1",1-1/2',2"

SCHEDULE 40

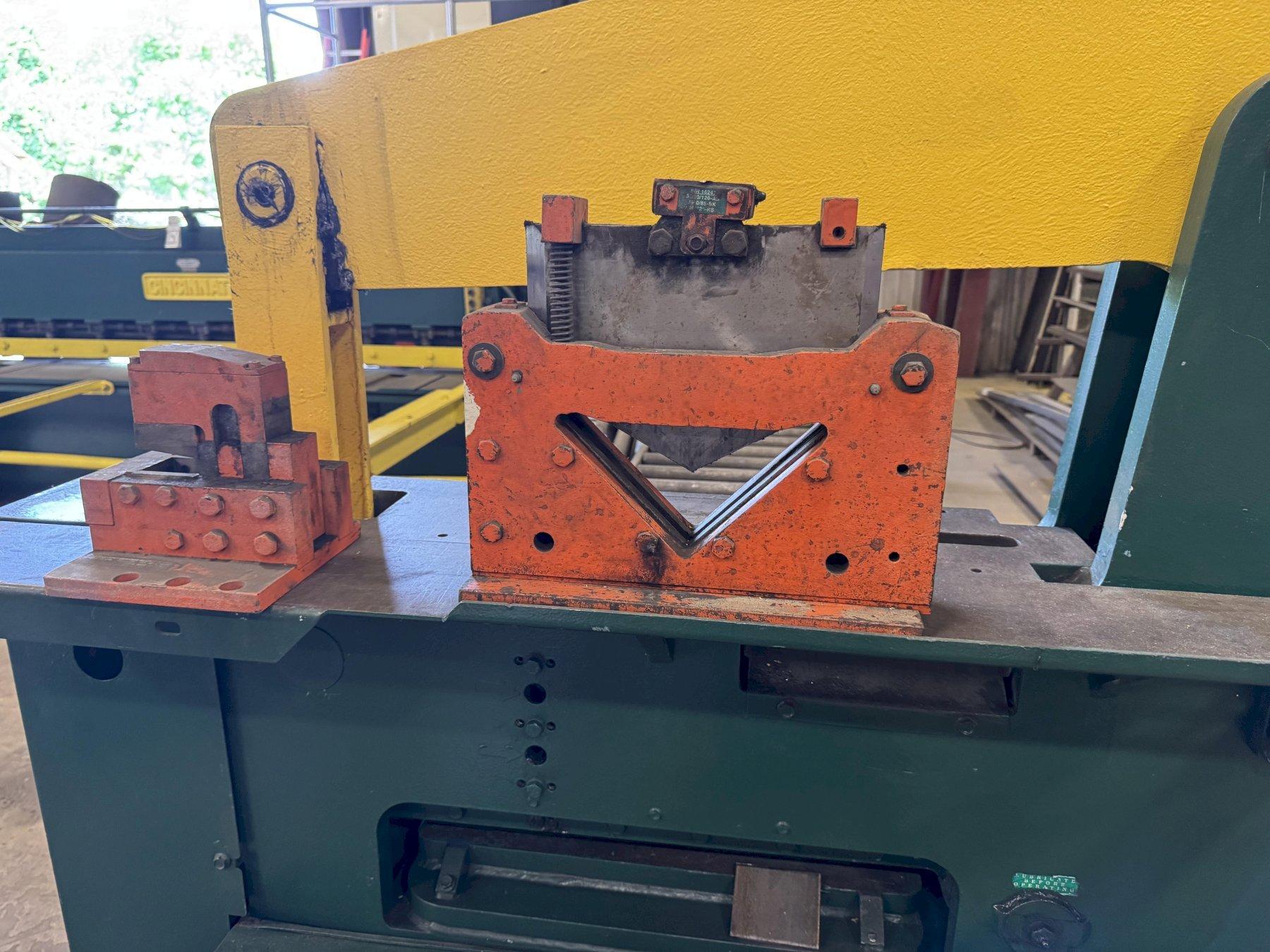

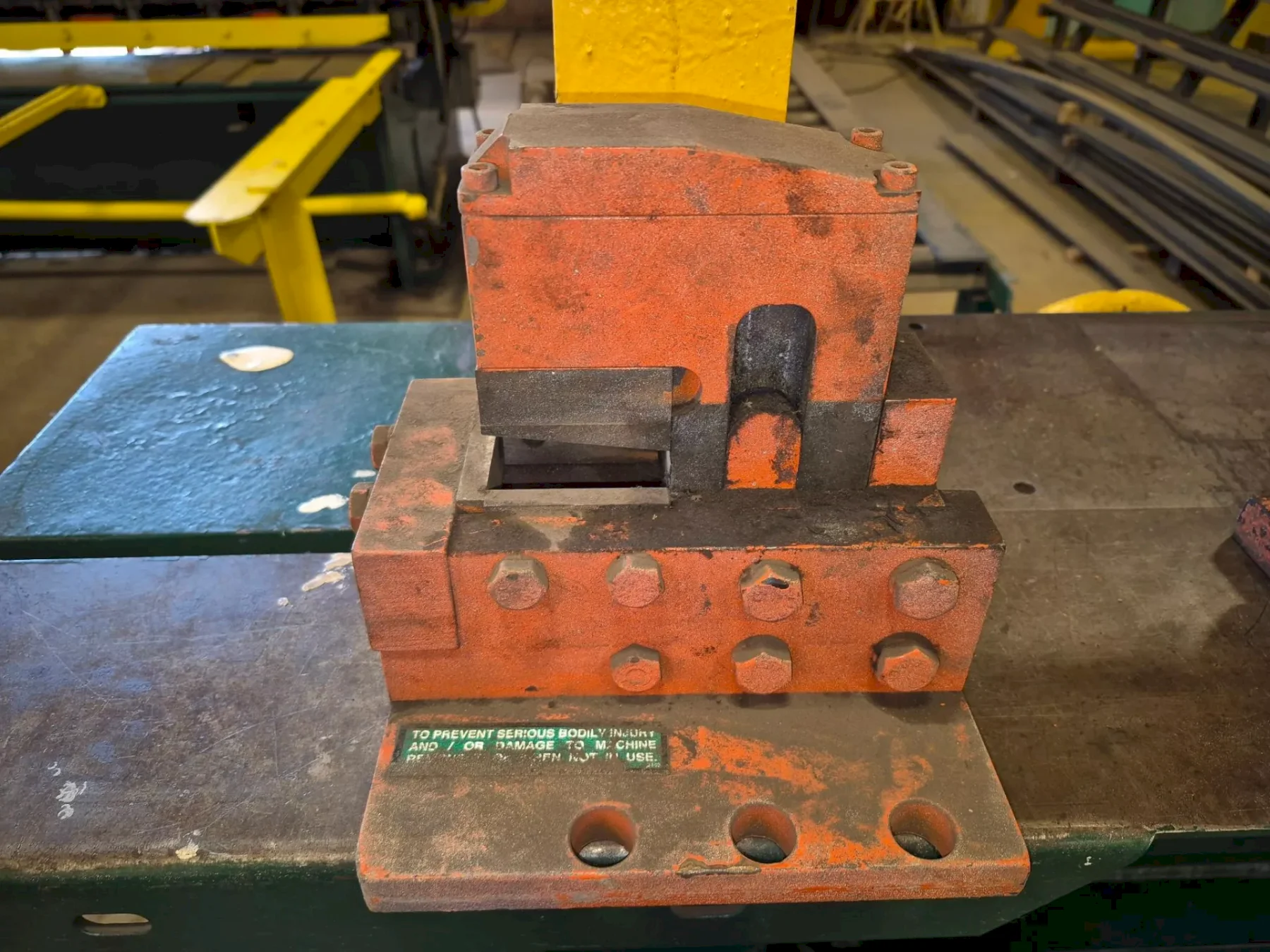

RECTANGLE NOTCHER 2" X 2-1/2" X 3/8"

90 DEGREE V- NOTCHER 6" X 6" X 5/16"

CHANNEL SHEAR 2" TO 6" ADJ.

PICKETT TOOL ........................ 1/2", 3/4" AND 1"

ROD SHEAR

ROUND (MAX.) 9 CAVITY- 1/4" TO 1-1/4"

SQUARE (MAX.) 1 CAVITY- 1/4" TO 1"

SQUARE TUBE SHEAR 1/2", TO 2"
90 V.NOTCHER ........................ 6" X 6" X 1/2"

12 GAUGE

PICKET TOOL 1/2", 3/4" & 1"

16 GAUGE

OFFSET DIE HOLDER MAX.40 TON

STROKES PER MINUTE IN LIGHT MATERIAL 45SPM

STROKES PER MINUTE IN HEAVY MATERIAL 24SPM

HYDRAULICS 2,600 PSI

MOTOR STANDARD 5 HP

208/230/460,380/57V;

3 PH

DIMENSIONS L: 76-3/4"

W: 31"

H: 71-1/2"

WT- 4200LBS

RECTANGLE NOTCHER ................... 2" X 2-1/2" X 3/8"

PIPE NOTCHING ....................... 3/4", 1", 1-1/4",

1-1/2", 2"

BRAKE 12" ........................... 50 TON

BRAKE 24" ........................... 40 TON

DYDRAULICS .......................... 2,500 PSI

MOTORS:

STANDARD............................. 230/460 5 HP 3 PH

OPTIONAL............................. 230 5 HP 1 PH

DIMENSIONS .......................... W-26" X L-76" X H-70"

WEIGHT .............................. 4,200 LBS.

EQUIPPED WITH:

- ANGLE SHEAR

- NOTCHER

- BRAKE

- MISC. PUNCH ACCESSORIES

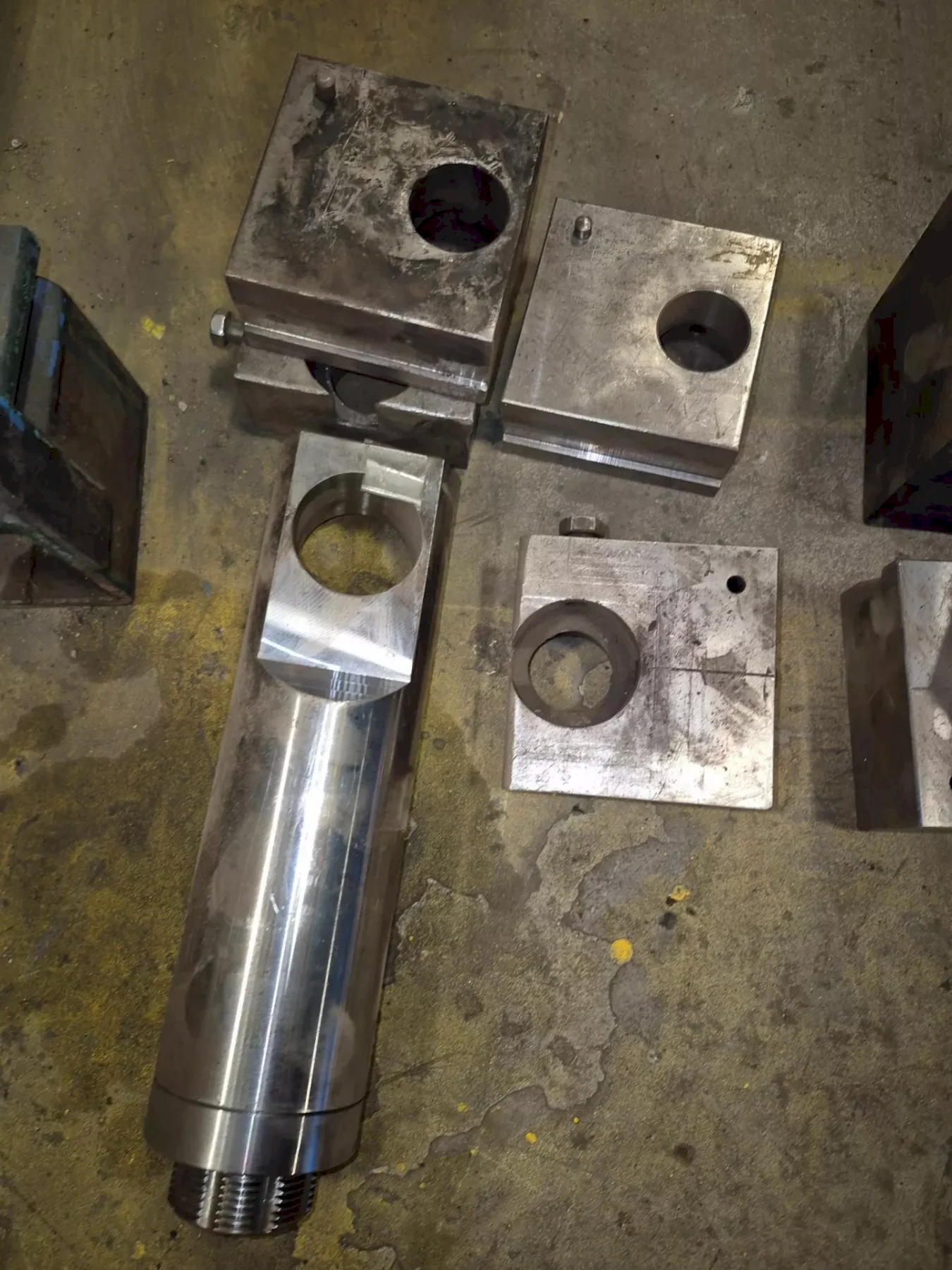

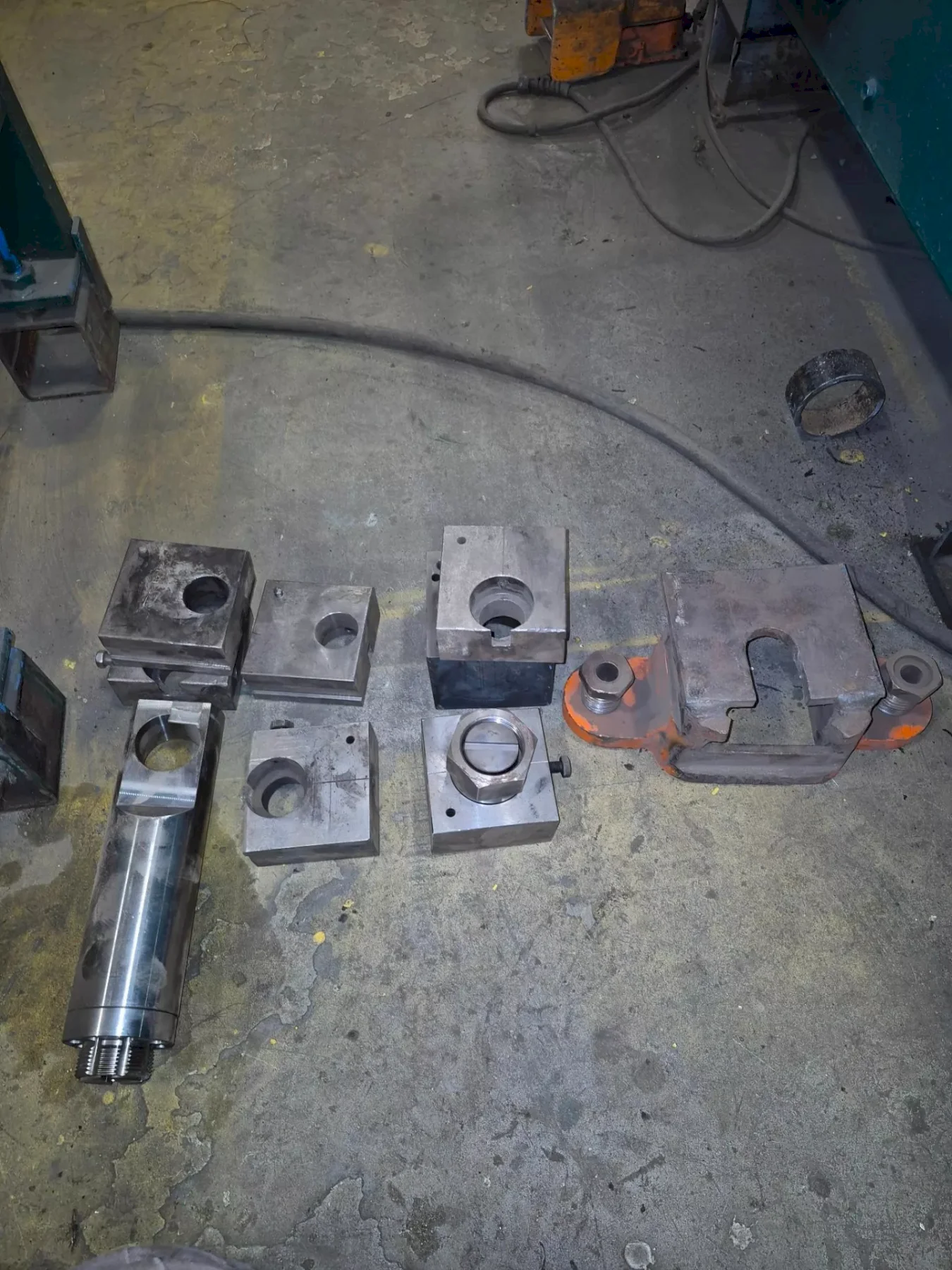

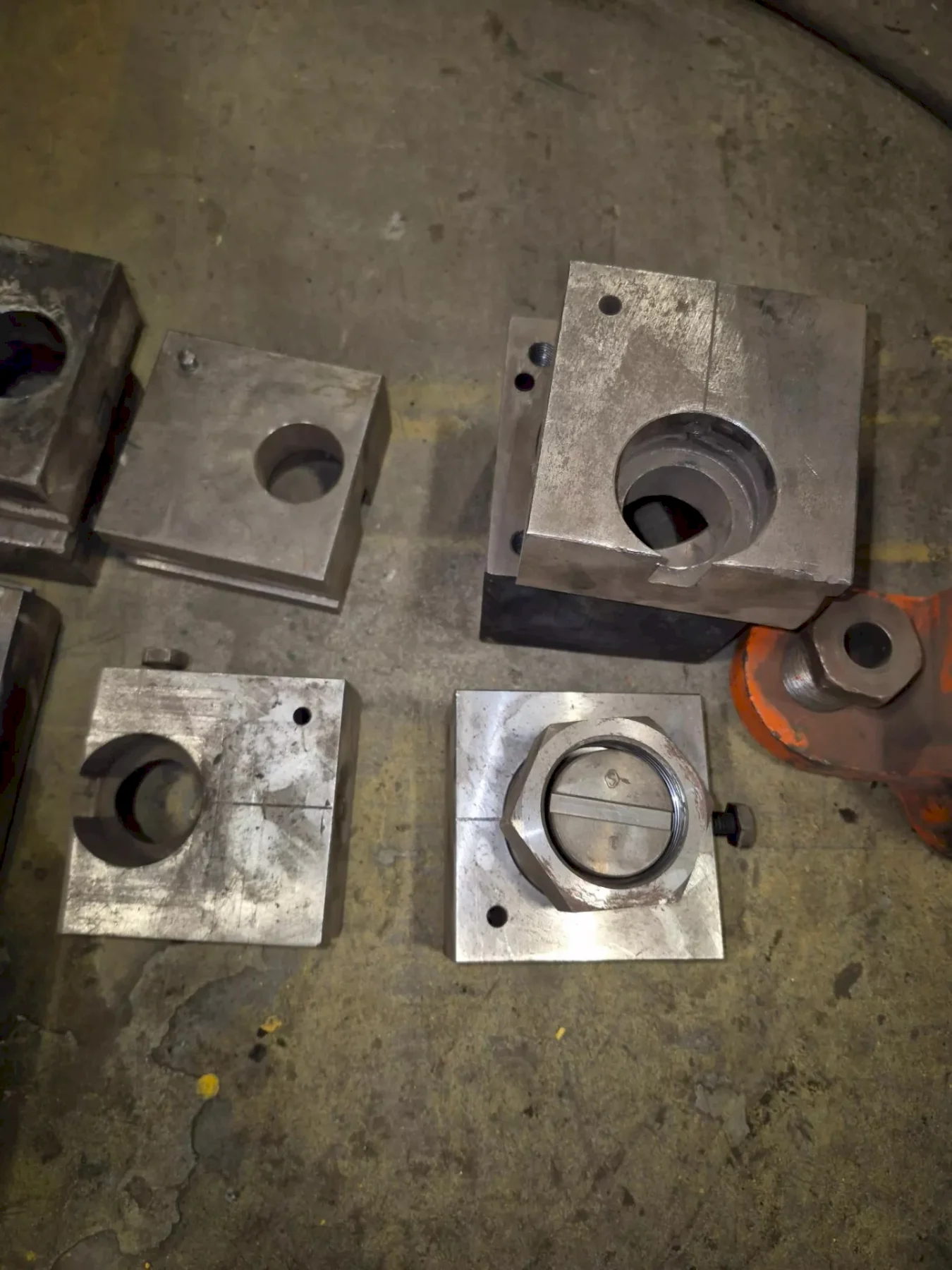

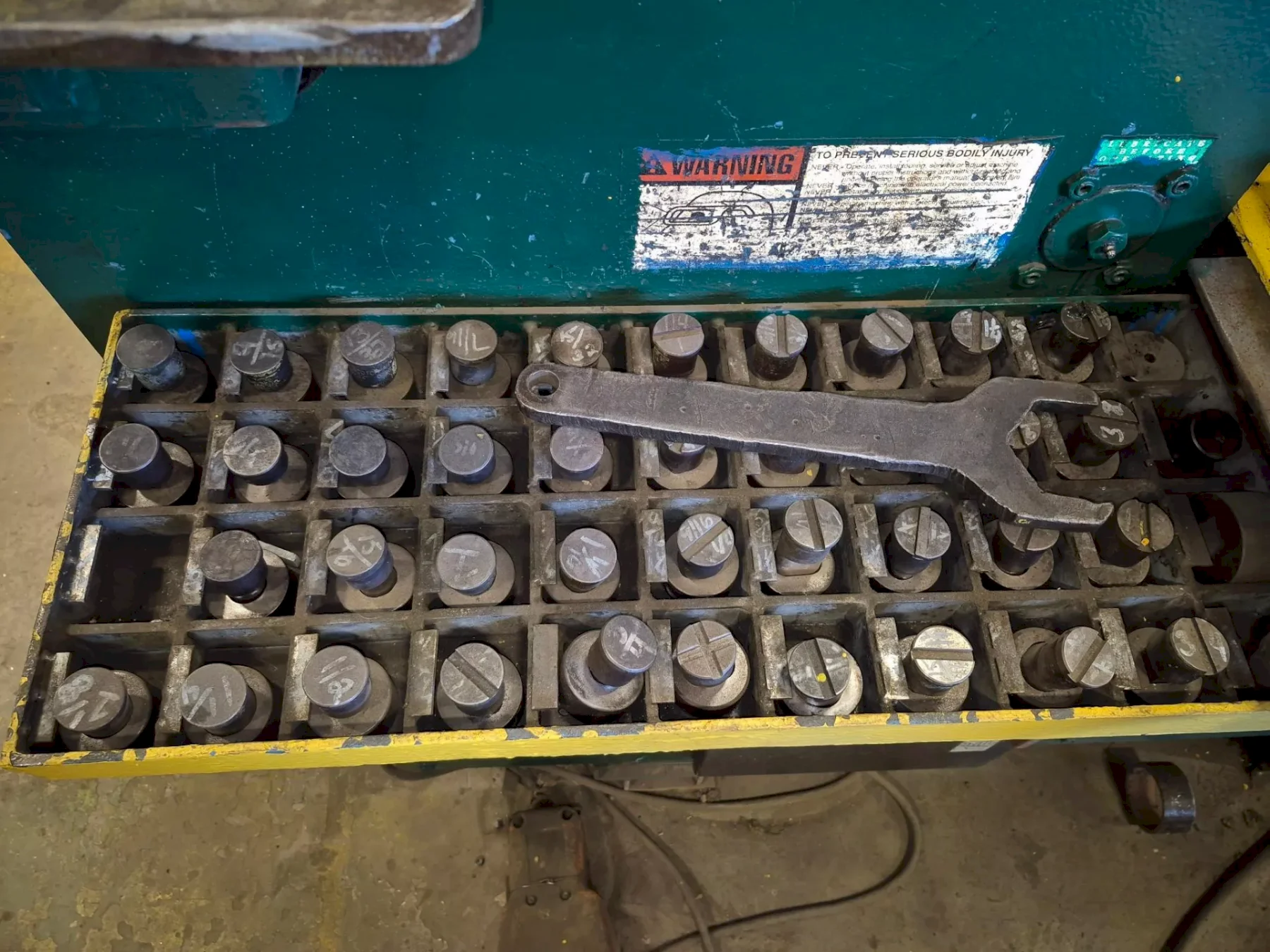

- MISC. PUNCHES & DIES

- FLAT SHEARING STATION

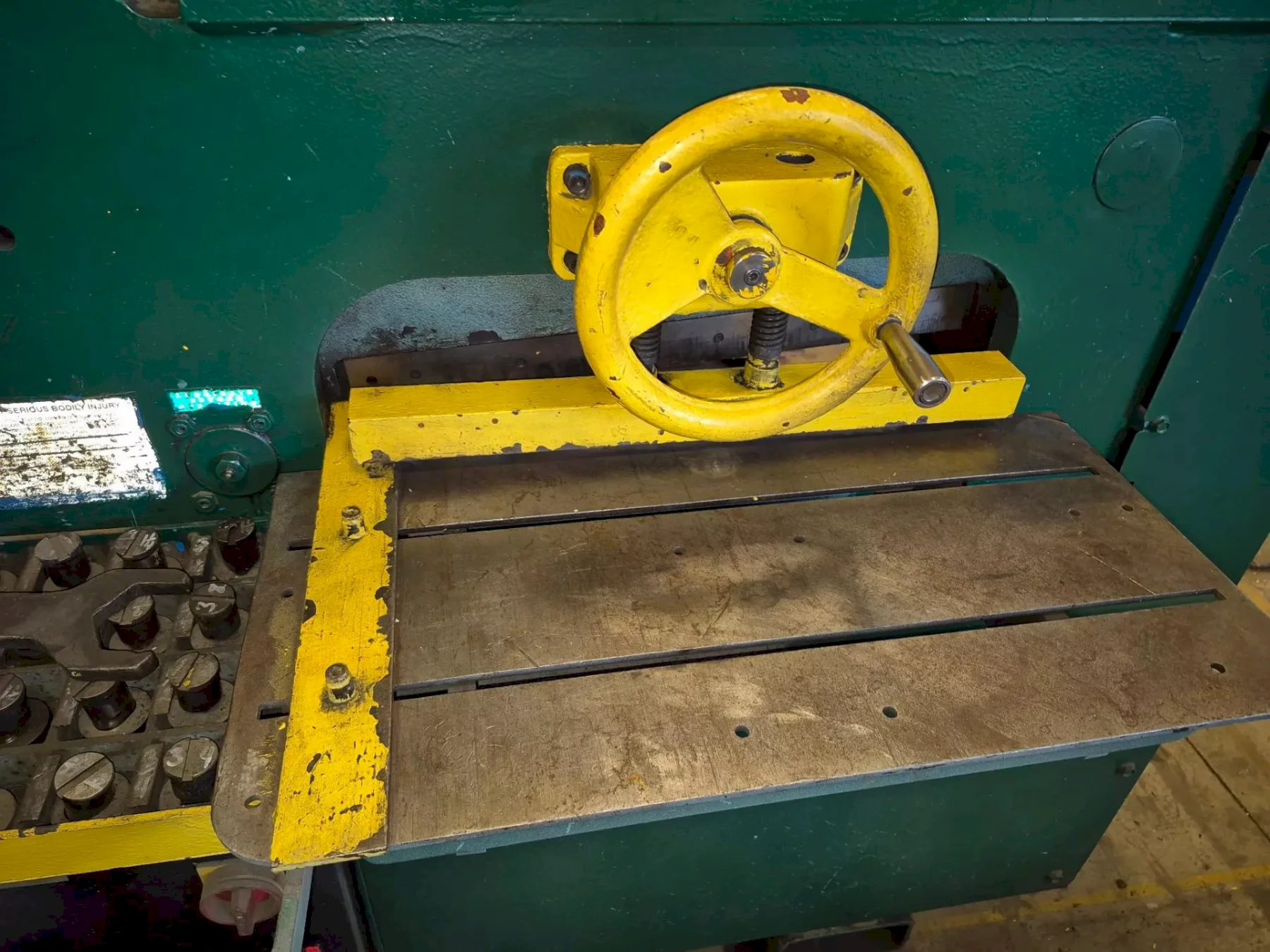

- BACK GAUGE STOP

- FOOT PEDAL

Machine Information

90 TON SCOTCHMAN 9012-24M HYDRAULIC IRONWORKER

Stock #: 117316

Equipped With

SPECIFICATIONS:
PUNCHING CAPACITY      90 TON
                       1-1/8"
THROAT DEPTH           12"
FLAT BAR SHEAR         24" LENGTH
                       1" X 8"
                       3/4" x 12"
                       1/2" x 16"
                       1/4" x 24"
ANGLE SHEAR 90 DEGREE  6" X 6" X 1/2"
ANGLE SHEAR 45 DEGREE W/TOOL  3" X 3" 3/8"
W/BAR SHEAR            4" X 4" X 1/2"
BRAKE 12"              50 TON
BRAKE 24"              40 TON
OPEN END BRAKE         MAX. 1/4" X 5
PIPE NOTCHER           3/4", 1",1-1/2',2"

SCHEDULE 40
RECTANGLE NOTCHER      2" X 2-1/2" X 3/8"
90 DEGREE V- NOTCHER   6" X 6" X 5/16"
CHANNEL SHEAR          2" TO 6" ADJ.


PICKETT TOOL ........................ 1/2", 3/4" AND 1"





ROD SHEAR
ROUND (MAX.)           9 CAVITY- 1/4" TO 1-1/4"
SQUARE (MAX.)          1 CAVITY- 1/4" TO 1"
SQUARE TUBE SHEAR      1/2", TO 2"
90 V.NOTCHER ........................ 6" X 6" X 1/2"
                       12 GAUGE
PICKET TOOL            1/2", 3/4" & 1"
                       16 GAUGE
OFFSET DIE HOLDER      MAX.40 TON
STROKES PER MINUTE IN LIGHT MATERIAL 45SPM
STROKES PER MINUTE IN HEAVY MATERIAL 24SPM
HYDRAULICS             2,600 PSI
MOTOR STANDARD         5 HP

                       208/230/460,380/57V;
                       3 PH
DIMENSIONS             L: 76-3/4"
                       W: 31"
                       H: 71-1/2"
WT- 4200LBS





RECTANGLE NOTCHER ................... 2" X 2-1/2" X 3/8"


PIPE NOTCHING ....................... 3/4", 1", 1-1/4",


                                      1-1/2", 2"


BRAKE 12" ........................... 50 TON


BRAKE 24" ........................... 40 TON


DYDRAULICS .......................... 2,500 PSI





MOTORS:


STANDARD............................. 230/460 5 HP 3 PH


OPTIONAL............................. 230 5 HP 1 PH





DIMENSIONS .......................... W-26" X L-76" X H-70"


WEIGHT .............................. 4,200 LBS.





EQUIPPED WITH:


- ANGLE SHEAR


- NOTCHER


- BRAKE


- MISC. PUNCH ACCESSORIES


- MISC. PUNCHES & DIES


- FLAT SHEARING STATION


- BACK GAUGE STOP


- FOOT PEDAL
