Machine Information

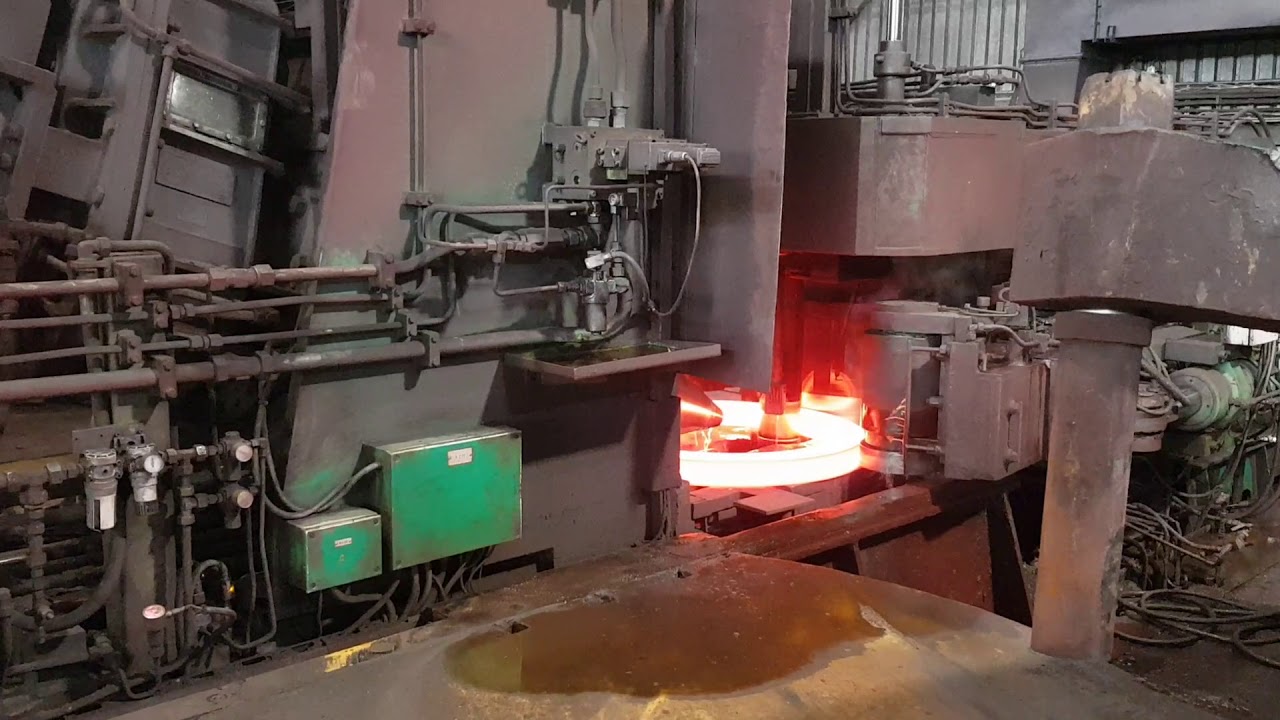

SMS THYSSEN WAGNER MODEL RAW 125/100-3000/600 RING ROLLING MACHINE

Stock #: 114151

Equipped With

Mfg. Date, September 1995, in operation 3 shift
Excellent operational condition and repair with consistent annual maintenance.
Modernization: main control system; measuring system (for all actuators and
mechanisms)
Last in operation August 2019.

SPECIFICATIONS
Exit and Entry Manipulators

Diameter of Rolled Rings:
Min/Max .............280/3000 mm
Height of rolled rings:
Min/Max............30-600 mm
Radius rolling force Max.....1, 25MN (125 Tons)
Axial rolling force Max....... 1.00 MN (100 Tons)

Rolling speed ..........0.4 - 1.6 m/s
Diameter main cylinder..... 610 mm
Length of the roll axis (cone).... 60
Angle of the cone .......35-degree
Diameter of roller mills.... 100 - 245 mm
Main drive motors, Radial .... (2) Motors 200 KW
Main drive motors, Axial..... (2) Motors, 200 KW

Total weight of the rolling mill, approximately 150 Tons

ALSO INCLUDED
SMS Loading Manipulator (betwen press and mill)
Max. Ring Weight........................1500 kg
Radius of the Loading Manipulator.......3000 mmm
Max. Rotation of Arm................... 165 dgr


Unloading Manipulator
Max. Raising the Arm ..................550 mm
Max. Rotation of the arm ..............175 dgr
Max. transportable Weight..............1500 kg.
Radius of the Unloading Manipulator....3000 mm
Controls are implemented from the mill's main control system.


ELECTRICAL CONTROLS ADDENDUM
Electrical Supply: 400V, 50 Hz
1. Main Motors:
Main Radial Motors: DMG 225S, 215kW, 581 A - (2) pieces
 Main Axial Motors: DMI 225S, 215kW, 581 A - (2) pieces
2. The motors are powered by four (4) thyristor converters from ABB-DC-800-
A02-1000-04D (originally ABB PAD3001 drives - 4 items)
3. The control system has been modernized with a Siemens S7-300 PLC controller


with an Ethernet and Profibus CPU unit (originally it was a SIMATIC S5 135U
controller) - Software source codes available
4. The control is super ordinated by an industrial computer type MASMSE05 in
which there is a computer - Modulo4 from Sorcus.
5. Road measurements in hydraulic cylinders have been modernized with Balluff
type BTFL2 / BTL7-P511-M ... ..- B-S32 movement sensors adapted to BTM-H1-340
modules with bit outputs coupled with the Sorcus Modulo4 controller

SPARE PARTS
- Axle rollers 2 pcs (new)
- Friction Strips
- Guides of the shaft cylinder cage
- Measuring Guides (measuring roll)
- Main Drive Coupling
- Tests standards for coupling cones
- Slatted and Retractable Slats


- Road Wheels and Thrust Wheels
- Bearings for the Cassette and Cage of the Shaft Cylinder
- Main Motor

OPERATOR'S MANUAL AND DRAWINGS AVAILABLE UPON REQUEST
