TILGERT - BURGHART & SCHMIDT 650MM, DOUBLE PIT, PRECISION SLITTING LINE

Stock #: 116547

Equipped With

TILGERT / BURGHART SCHMIDT SLITTING LINE
BUILT 1978; REFURBISHED / REBUILT by BURGHART SCHMIDT 2002

ENTRY
MAX COIL WEIGHT......10 TON
COIL STRIP WIDTH......10MM - 650MM
MAX COIL THICKNESS:.....0.2 MM - 1.50MM
ENTRY COIL ID: .......400MM / 500MM
ENTRY MAX COIL OD: ....2000MM
COIL WEIGHT EXIT......6TON / 12TON / 12TON
EXIT COIL I.D.:........300MM / 400MM / 500MM
EXIT COIL O.D.:.........2000MM

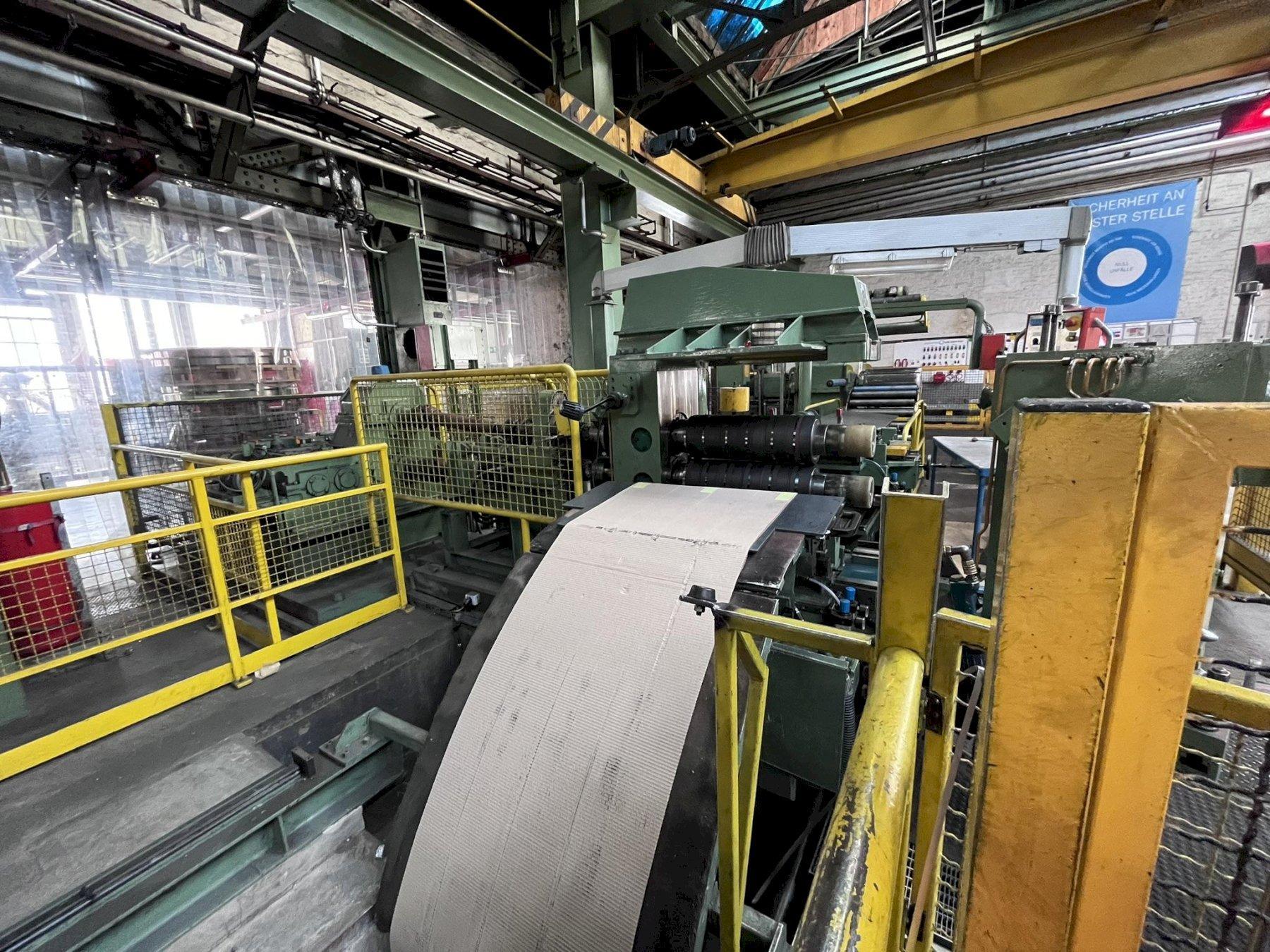

CONFIGURATION

PAPER WINDER........100MM TO 800MM DIAMETER ROLL

COIL CAR

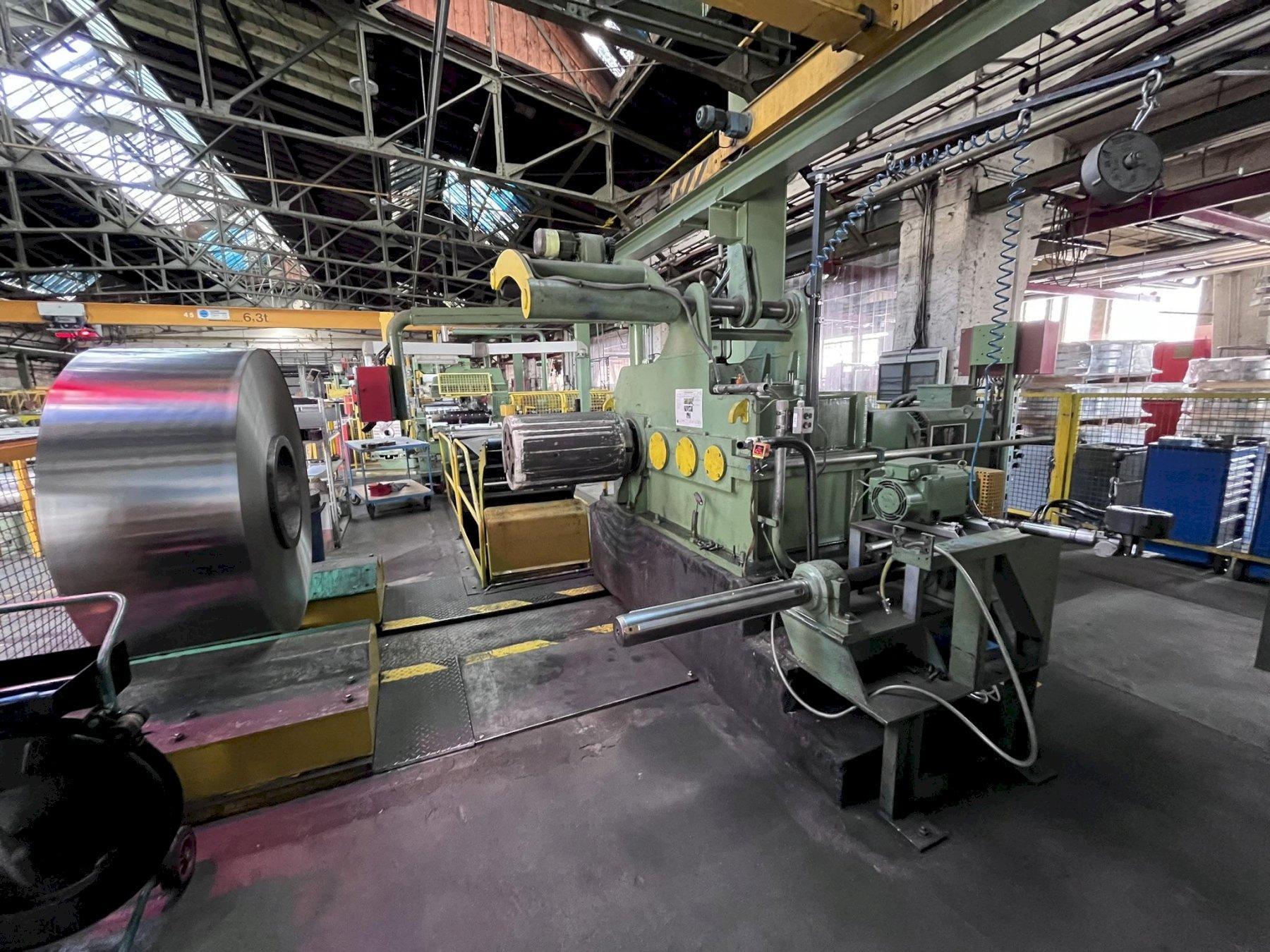

UNCOILER
HYDRAULIC EXPANSION, TRAVERSE, EDGE GUIDE, SNUBBER ROLL
LEAVES FOR LARGER ID
MAIN MOTOR......71kW, 1550 RPM, 400V


PIT WITH ROLLER ENTRY AND EXIT GUIDE RAMP

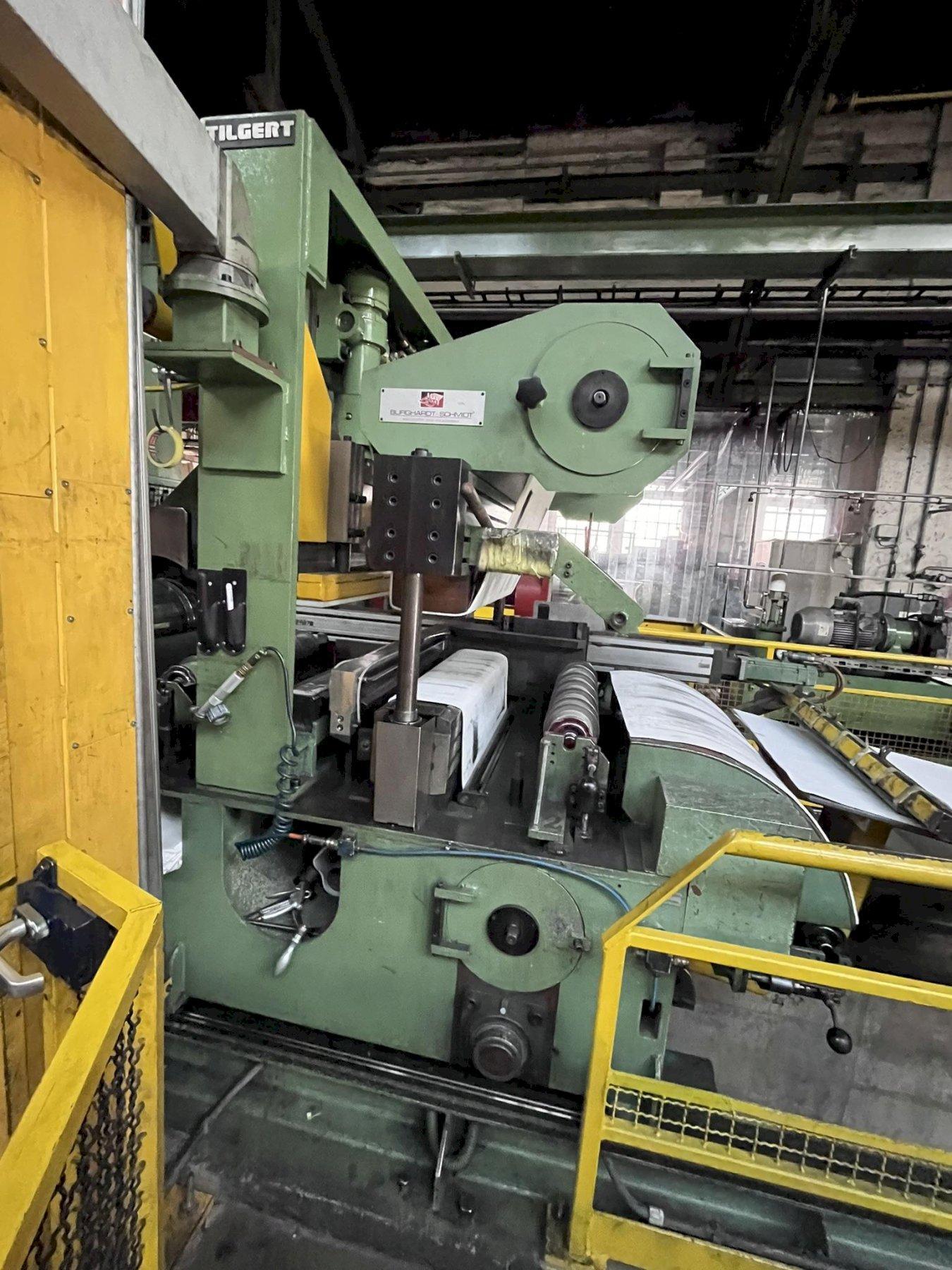

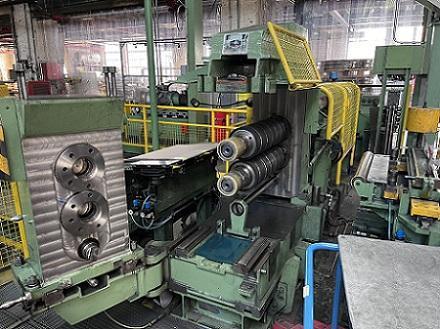

TILGERT SLITTING HEAD
ARBOR FACE.....715MM
ARBOR DIAMETER...140MM
SWING OUT OUTBOARD SUPPORT STAND
MAIN MOTOR......142kW, 2500RPM

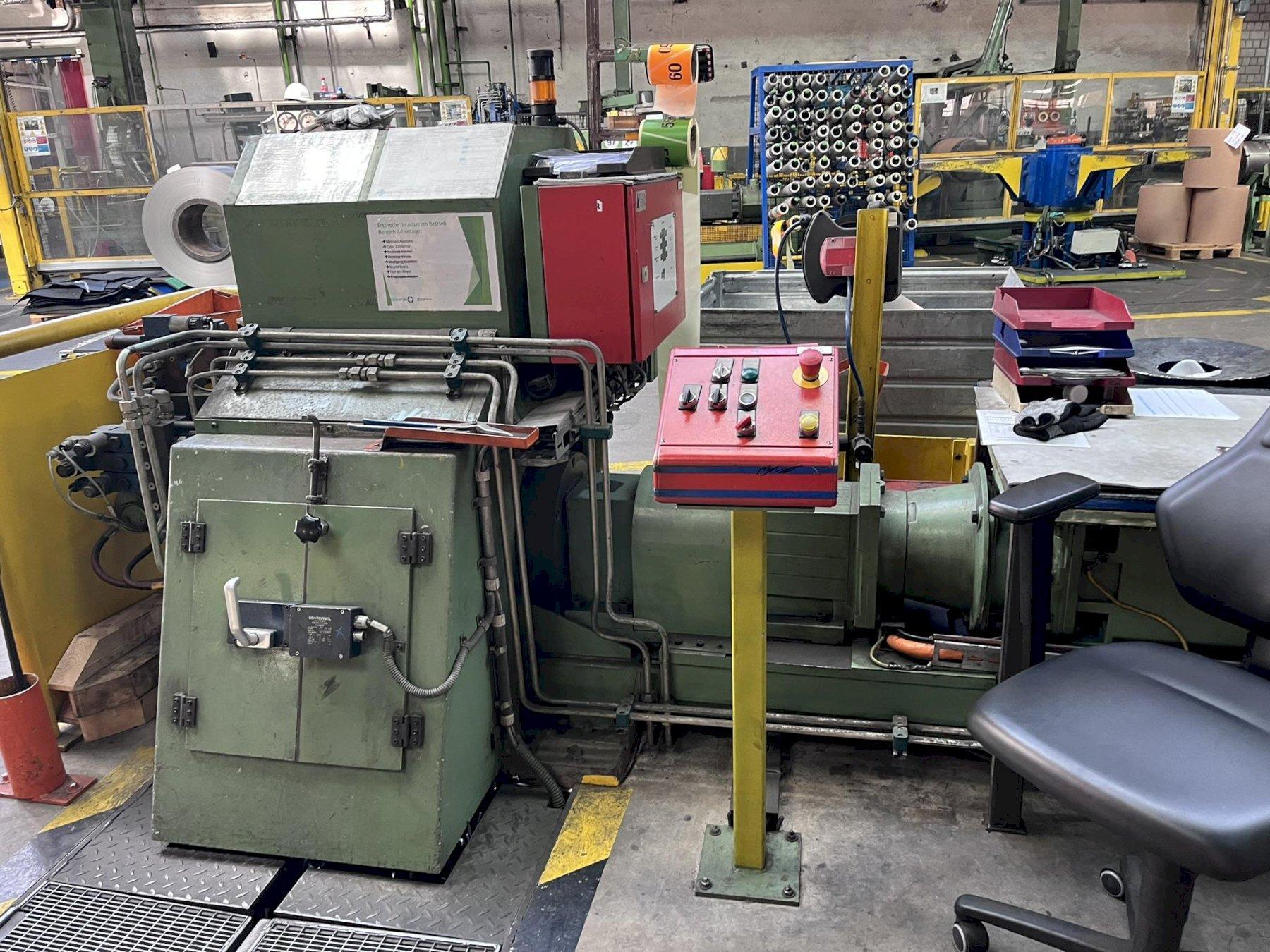

TILGERT SCRAP WINDER, MODEL LTA3, 2007
POWER........41 KW, 2000 RPM
WINDING SPEED...0 - 300 M/MIN
USABLE WIDTH....600MM
BALL DIAMETER, MAX..600MM

PIT WITH TILGERT ENTRY AND EXIT GUIDE RAMP

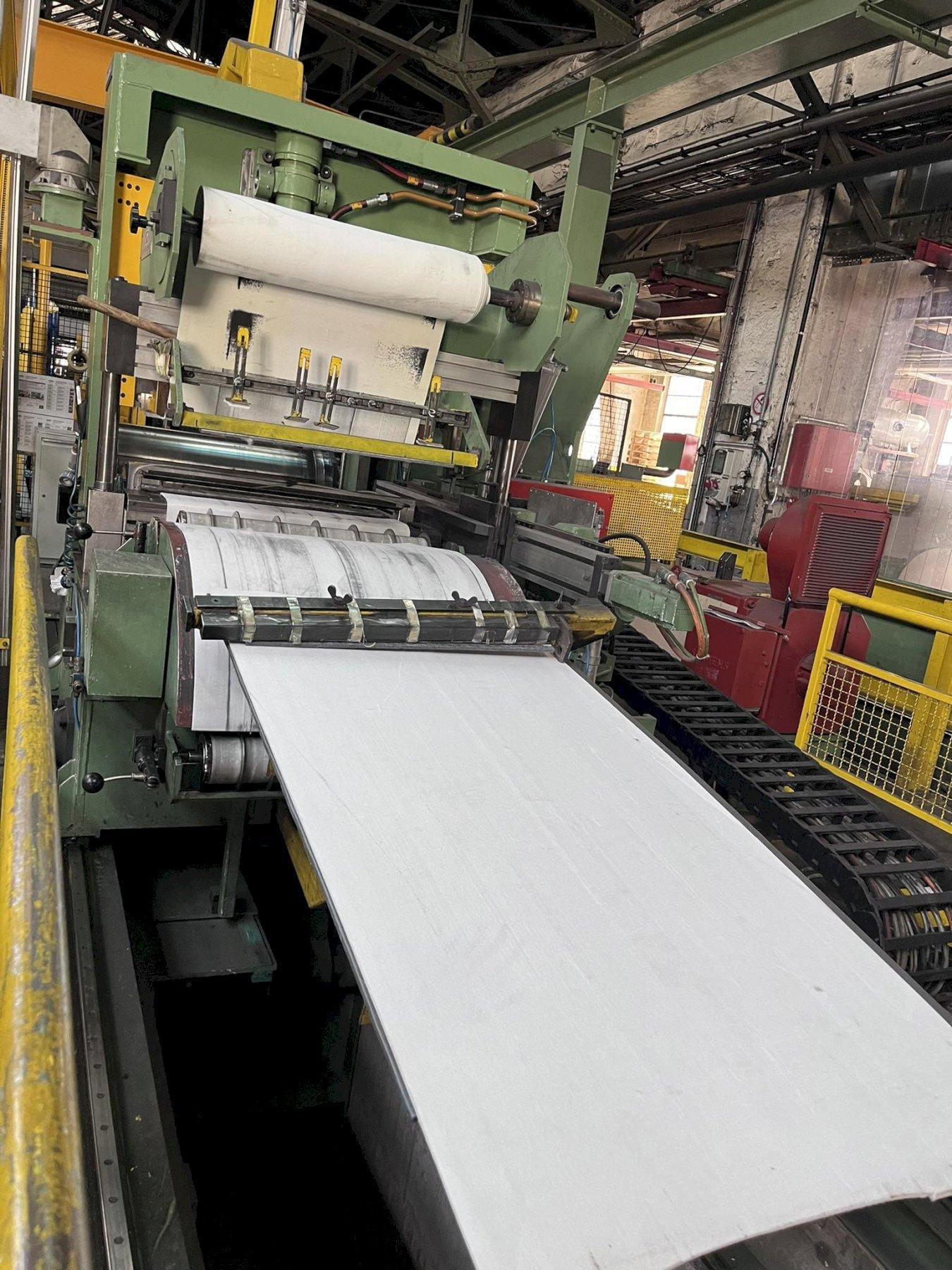

BURGHART & SCHMIDT TRAVELING TENSION STAND
5.5kW,
OVER PIT
STRIP SEPARATOR KNIFE GUIDE

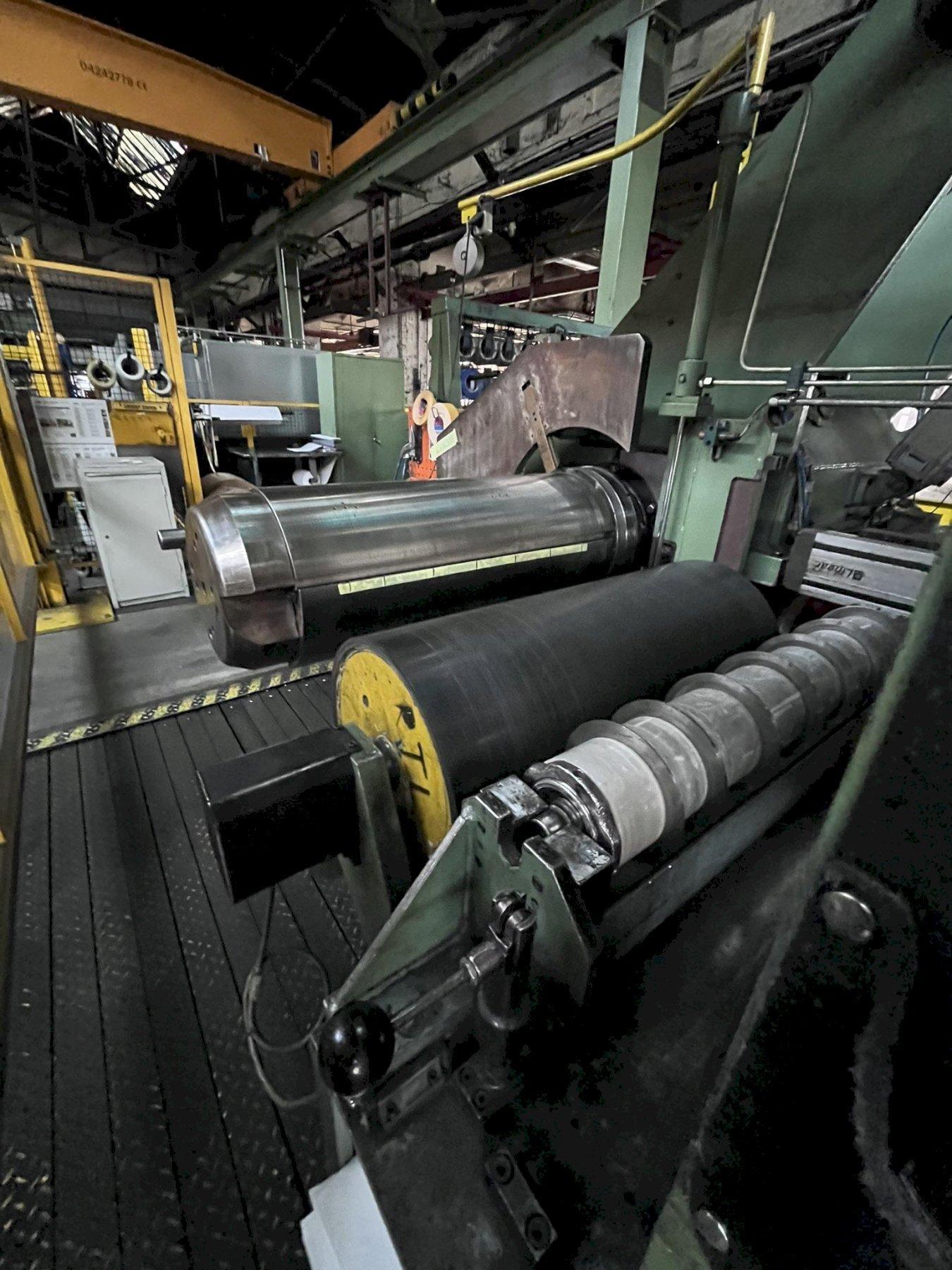

BRIDLE ROLL

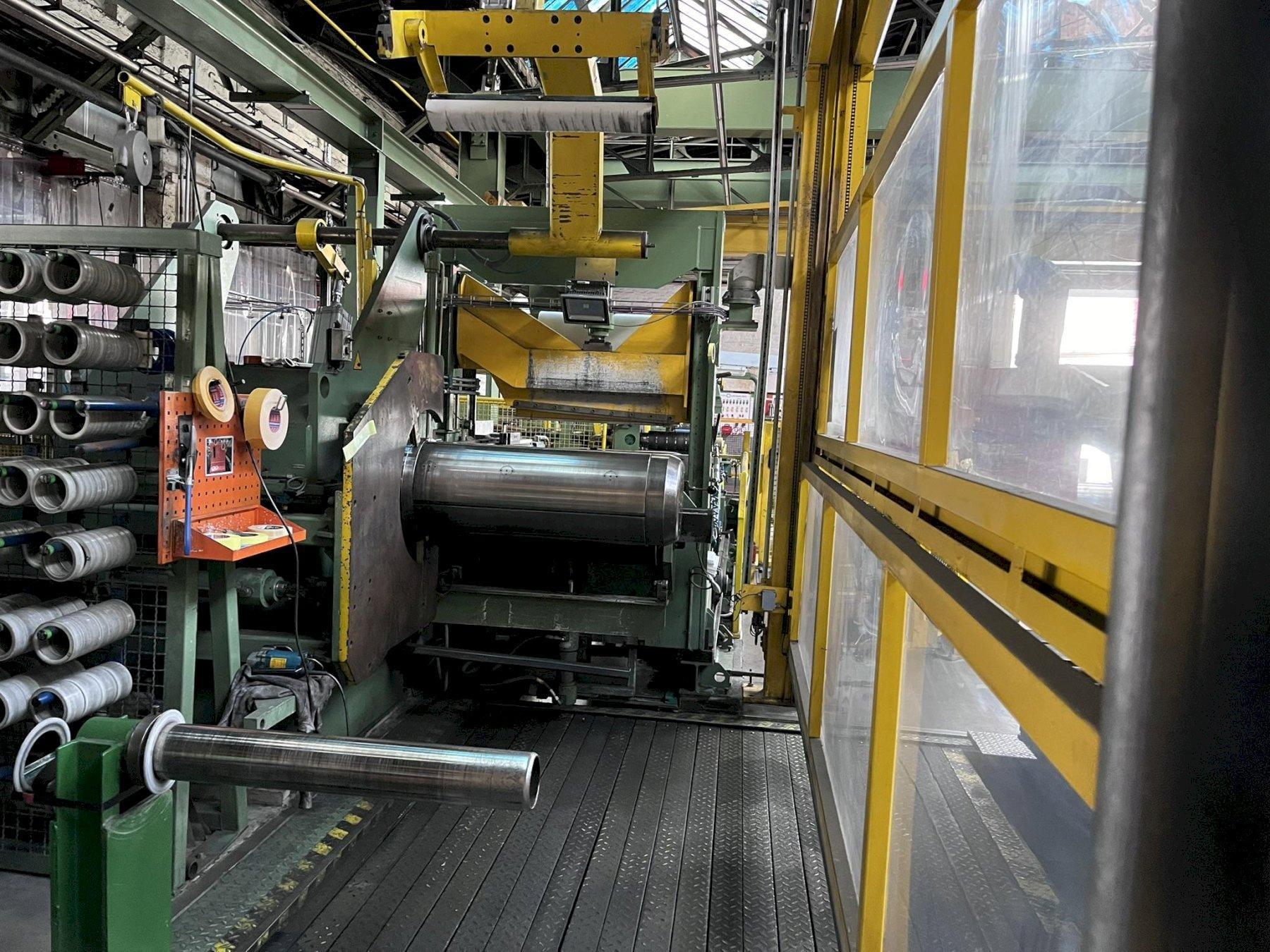

RECOILER
MANDREL DIMENSIONS....750MM X 300 / 400 / 500MM
MAX COIL OD:.........2000MM
MOTOR.............170kW, 1150RPM
HYDRAULIC PUSH OFF PLATE

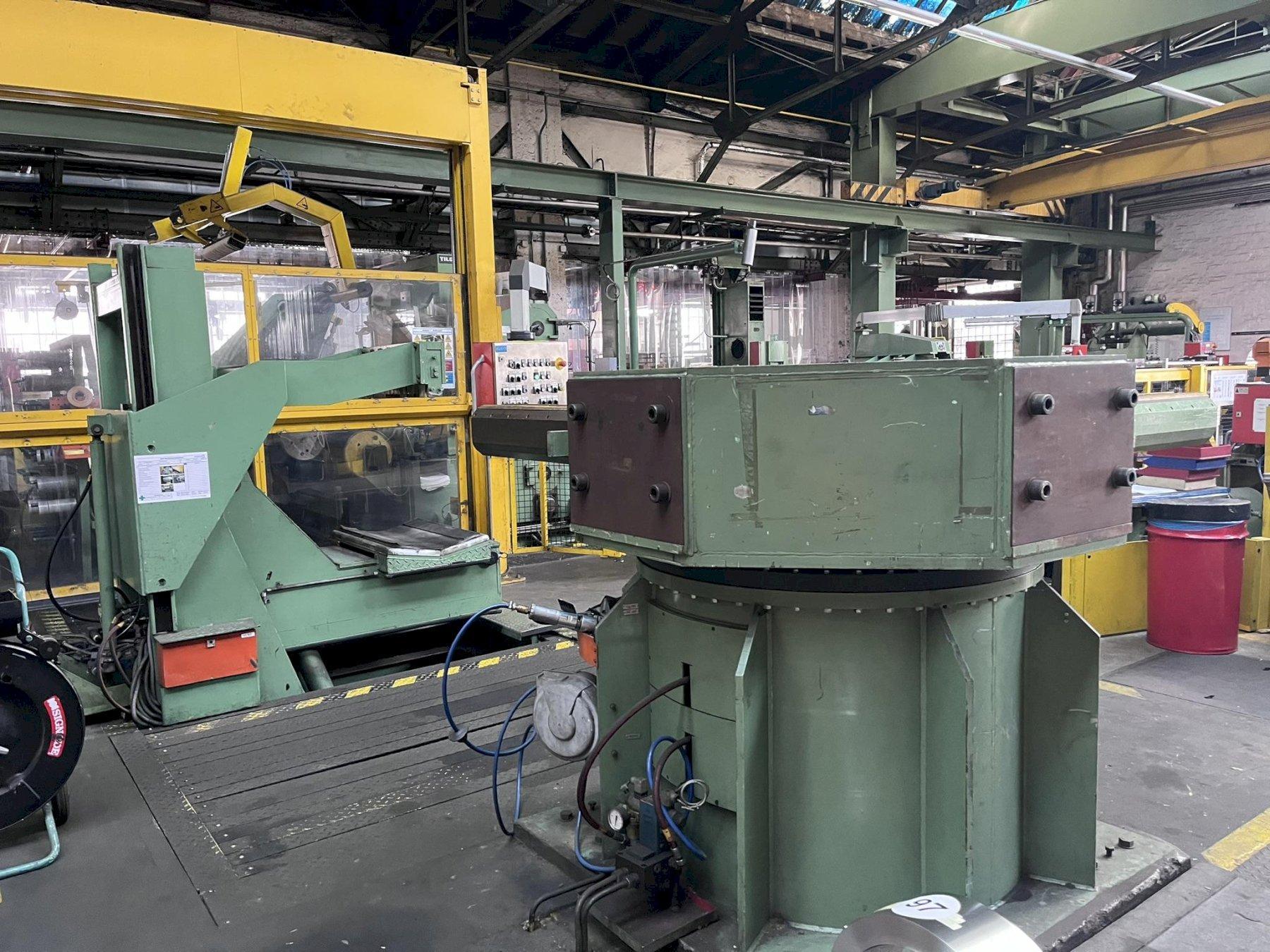

TURNSTILE
SNUB / CONTROL OVERARM

PAPER WINDER

COIL CAR, "L" SHAPE WITH KEEPER

2 ARM TURNSTILE (BUILT AND MACHINED FOR 2 MORE ARMS)

MISCELLANEOUS

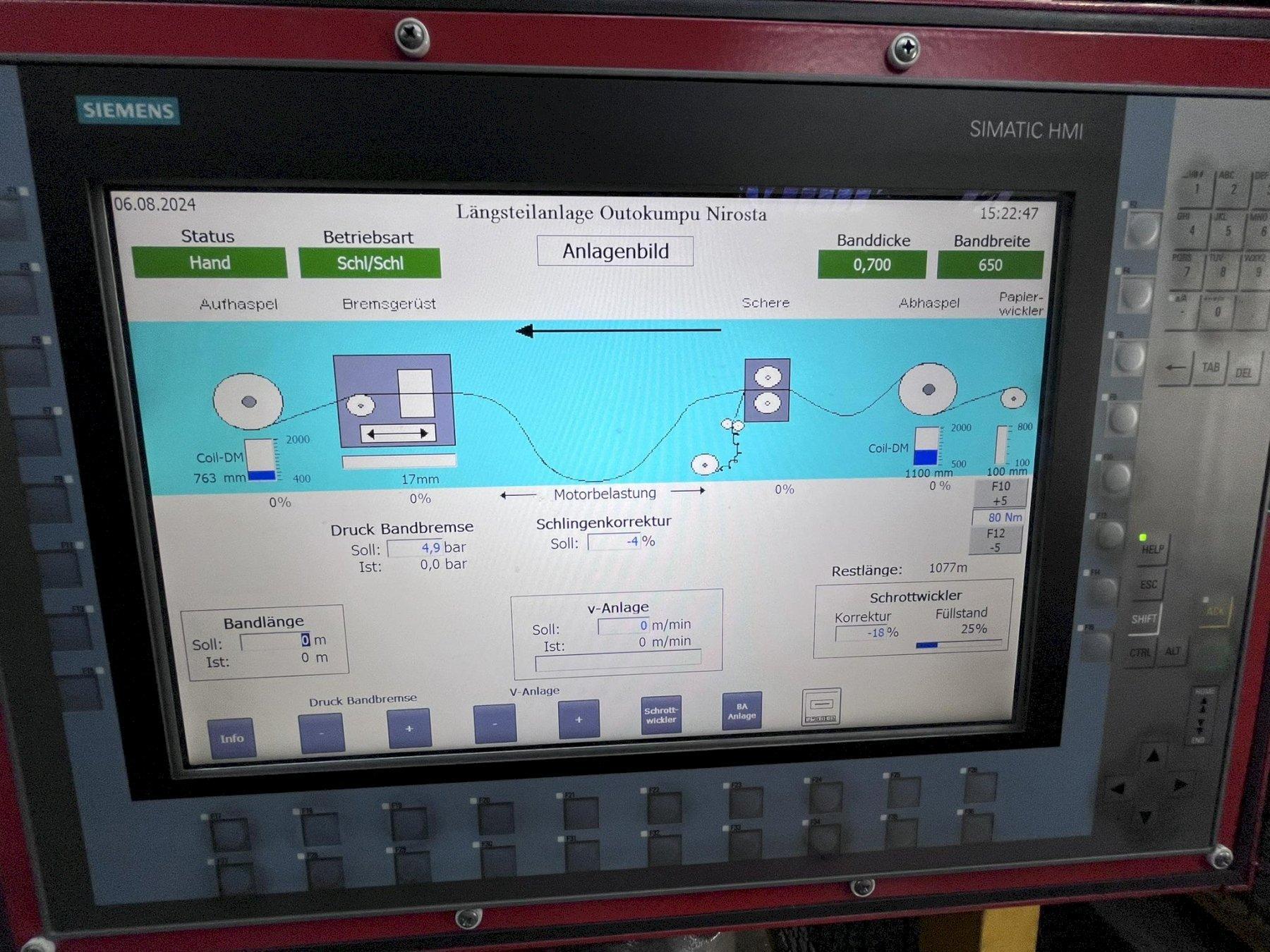

OPERATOR CONTROL PULPITS

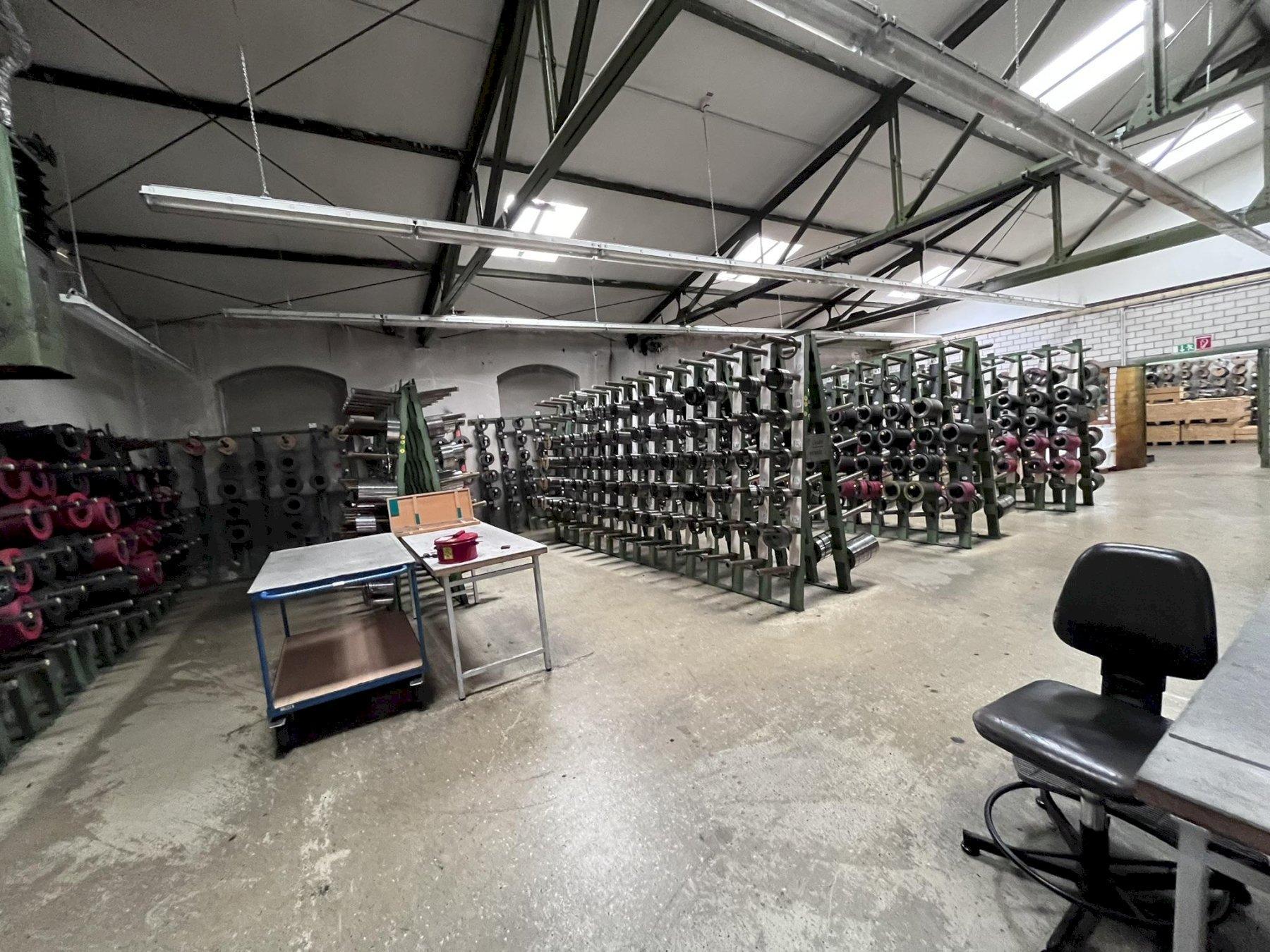

LARGE SELECTION OF KNIVES AND SPACERS
