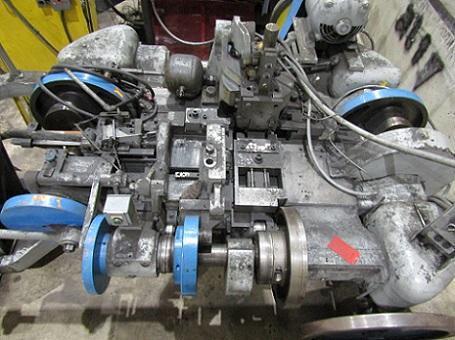

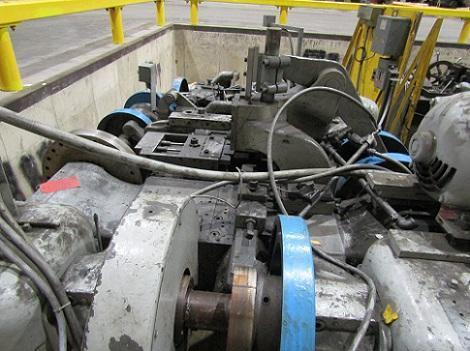

US BAIRD NO. 8 FOUR SLIDE MACHINE

Request Quote Share Listing | Print Specs

Model: Not Specified

Year: Not Specified

Stock #: 116644

Highlights: S/N SPECS 2YYY +18%BP JV PO# EWR-7160 RA/BQ 11/21/24 LOT#259 PRICE FROM CFC WIRE FORMS INC THROUGH WINTERNITZ AUCTION JV VICTORY MACHINERY 50%

Specifications

Request Quote Share Listing | Print Specs

Equipped With

US BAIRD #8 FOUR SLIDE MACHINE

MAX. WIRE DIAMETER MILD STEEL: 1/2"

STANDARD WIDTH RIBBON METAL: 1 1/2"

ROLL STRAIGHTENER: 6 - 14

MAXIMUM FEED WITH STOPS: 20" (24" FEED YOUNGER MACHINE

MAXIMUM FEED WITHOUT STOPS: 21 3/4"

STANDARD SLIDE STROKES:

FRONT 2 1/2"

REAR 2 1/2"

SIDE 5"

BED OPENING LEFT TO RIGHT: 11 1/4"

BED OPENING FRONT TO BACK: 9"

FLOOR SPACE: 140" X 88"

NET WEIGHT: 12000 LBS

Machine Information

US BAIRD NO. 8 FOUR SLIDE MACHINE

Stock #: 116644

Equipped With

US BAIRD #8 FOUR SLIDE MACHINE

MAX. WIRE DIAMETER MILD STEEL: 1/2"
STANDARD WIDTH RIBBON METAL: 1 1/2"
ROLL STRAIGHTENER: 6 - 14
MAXIMUM FEED WITH STOPS: 20" (24" FEED YOUNGER MACHINE
MAXIMUM FEED WITHOUT STOPS: 21 3/4"
STANDARD SLIDE STROKES:
FRONT 2 1/2"
REAR 2 1/2"
SIDE 5"
BED OPENING LEFT TO RIGHT: 11 1/4"
BED OPENING FRONT TO BACK: 9"
FLOOR SPACE: 140" X 88"
NET WEIGHT: 12000 LBS
