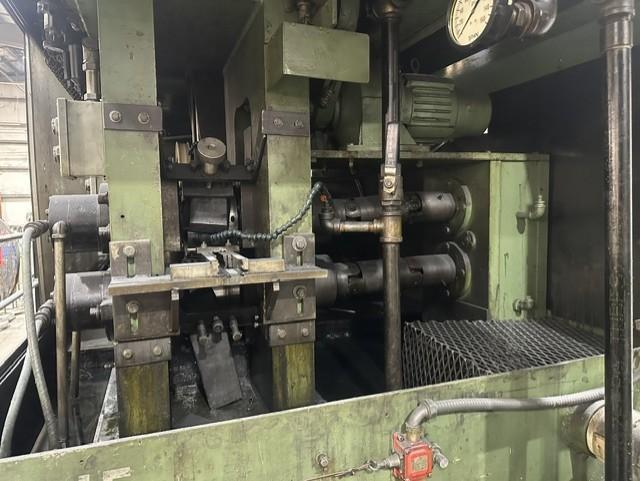

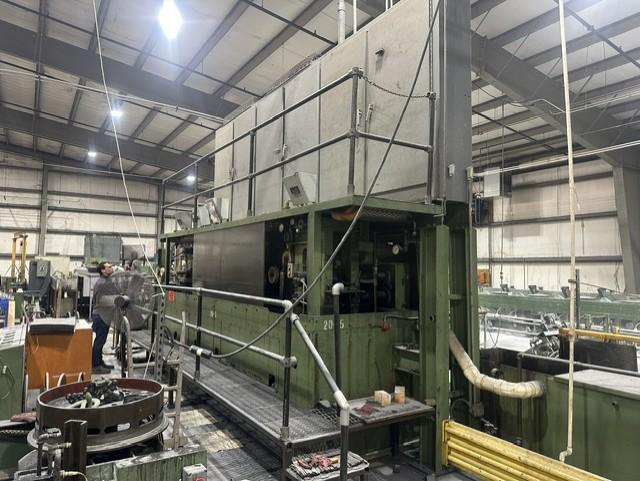

Type: Wire Flattening Mills
Manufacturer: FENN
Highlights: S/N N/A SPECS PER: (BE/JG),(5/27/26) WIYYY (PKG 5) PO#:EWR-7244 (5/27/26) BE/JG PRICE: FROM: THE NATIONAL ELECTRIC WIRE COMPANY THRU: THE BRANFORD GROUP J/V: THE BRANFORD GROUP LOC: ONSITE
NUMBER OF STANDS – 3
ROLLS PER STAND – 2
STAND NUMBER 1 – 8” X 2” ROLLS
STAND NUMBER 2 – 7” X 2” ROLLS
STAND NUMBER 3 – 7” X 2” ROLLS
ENTRY WIRE DIAMETER - .400” DIAMETER
FIRST PASS – .265” THICK X .400” WIDE
FINISH THICKNESS (10 PASSES) - .400” X 0.010”
MAX SPEED – 1000 FPM (PER CONTROL GAUGE ON OPERATOR STAND)
CARBIDE ROLLS – EACH STAND
POWERED SCREW DOWN – EACH STAND
MOTOR – (1) 75 HP DC DRIVE MOTOR, (2) 50 HP MOTORS
INTERMEDIATE EDGING GUIDES – 2 W/ 1 HP MOTOR

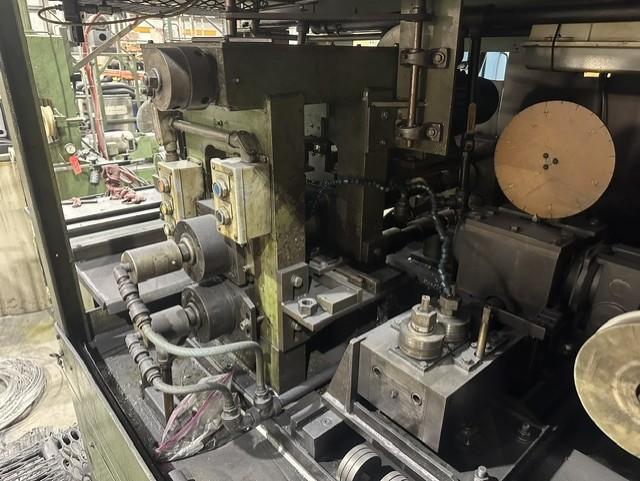

TURKSHEAD SHAPING STATION – YES
CIRCULATION SYTEM – YES
THICKNESS & WIDTH GAUIGES – YES, PRATT WHITNEY
MILL COOLANT – ROLLING MILL OIL

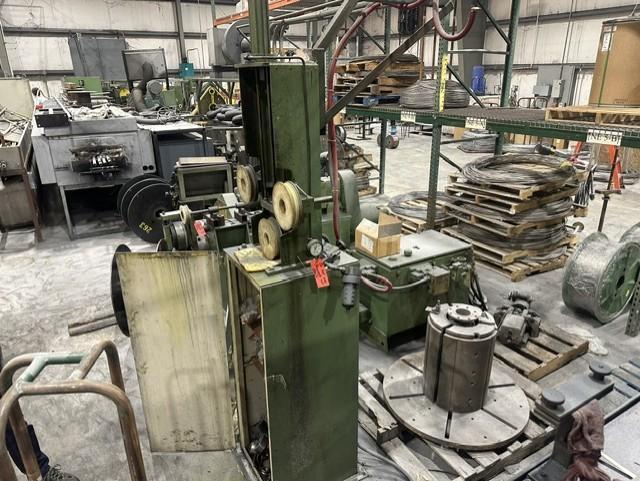

TENSIONS STAND WITH DANCER ROLL – YES
ELECTRICS & CONTROL PANEL
INCLUDES:

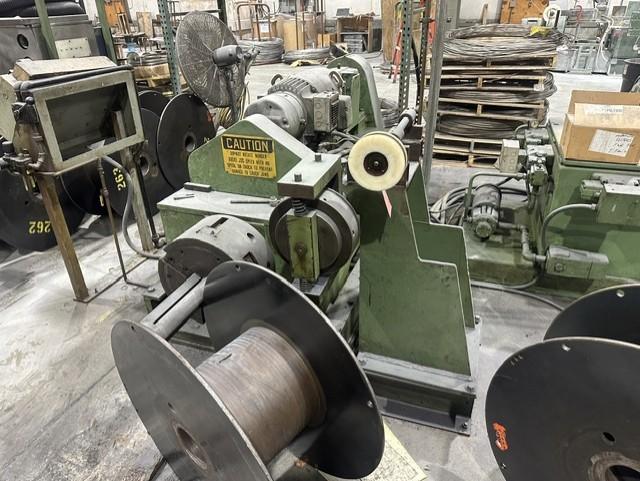

WATBERBURY-FARREL SPOOL PAYOFF W/ INGROUND V-TYPE COIL CAR (1980)

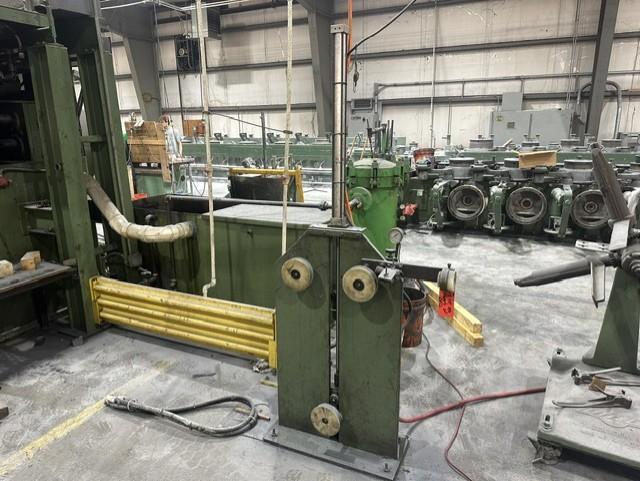

ENTRY DANCER ROLL

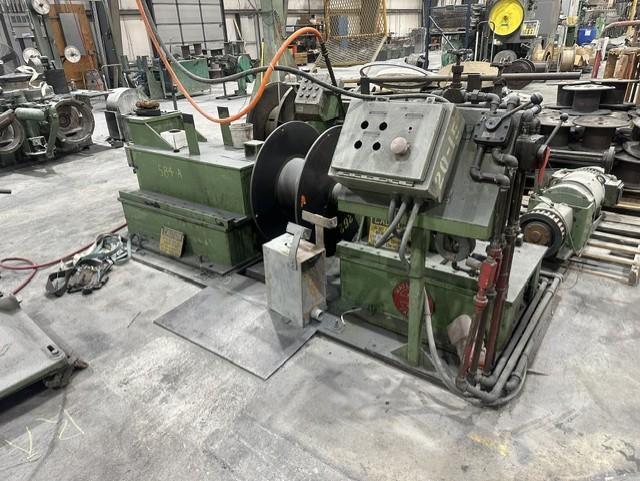

WATERBURY FARREL TRAVERSING TAKE-UP / RECOILER REEL (1980)
|
Stock #: 117278
NUMBER OF STANDS – 3
ROLLS PER STAND – 2
STAND NUMBER 1 – 8” X 2” ROLLS
STAND NUMBER 2 – 7” X 2” ROLLS
STAND NUMBER 3 – 7” X 2” ROLLS
ENTRY WIRE DIAMETER - .400” DIAMETER
FIRST PASS – .265” THICK X .400” WIDE
FINISH THICKNESS (10 PASSES) - .400” X 0.010”
MAX SPEED – 1000 FPM (PER CONTROL GAUGE ON OPERATOR STAND)
CARBIDE ROLLS – EACH STAND
POWERED SCREW DOWN – EACH STAND
MOTOR – (1) 75 HP DC DRIVE MOTOR, (2) 50 HP MOTORS
INTERMEDIATE EDGING GUIDES – 2 W/ 1 HP MOTOR
TURKSHEAD SHAPING STATION – YES
CIRCULATION SYTEM – YES
THICKNESS & WIDTH GAUIGES – YES, PRATT WHITNEY
MILL COOLANT – ROLLING MILL OIL
TENSIONS STAND WITH DANCER ROLL – YES
ELECTRICS & CONTROL PANEL
INCLUDES:
WATBERBURY-FARREL SPOOL PAYOFF W/ INGROUND V-TYPE COIL CAR (1980)
ENTRY DANCER ROLL
WATERBURY FARREL TRAVERSING TAKE-UP / RECOILER REEL (1980)
